SECTION 8
PROPANE SYSTEM
INSTALLING PROPANE CYLINDER(S)

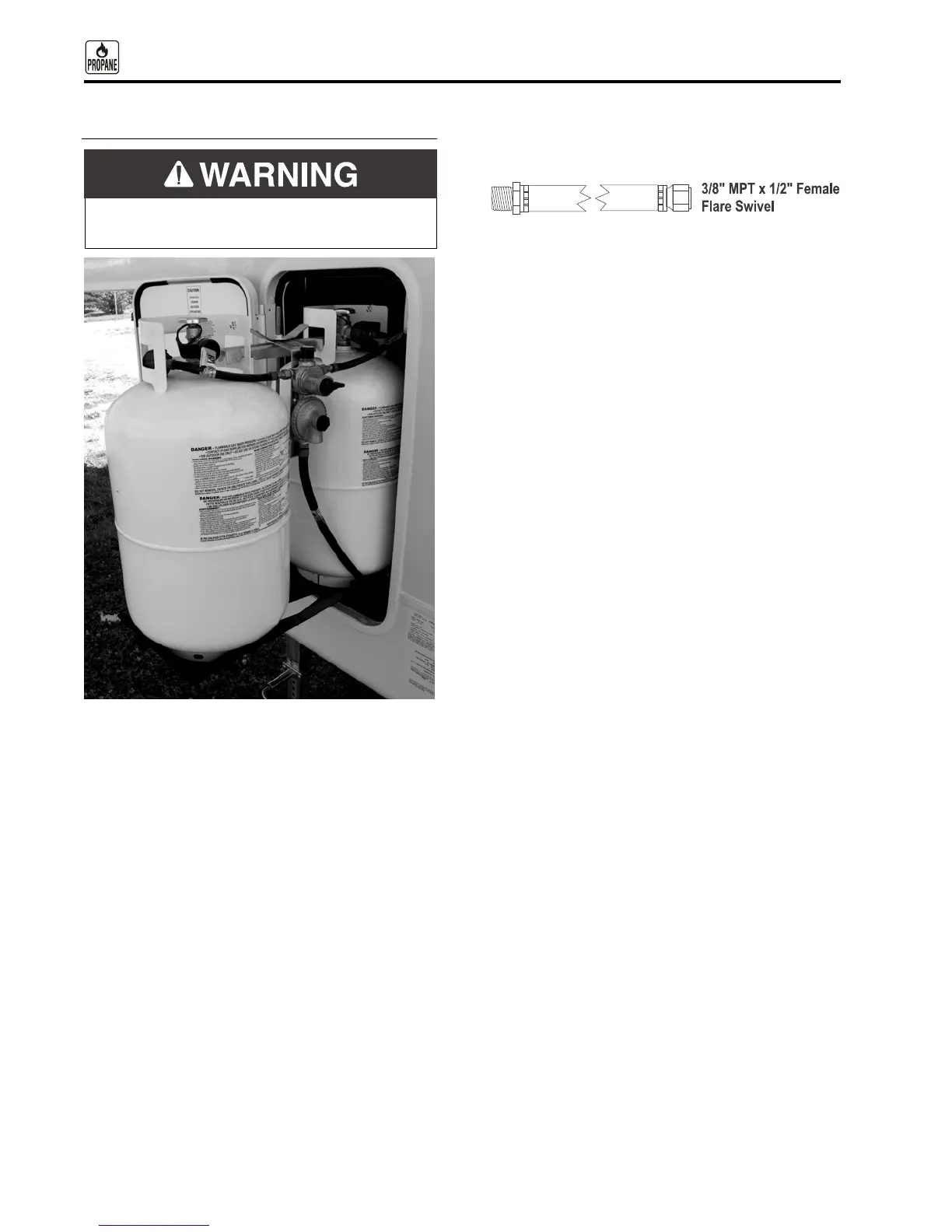

Fig. 8.5 Two propane cylinders
1. Connect the 3/8” low-pressure hose to the
outlet of the two-stage regulator.
2. Place the cylinders on the bracket in the
recess compartment or housing and
secure them so the outlets of the cylinder
valves are facing the “sidewalls” of the
compartment or housing (opposite of each
other).
3. Mount the regulator on the center back
wall of the compartment or housing so the
vent is pointed downward.
4. Attach the1/4” inverted flare x 18” Type-1
pigtail hose to the regulator inlet and the
right hand swivel nut to the cylinder valve.
Main Supply Hose – Low Pressure
Attach the main supply hose from the
regulator to the brass manifold fitting in the
frame of the trailer. The swivel brass nut on
the main hose will be your final attachment.
Several things to remember each time the
propane container is removed:
Fig. 8.6 Main supply hose
1. Check that ALL fittings are tight.
2. Check that ALL connections are tested
with a propane leak detector (or soapy
water) solution.
3. Open the main valve slowly to avoid a fast
rush of propane to the excess flow valve
causing propane freeze up. If you
experience a propane “freeze-up,” close
the main valve and wait at least fifteen
(15) minutes before trying again. Refer to
the regulator OEM operator’s manual.
4. Listen carefully - a “hissing” sound longer
than one second may indicate a propane
leak. If you feel there may be a leak
present, close the valve and contact your
dealer or qualified propane technician for
repair assistance.
Replace all protective covers and caps on the
propane system after filling. Make sure the
valve is closed and the compartment door is
securely latched.
Propane container overfill
Never overfill your propane container above
the liquid capacity indicated on the container.
If a container is overfilled, liquid gas may flow
through the gas regulator, causing it to freeze
and/or introduce dangerous excessive gas
pressure into the lines. In addition, an
overfilled container placed in hot sunlight may
expel excessive gas through the relief valve
and be susceptible to ignition by any nearby
open flame or spark.
If you do overfill the propane container,
contact your dealer or a qualified propane
technician for assistance immediately. Do not
attempt to service a propane container overfill
yourself.
Maintenance
Propane gas is normally non-corrosive - you
need not worry about the inside of your
container. However, the outside should be
kept free from rust by a periodic coat of paint
Ensure that all fasteners are secured
before traveling.
60
