12-4
RECLINER CHAIR (IF SO EQUIPPED)
Like a residential recliner, the recliner has side controls allowing you to recline the
chair. To reverse the recliner chair back to the upright position, depress the side
control and gently apply pressure to the recliner leg rest. Refer to the furniture
manufacturer’s care instructions for this product.
FREE-STANDING TABLE & CHAIRS (IF SO EQUIPPED)
The free-standing dinette table can be positioned to seat up to four people. To
prevent damage, the standard free-standing dinette chairs should be fastened
securely at the dinette table when you are traveling
BOOTH DINETTE (IF SO EQUIPPED)
The dinette is designed to seat up to four adults. You can access the dinette
bench storage by removing all the cushions and lifting the bottom seat supports. If
the dinette bottom seat support is screwed shut, it is to protect factory-installed
equipment (do not use that area for storage). To convert back to a booth dinette,
reverse the process.
The booth dinette can be converted into a bed. To convert, remove all the
cushions from the booth dinette. Lift the tabletop, remove the detachable table
legs and place the tabletop on the ledges provided between the booth dinette
benches.
Lay the seat back cushions against the back of the booth dinette bench. Lay the
dinette seat bottom cushions in between the seat back cushions. The area where
the cushions meet should be slightly raised. Push the raised cushion ends down
gently. The cushions are designed to fit snugly. Reverse this process when
converting back to the booth dinette.

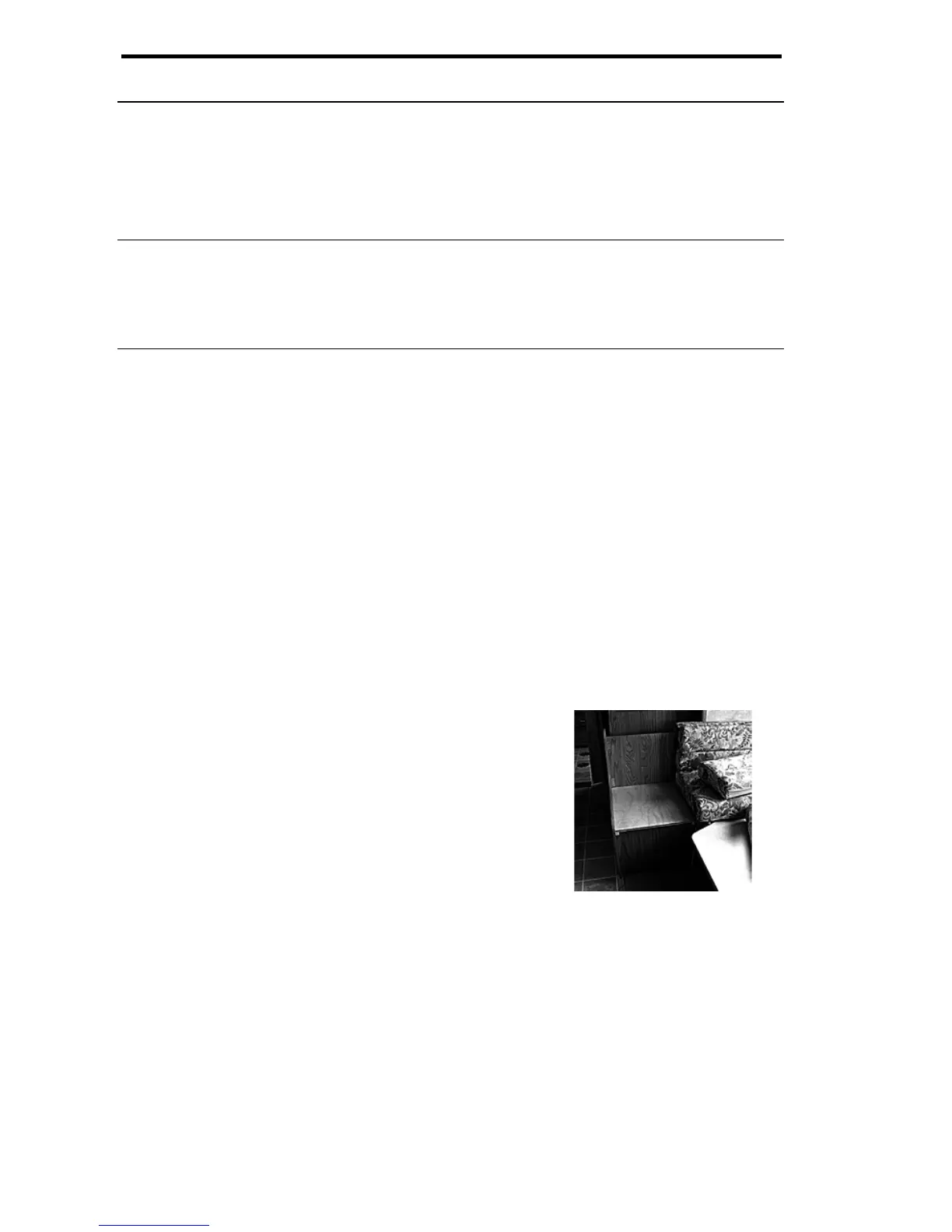

Extendable dinette (if so equipped)
Your travel trailer may be equipped with side extensions on the dinette benches
that can be used only when the slideout is extended.
1. Remove the snap strap (located at the back of
the dinette bench) that secures the extensions in
the travel position.
2. Pull out the dinette bench extension until it hits
the factory-installed stops.
3. Remove the seat, seat back cushion and plywood
seat extender from the revealed storage
compartment (put the cushions off to the side).
4. Position the plywood seat extender across the
dinette bench extension brackets. The plywood
seat extender MUST be in place to use the extendable dinette.
5. Place the seat and seat back cushions on the extensions and repeat the
process for the other dinette bench extension.
To close the extendable dinette, reverse the process. The extendable dinette must
be closed, the snap strap secured and the tabletop put in the bed position
BEFORE the slideout room is retracted for transit.
