Jayco Finch 1983 - Page 21

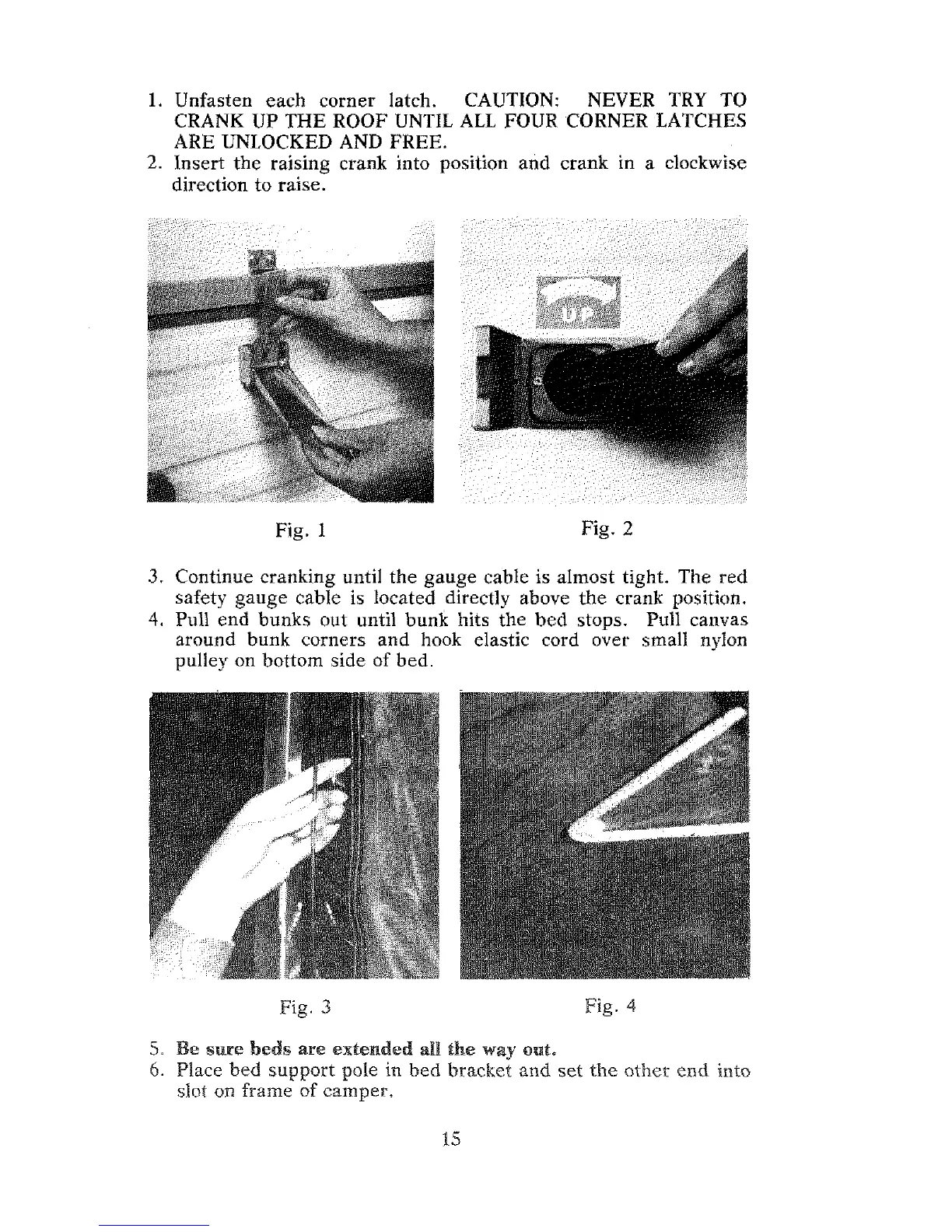

1. Unfasten each corner latch. CAUTION: NEVER TRY TO
CRANK UP THE ROOF UNTIL ALL FOUR CORNER LATCHES
ARE UNLOCKED AND FREE.
2. Insert the raising crank into position and crank in a clockwise
direction to raise.
Fig. 1 Fig. 2
3. Continue cranking until the gauge cable is almost tight. The red
safety gauge cable is Iocated directly above the crank position.
4. Pull end bunks out until bunk hits the bed stops. Pull canvas
around bunk corners and hook elastic cord over small nylon
pulley on bottom side of bed.
Fig. 3 Fig. 4
the way oat.
4. Place bed support pole in bed bracket and set the other end into
slut on frame of camper.
