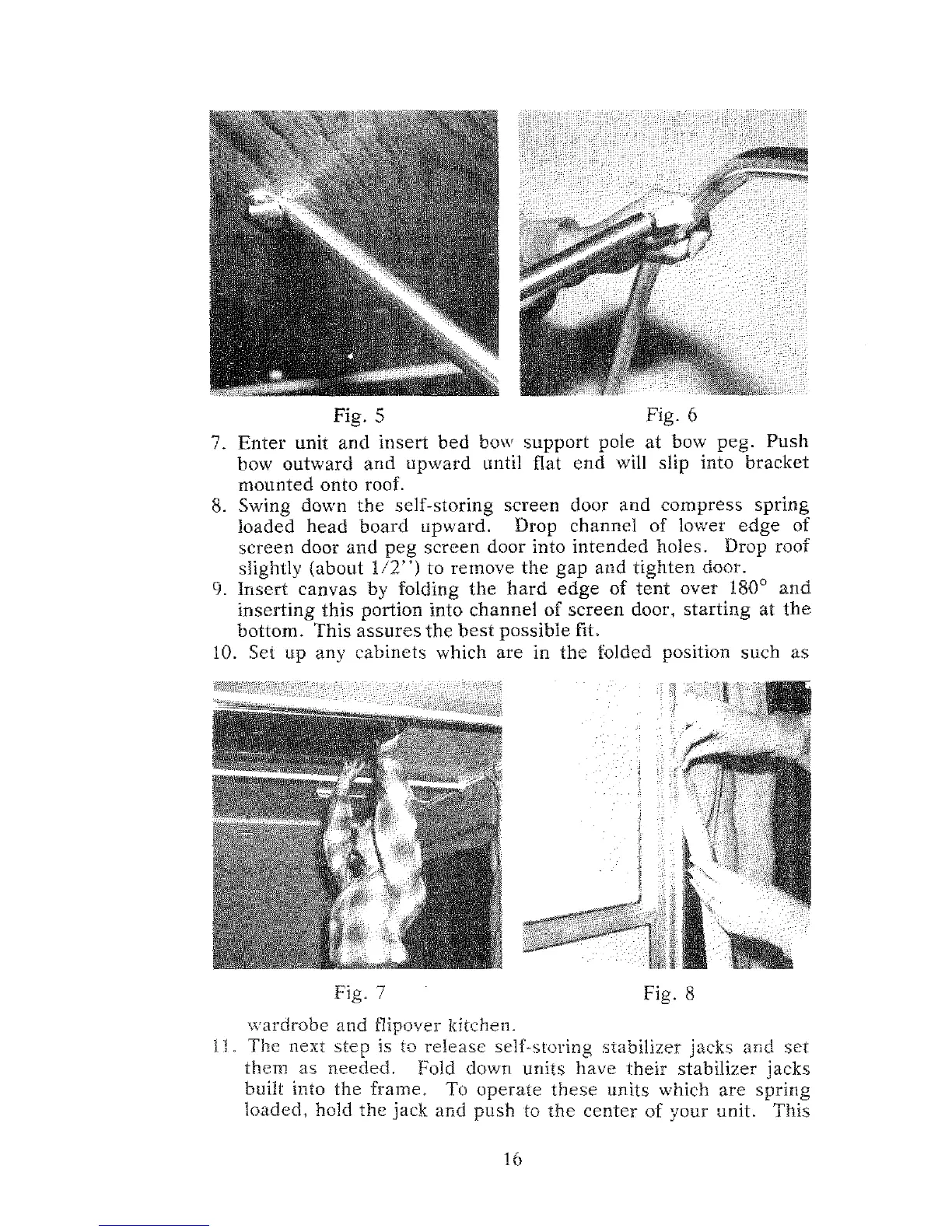

Fig. 5 Fig. 6
7. Enter unit and insert bed bow support pole at bow peg. Push
bow outward and upward until flat end will slip into bracket
mounted onto roof.
8. Swing down the self-storing screen door and compress spring
loaded head board upward.
Drop channel of lower edge of
screen door and peg screen door into intended holes.
Drop roof
slightly (about 1/2") to remove the gap and tighten door.
9. Insert canvas by folding the hard edge of tent over 180" and
inserting this portion into channel of screen door, starting at the
bottom. This assures the best possible fit,
10. Set up any cabinets which Eire in the folded position such as
Fig. 7 Fig. 8
wardrobe and flipover kirchen.
11. The next step is io rclcasc scif-storing srabiiixnr jacks and set
them as needed.
Fold down units have their stabilizer jacks
built into the frame, To operate these units which are spring
loaded, hold tile jack and push to the center of your unit. This
