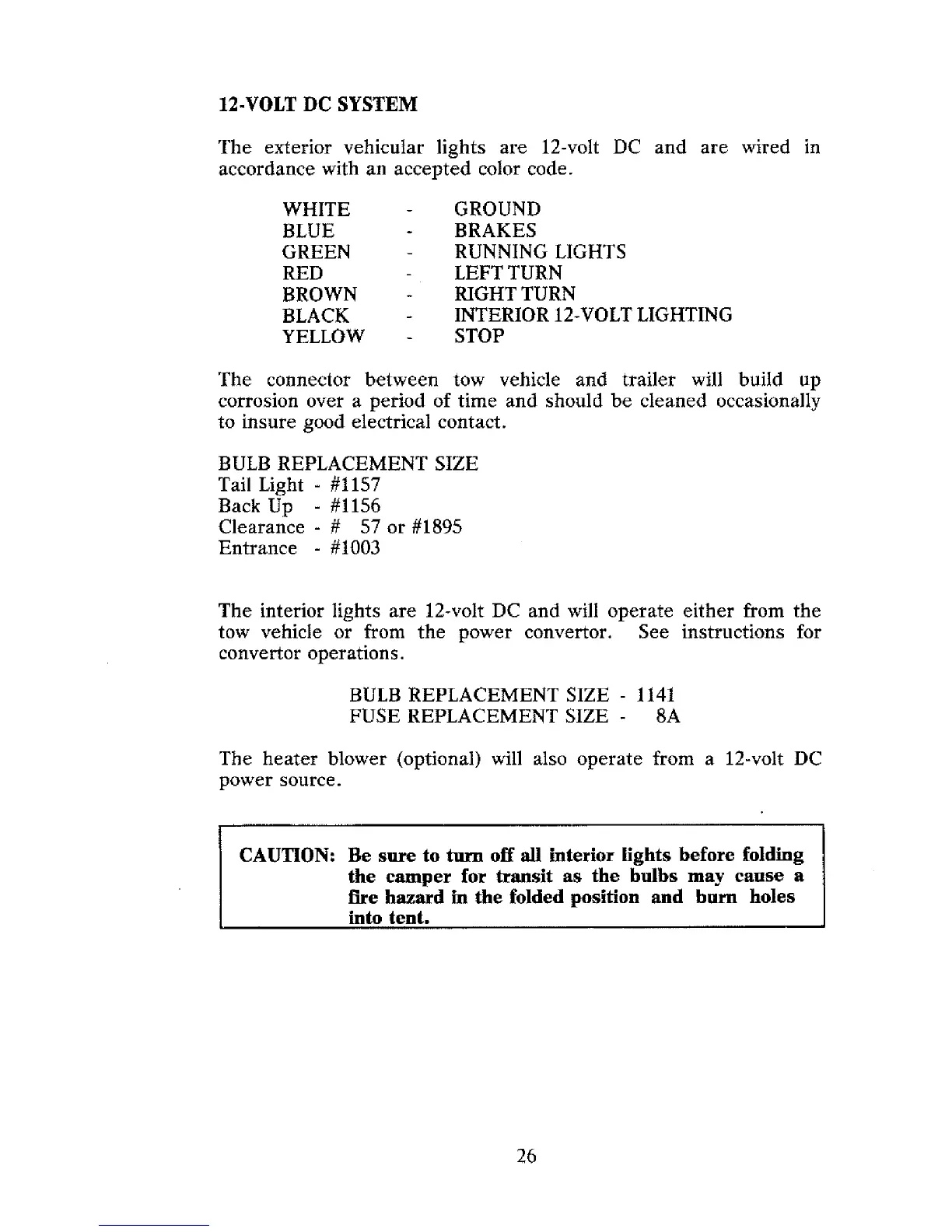

12-VOLT
DC
SYSTEM
The exterior vehicular lights are 12-volt
DC
and are wired in
accordance with an accepted color code.
WHITE
-
GROUND
BLUE
-
BRAKES
GREEN
-
RUNNING
LIGHTS
RED
LEFT
TURN
BROWN
-
RIGHT
TURN
BLACK
-
INTERIOR
12-VOLT
LIGHTING
YELLOW
-
STOP
The connector between tow vehicle and trailer
will
build
up
corrosion over a period of time and should be cleaned occasionally
to insure good electrical contact.
BULB REPLACEMENT
SIZE
Tail Light
-
#I157
Back
Up
-
#I156
Clearance
-
#
57 or #I895
Entrance
-
#I003
The
interior lights are 12-volt
DC
and will operate either from the
tow vehicle or from the power convertor. See instructions for
convertor operations.
BULB
REPLACEMENT
SIZE
-
11
41
FUSE
REPLACEMENT
SIZE
-
8A
The heater blower (optional) will also operate from
a
12-volt
DC
power source.
CAUTION:
Be
sure to
turn
off
all
interior
Lights
before
folding
the
camper
for
transit
as
the
bulbs
may
came
a
fire
hazard
in
the
folded
position
and
barn
holes
into
tent.
