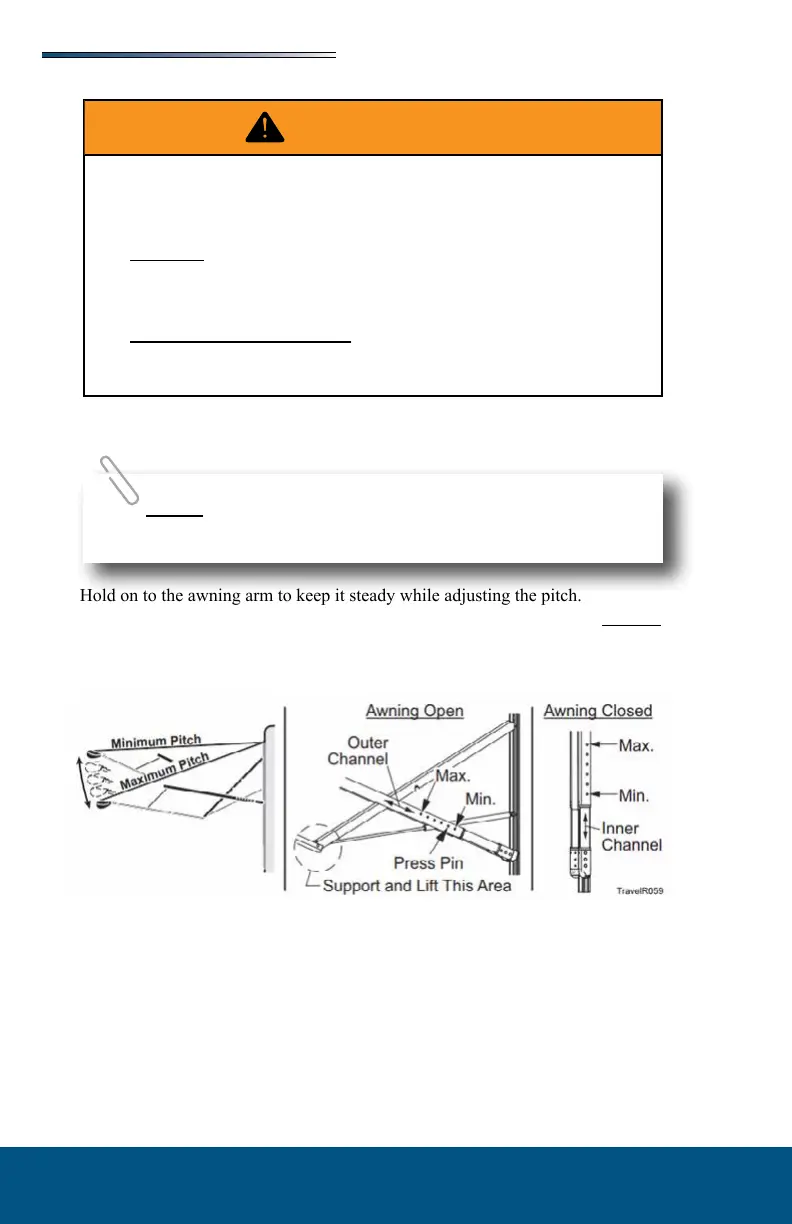

The longitude arms have 6 pitch adjustment settings. The awning can be extended and re-
tracted in any of these positions without resetting the pitch.
1. Hold on to the awning arm to keep it steady while adjusting the pitch.
2. Press in the pitch adjustment pins located on the scissor arm. Applying pres-
sure on the arm will decrease the force required to press the pitch adjustment pins.
3. Slide the scissor arm to the desired set hole – towards the coach for a lower pitch and
away from the coach for a higher pitch.
Operating the awning repeatedly over a short time period may cause the circuit to sense
an overheat condition and shut o the motor. If this occurs, wait approximately 15
minutes to allow the motor to cool then operate the awning in normal fashion.
Normal operation time is 28-35 seconds to extend or retract. If the power supply is on
the low side of the acceptable voltage range (10VDC– 14VDC) the awning will move
slower.
Always operate the awning according to the instructions.
Periodically check that the fasteners are tight (tighten if necessary).
Keep the awning fabric and arms clean.
Do not set the individual arm pitch at more than three (3) positions dier-
ent between the left and right arms. Damage to the arms and the canopy
can occur if the awning is retracted when the arms are set at more than
three (3) positions dierence.
The arms must be set at an equal pitch.
Damage to the arms and canopy can occur if the awning is retracted with
the arms uneven.
Use care when adjusting the pitch as the awning may move
abruptly.
