IMPORTANT:
THIS UNIT HAS BEEN DRAINED OF OIL FOR SHIPMENT. DO NOT ATTEMPT TO OPERATE WITHOUT ADDING OIL.
ABOUT THE PLATINUM
®
VACUUM PUMP
Each Platinum
®
vacuum pump has been factory tested to guarantee 15 micron* or better and listed CFM
performance. The serial number has been recorded. Complete and mail the Warranty Registration Card within
10 days of purchase to validate your warranty. There is also an option to register your product online at
www.jbind.com. Product videos and technical updates can be found at www.jbind.com.
NOTE Platinum
®
pumps are not to be used on Ammonia or Lithium Bromide (salt water) systems.
Pump maintenance is the responsibility of the owner.
PLEASE READ JB INDUSTRIES’ “KEEPING THE LIFE OF YOUR PUMP” BOOKLET THAT CAN BE FOUND ON JBIND.COM.
DUAL VOLTAGE (-250 series)
DV-42N-250 DV-85N-250 DV-142N-250 DV-200N-250 DV-285N-250
MOTOR
1/2 HP,
1725/1425 RPM
1/2 HP,
1725/1425 RPM
1/2 HP,
1725/1425 RPM
1/2 HP,
1725/1425 RPM
1/2 HP,
1725/1425 RPM
VOLTAGE
115v, 60Hz,
230v, 50Hz
115v, 60Hz,
230v, 50Hz
115v, 60Hz,
230v, 50Hz
115v, 60Hz,
230v, 50Hz
115v, 60Hz,
230v, 50Hz
US DOMESTIC
DV-42N DV-85N DV-142N DV-200N DV-285N
CFM
1.5 CFM (42 l/m) 3 CFM (85 l/m) 5 CFM (142 l/m) 7 CFM (200 l/m) 10 CFM (285 l/m)
MOTOR
1/2 HP, 1725 RPM 1/2 HP, 1725 RPM 1/2 HP, 1725 RPM 1/2 HP, 1725 RPM 1/2 HP, 1725 RPM
VOLTAGE
115v, 60Hz 115v, 60Hz 115v, 60Hz 115v, 60Hz 115v, 60Hz
INTAKE PORT
1/4" 1/2” x 1/4” x 3/8” 1/2" x 1/4" x 3/8" 1/2" x 1/4" x 3/8" 1/2" x 1/4" x 3/8"
OIL CAPACITY
26 oz (798 cc) 26 oz (798 cc) 21 oz (680) 21 oz (680) 26 oz (798 cc)
GAS BALLAST
VALVE
INTAKE
EXHAUST
OIL FILL PLUG
Do Not Wrench Down or
use Sealant on Threads
OIL DRAIN
VALVE
Close Drain Finger Tight
ISOLATION VALVE
or Blank-Off Valve

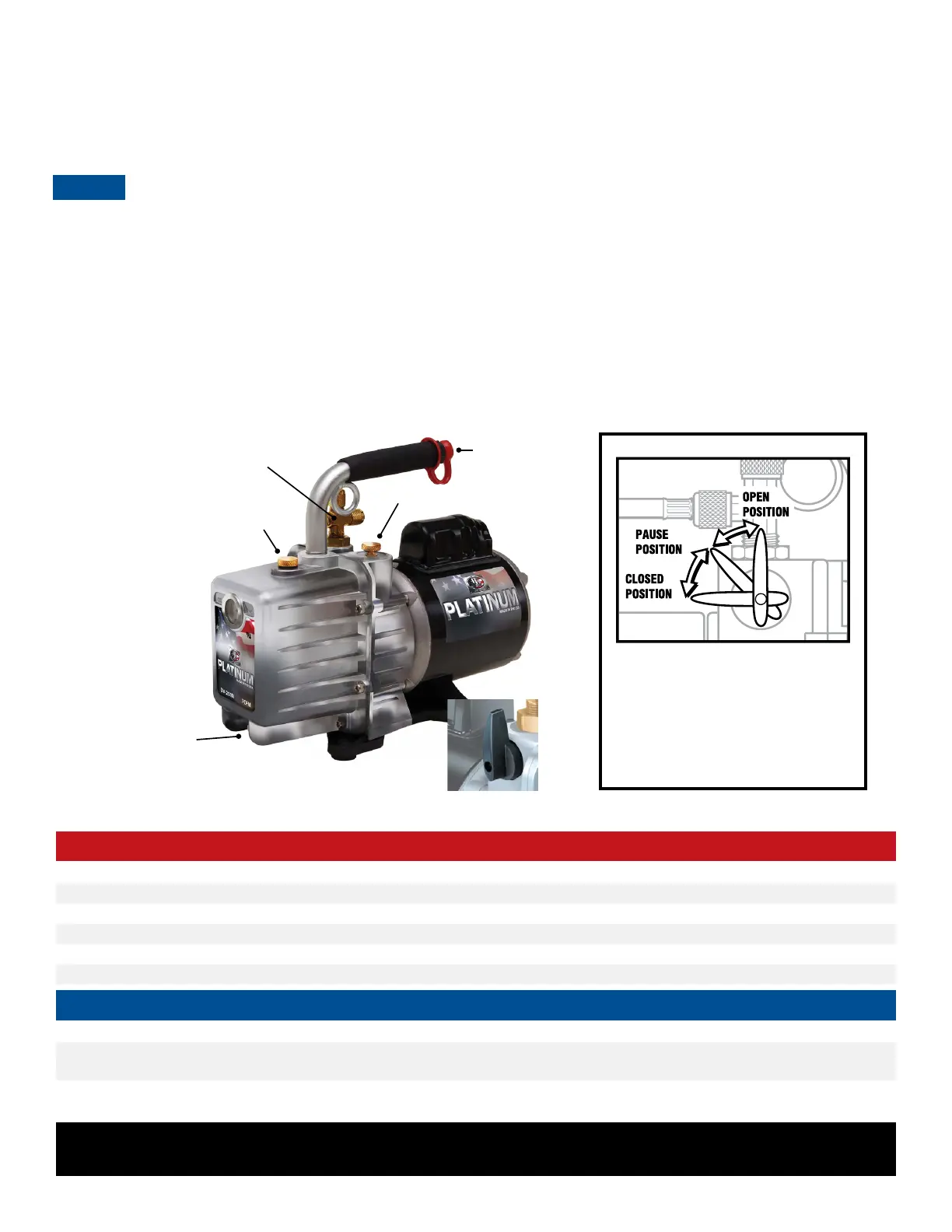

SPECIFICATIONS
PUMP MOTOR:
Vacuum pump and oil must be above 30°F. Line voltage must be equal to motor nameplate ±10%. Normal operating
temperature is approximately 160°F, which is hot to the touch. Line voltage and ambient conditions will affect
this somewhat. Motor has automatic resetting thermal overload protection. The Platinum
®
pump is designed for
continuous duty and will run for extended periods without overheating.
ISOLATION (BLANK-OFF) VALVE:
Quarter-turn on/off. No additional valve
needed to isolate system.
When checking pressure rise, slowly turn
handle counter-clockwise. Pause at 45°.
Valve is completely closed at 90°.
2
*25,400 MICRONS = 1 INCH OF HG.
