ENGLISH OPERATION MANUAL
JB SYSTEMS® 5/55 DSP6

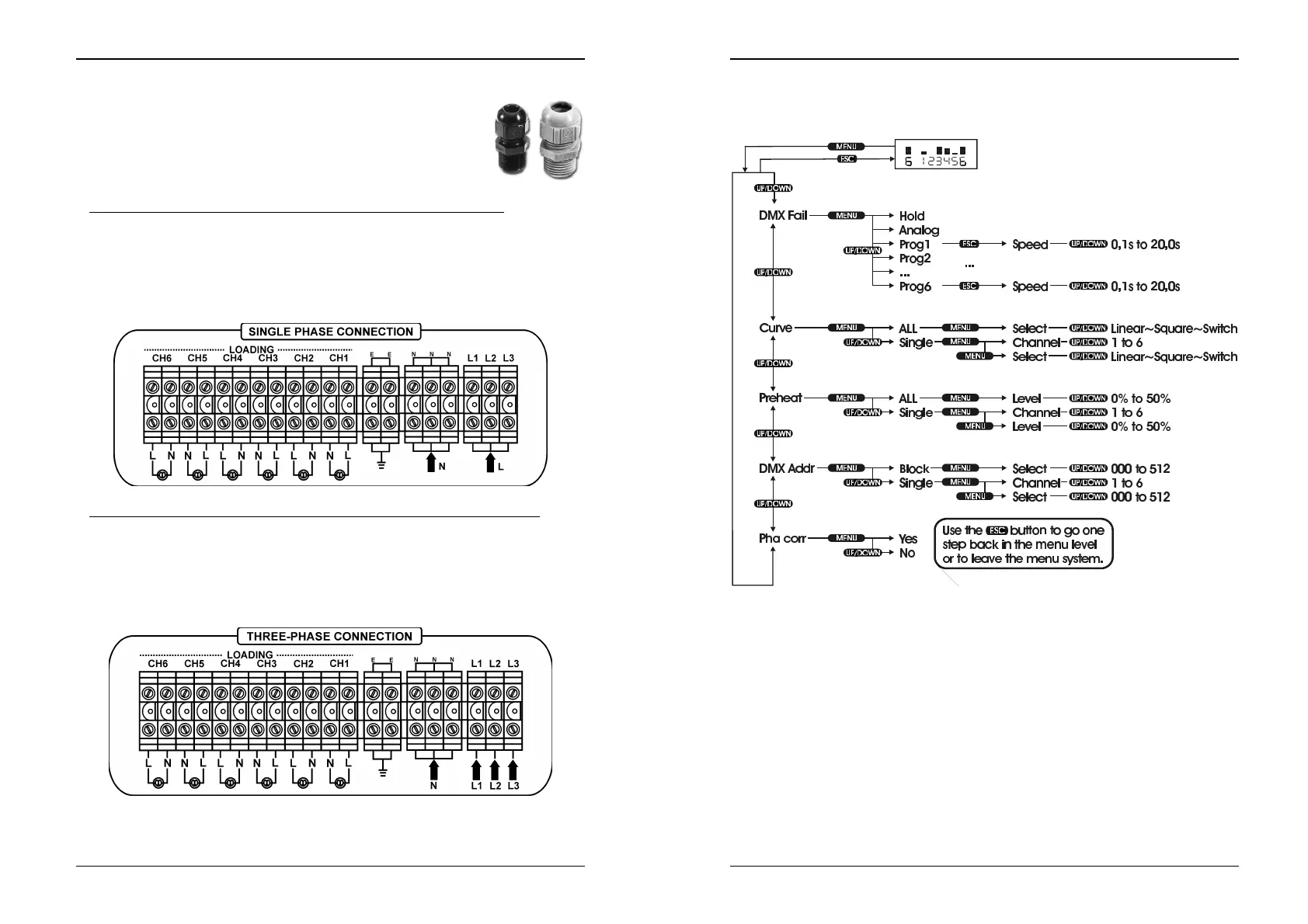

CONNECTIONS
This unit may only be installed by qualified personal, following the
rules for electrical installations in your country! After installation
always put the metal covers back in place and make sure to use
proper cable entry glands (see picture) to protect the wires from
unwanted traction and friction.
• SINGLE PHASE INSTALLATION (2 wires “L”+“N”+ earth wire “E”):
• Since you have only 1 phase wire (L) you must make bridges between the
L1/L2/L3 inputs and connect the phase wire to these inputs.
• Connect the neutral (N) to the N-input.
• Connect the loads to the output channels (2 connections, named “L” and “N”) All
connections named “N” are linked inside the DSP6.
• Don’t forget to connect the earth connection properly!
• THREE PHASE INSTALLATION (4wires “L1+L2+L3+N” + earth wire “E”):
• Since you have 3 phase wires you can connect these directly to the corresponding
L1/L2/L3 inputs.
• Connect the neutral (N) to the N-input.
• Connect the loads to the output channels (2 connections, named “L” and “N”) All
connections named “N” are linked inside the DSP6.
• Don’t forget to connect the earth connection properly!
ENGLISH OPERATION MANUAL
JB SYSTEMS® 6/55 DSP6
SETUP MENUS
Please refer to the overview below to fully understand the menu structure of the DSP6:
You can clearly see which buttons to push to select a certain function. In most cases
the DSP6 is in normal working condition (display shows channel output condition).
Push the “menu” button to enter the setup menus. With the “up/down” buttons you can
scroll through the 5 available menus. With the “esc” button you can go one step back
in the menu. After +/-30sec the DSP6 returns automatically to the normal working
mode.
In the next chapter you can read more about each function.
