jbc Advanced Series User Manual

ITALIANO
47

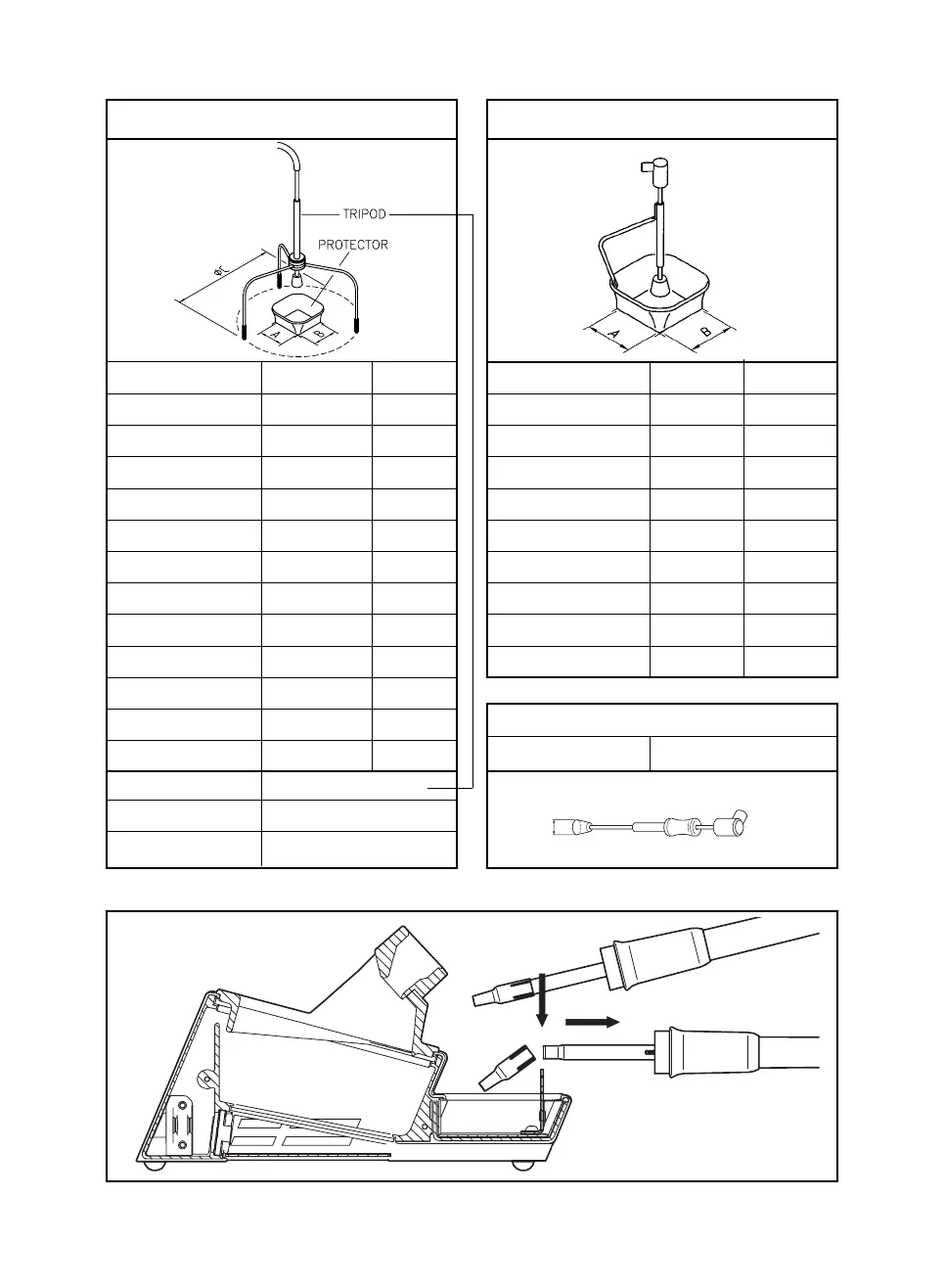

Fig. 1
PROTECTOR
Fig. 2
EXTRACTOR
PART Nº A/mm B/mm
*
00 / 0934035 9.0 13.0
*
00 / 0934040 9.5 19.0
0
*
0 / 0934080 9.5 21.0
*
32 / 0932220 10.0 10.0
*
00 / 0934045 10.5 21.0
*
00 / 0934090 11.0 16.0
*
24 / 0932235 12.0 17.0
*
44 / 0934000 12.5 12.5
*
00 / 0934025 13.5 21.5
*
48 / 0932230 15.0 15.0
*
60 / 0934010 17.0 17.0
*
00 / 0934030 18.5 18.5
PART Nº A/mm B/mm
*
52 / 0932052 20.0 20.0
*
64 / 0932064 20.0 26.0
*
80 / 0932184 24.0 24.0
68 / 0932068 27.0 27.0
0934020 28.5 28.5
0934015 31.5 31.5
84 / 0932084 33.0 33.0
100 / 0932100 38.0 38.0
124 / 0932124 45.0 45
MANUAL EXTRACTOR
.0 0932190 ø D/mm= 7
* Supplied with the station
TRIPOD ø C/mm
*
20 / 0932050 39
*
40 / 0932250 85
ø
DD
DD
D
09321900932190
09321900932190
0932190
Fig. 3
