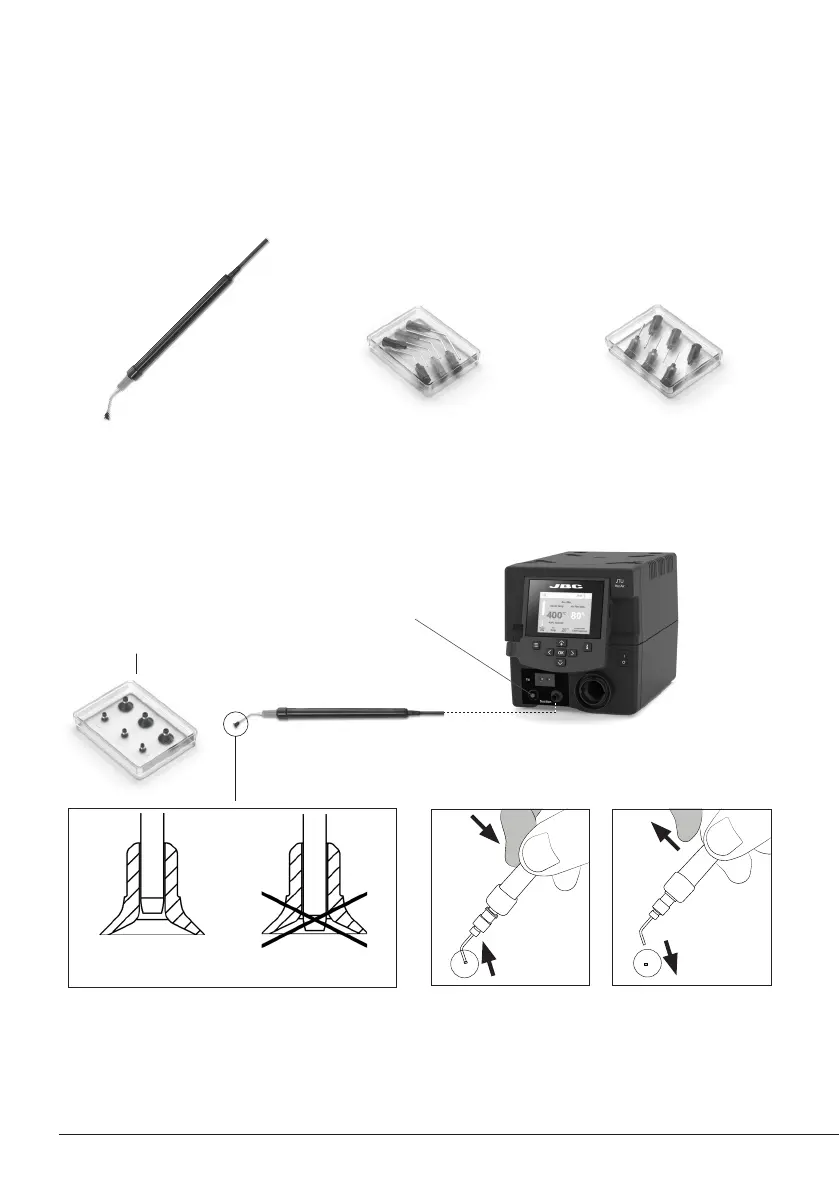

In case of a loosely fitting nozzle:
* Ref. Shape Ø Size
(mm)
Ø
Size (in)
* JN2020 Straight Ø 8 Ø 0.31
* JN8417 Straight Ø 10 Ø 0.4
* JN2015 Bent Ø 4 Ø 0.16
* JN2012 Bent Ø 6 Ø 0.24
* JN6633 Bent Ø 8 Ø 0.31
* JN7637 Flat 10 x 2 0.4 x 0.08
* JN7638 Flat 20 x 2 0.8 x 0.08
* JN7639 Flat 30 x 2 1.18 x 0.08
Straight Bent Flat
Ø Ø A x B
1. Push the nozzle tab inwards with a screw-
driver or flat-nosed pliers.
2. Insert the nozzle into the JT-TA again.
Turn the tool
off and handle with
care. The heating
element and the
nozzle are still hot.
Quick Nozzle Changer
Changing nozzles quickly and safely.
Compatible Nozzles
The JT-TA works with JT nozzles. Find the model that best suits your soldering needs in www.jbctools.com
2
1
