JBL a12 - Page 31

31
channel no. 1 pan
channel no. 2 pan fine
channel no. 3 tilt
channel no. 4 tilt fine
channel no. 5 control
channel no. 6 shutter
channel no. 7 dimmer
channel no. 8 zoom
channel no. 9 pattern
channel no. 10 CTC
channel no. 11 colour wheel
channel no. 12 speed pan/tilt
channel no. 13 speed effects
channel no. 14 blackout move
channel no. 15 red
channel no. 16 green
channel no. 17 blue
channel no. 18 white
channel no. 19 red
channel no. 20 green
channel no. 21 blue
channel no. 22 white
channel no. 23 red
channel no. 24 green
channel no. 25 blue
channel no. 26 white
channel no. 27 red
channel no. 28 green
channel no. 29 blue
channel no. 30 white
channel no. 31 red
channel no. 32 green
channel no. 33 blue
channel no. 34 white
channel no. 35 red
channel no. 36 green
channel no. 37 blue
channel no. 38 white

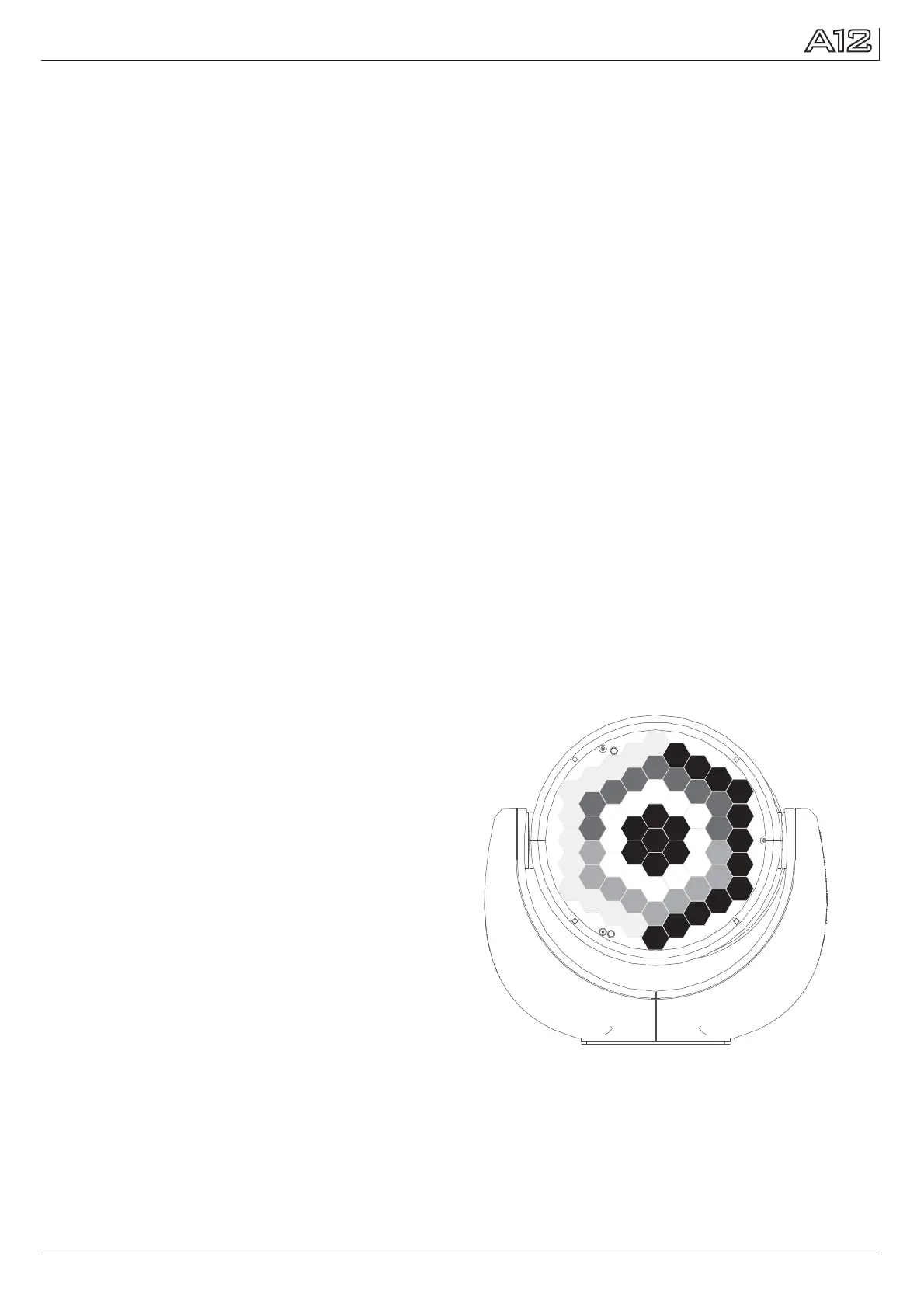

EXTENDED RGB 8 BIT (E8)
}
}
}
}
}
}
1. ring (A)
2. ring
3. ring (upper half - C)
3. ring (lower half - D)
4. ring (left half - E)
4. ring (right half - F)
A
B
C
D
E
F
(B)
