Inputs

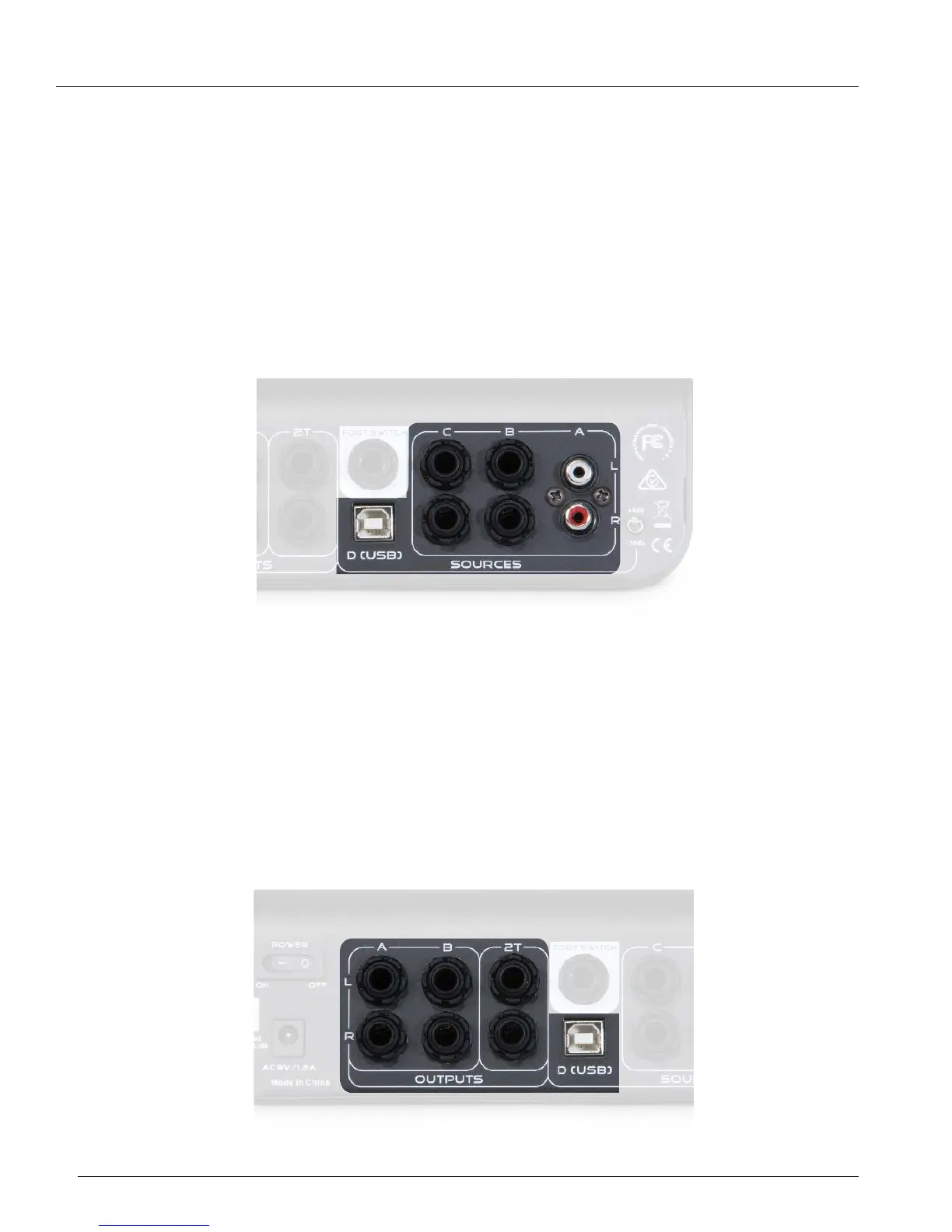

Three sets of input connectors are provided to allow connection of three signal sources. Input types for the three
sources are as follows.
• Source A: Stereo RCA inputs
• Sources B and C: Two stereo sets of 1/4-inch (6.5 mm) input connectors
• Source D is the USB input. The USB input has a built in Legacy compatible driver for simple plug & play
operation. The USB input does not need mains power to operate. An ASIO driver is also available for
download from the JBL Professional website at www.jblpro.com.
Outputs
Three sets of output connectors are provided to allow ACTIVE-1 connection to powered studio monitors, PA
speakers, mixers and recording equipment. Input types for the three sources are as follows: They are line level signal
for plugging in your active studio monitors or to the inputs of a power amplier that is driving your passive monitors.
• Outputs A and B: Two stereo sets of 1/4-inch (6.5mm) TRS connectors.
• Output 2T (2 Track): 1/4-inch (6.5mm) TRS connectors that can include the talkback signal.
• Source D is the USB output with Legacy driver built in. USB does not need mains power to operate.
USB output caries the same signal that is selected using the MAIN SOURCE input.
