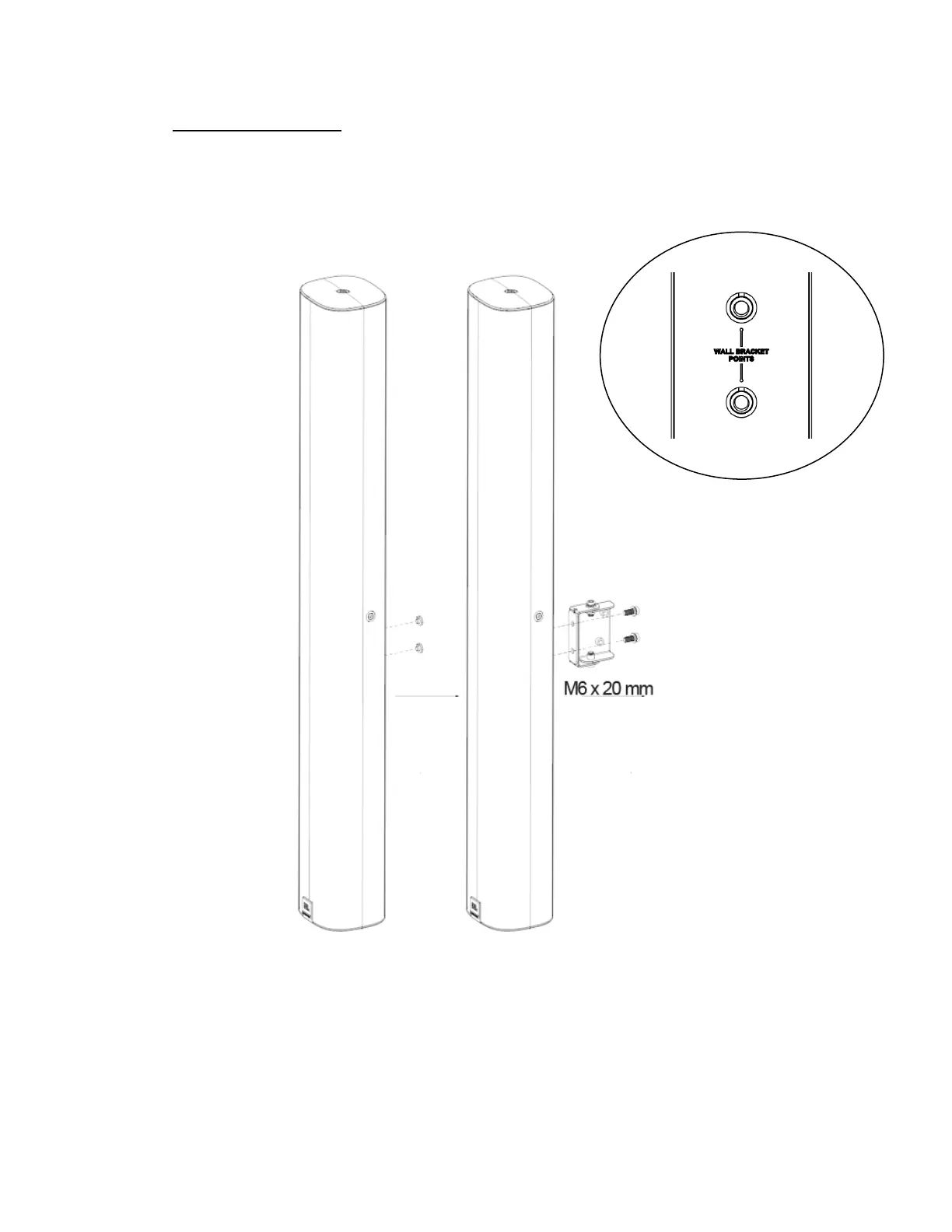

2.0) Mounting SPEAKER-SIDE BRACKET to COL speaker:
2.1) Identify the COL speaker’s two back panel mounting points, labeled on the back panel as “WALL BRACKET POINTS”.
Remove the silicone caps from those points, exposing the threaded inserts.
2.2) Attach the 2-part SPEAKER-SIDE BRACKET to COL speaker using two M6 x 20 mm bolts (with flat washers and lock
washers). Recommended –– 3.5 N
•
m [
+0.5/-0]
(2.6 ft-lb [
+0.4/-0]
).
Remove Silicon Caps
Insert M6 x 20 mm Bolts
with Flat Washers &
Lock Washers
WALL BRACKET POINTS (M6) are
labeled on the back of the speaker
