JBL Control SB210 - Schematic Overview

JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
© Copyright 2001 JBL Professional
A Harman International Company
SS SB210
CRP 15M
11/01
 Control SB210 Dual 10" Indoor/Outdoor High Output Compact Subwoofer

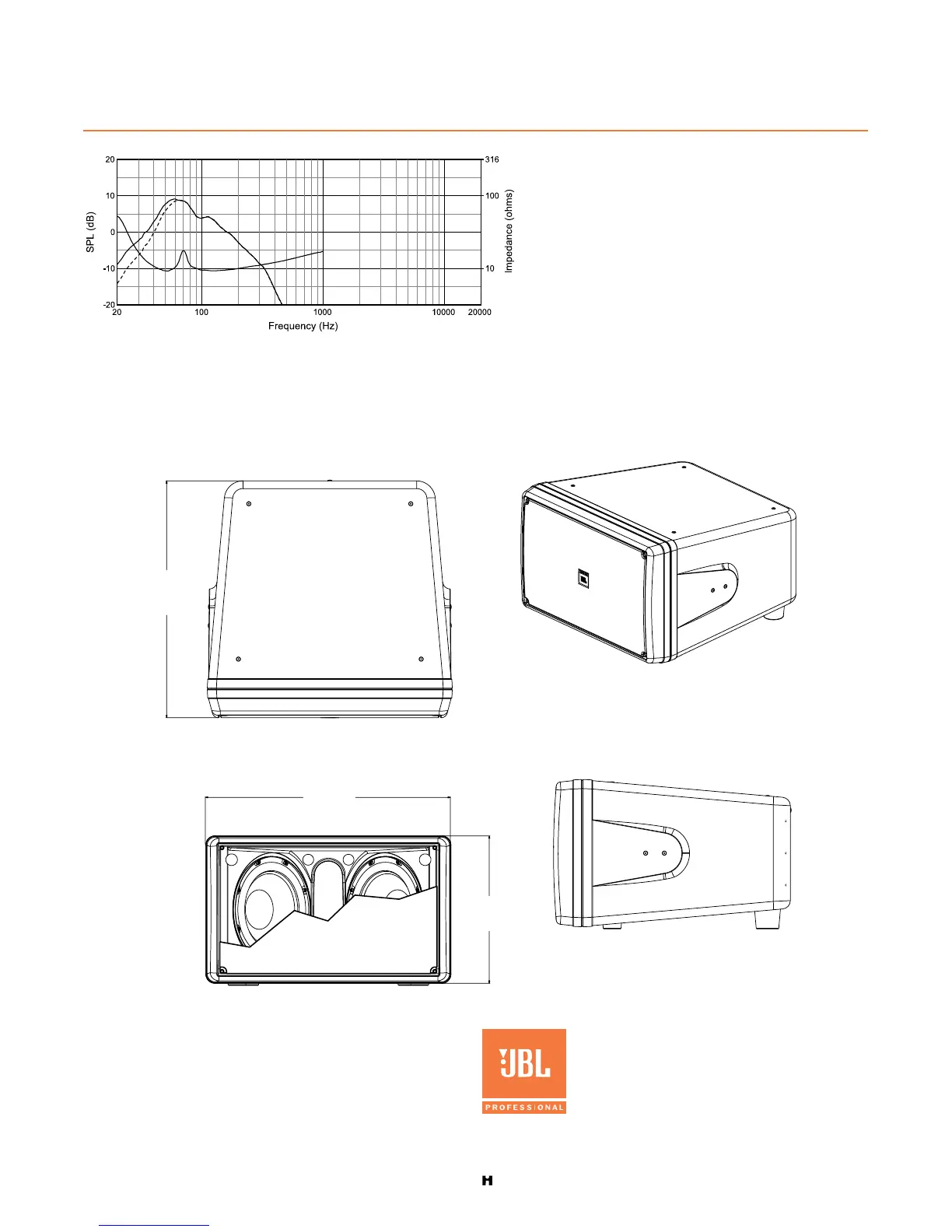

Dimensions
SIDE
Dimensions in inches [mm]
23.3
[590]
14.0
[355]
22.5
[570]
TOP
FRONT
Control SB210 frequency response, (1W, 1m) at two-boundary junction
(π loading, dotted line) and at three-boundary unction (π/2 loading,
solid) with recommended equalization (1/3 octave, 70 Hz, -10 dB) and
band-limiting filters (30 Hz high-pass 2nd order Butterworth, and 120
Hz low-pass 2nd order Butterworth).
