Technical Manual
DD67000

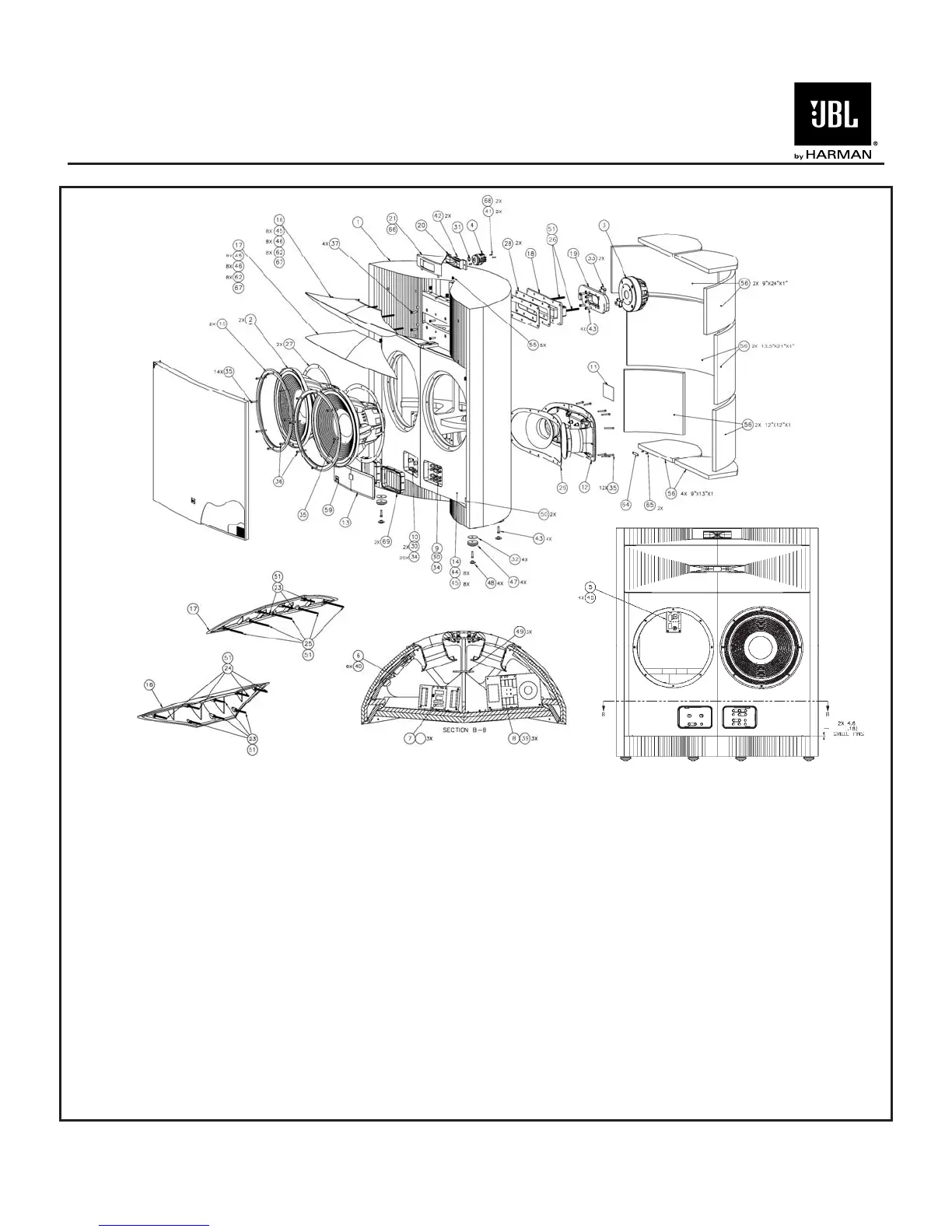

EXPLODED VIEW
8500 Balboa Blvd. Northridge, CA 91329 USA
Features, specifications and appearance are subject to change without notice. 12/2012
Item Part Number Description Qty Unit Item Part Number Description Qty Unit
1 123-0021-001 ASY, CAB, FNSH-DD67000MA 1 EA 34 883-11110-16 SCREW, 8 X 1, FLT, PH, PB, BLK ZINC, LCS 20 EA
123-0021-002 ASY, CAB, FNSH-DD67000RW 1 EA 35 804-73114-24 SCR,10-32 X 1 1/2,SKT,HEX,AL-2000 BLK 14 EA
2 320-0050-001 ASY, WFR - 1501AL-2 2 EA 36 804-73114-32 SCREW, 10-32X2, SKT, HEX, AL-2000, BLACK 14 EA
3 362733-001 ASY, XDCR, 476BE 1 EA 37 806-11010-20 SCREW, 1/4-20 X 1 1/4, FLT, PH, UNC, BLK ZNC, L 4 EA
4 362366-002 ASY, TWTR, UHF - 045BE-1,MG PHSNG 1 EA 39 883-41110-16 SCREW, 8 X 1, PAN, PH, PB, BLK ZINC, LCS 6 EA
5 400-0477-004 XOVER, UHF - DD67000 1 EA 40 882-41110-10 SCR, 6 X 5/8,PAN,PH,PB,BLK ZINC,LCS 10 EA
6 400-0477-003 XOVER, HF - DD67000 1 EA 41 802-41010-08 SCREW, 6-32 X 1/2, PAN, PH, BLK ZINC, LCS 2 EA
7 400-0477-001 XOVER, LF1-DD67000 1 EA 42 804-41110-08 SCR,10-32 X 1/2,PAN,PH,BLK ZINC,LCS 2 EA
8 400-0477-002 XOVER, LF2 - DD67000 1 EA 43 806-01000-16 SCREW, 1/4-20 X 1, FIL, PH, CLR ZINC, LCS 8 EA
9 400-0484-001 BD, CTRL, LF - DD67000 1 EA 44 806-93014-22 SCREW, 1/4-20 X 1 3/8, BTN, SCKT, BLK ZNC, ALLO 8 EA
10 400-0484-002 BD, CTRL, HF - DD67000 1 EA 45 844-01110-07 WASHER, 1/4, SAE, REG, BLK ZINC, LCS 24 EA
11 362906-003 NPL - DD67000 1 EA 46 834-30010-00 NUT, 1/4-20, KEPS, BLK ZINC, LCS, RIGHT 16 EA
12 110-0108-002 ASY, PTB/TERM - DD67000 1 EA 47 338067-002 FOOT, BASE, SPEAKER, K2S9800 4 EA
13 362685-002 COVER, PANEL, CASTING, FINISHED, DD66000 1 EA 48 338067-003 FOOT, SLID, SPEAKER, K2S9800 4 EA
14 123-0021-006 BAFFLE, CARBON FIBER FNSH - DD67000 1 EA 49 884-41100-12 SCREW, 10 X 3/4, PAN, PH, PB, CLR ZC, LCS 3 EA
15 361865-002 RING, TRIM, 15", PAINTED, DD66000 2 EA 50 66606-01 PIN, GRILLE, 7/8, LONGSTEEL, BLACK 2 EA
16 361795-005 LIP, HORN, UPPER, PAINTED, DD66000 1 EA 51 352034-001 LOCTITE 2760, PERMANENT THREAD LOCK, RED 0.020 EA
17 361795-006 LIP, HORN, LOWER, PAINTED, DD66000 1 EA 52 333361-001 ADHESIVE, JET MELT, 3796PG 0.020 EA
18 361790-004 THROAT, HORN, PNT - DD65000/DD67000 1 EA 53 63062 CAULK, STRIP, BLACK 0.150 EA
19 361796-001 ADAPTER, THROAT, RAW, DD66000 1 EA 55 333249-001 CUP, GRILLE, HLS/STUDIO II SERIES 5 EA
20 361861-002 HORN, UHF, PAINTED, DD66000 1 EA 56 22389P FIBERGLASS, 1 X 72", ROLL 12.250 EA
21 361899-004 HOUSING, UHF, PIANTED - DD65000/DD67000 1 EA 57 75439 TIE WRAP,RTM-675 3 EA
23 362625-001 STUD, THREADED, 1/4-20X3.0", DD66000 7 EA 58 35353S CABLE, TIE, NYLON 5 EA
24 362625-002 STUD, THREADED, 1/4-20X3.5", DD66000 4 EA 59 362682-001 ASY, LOGO, DD66000 1 EA
25 362625-003 STUD, THREADED, 1/4-20X5.5", DD66000 5 EA 60 72266 ADHESIVE, SICOMET, 5181 0.003 OZ
26 362627-001 STUD, THREADED, 5/16-18X3.0", DD66000 2 EA 62 830-0035-001 WSHR, FLAT, BLK, RUBBER, ¼"IDX1/2"ODX.09"THK 16 EA
27 338073-001 GASKET, DRIVER,15", K2S9800 2 EA 64 363359-003 NAMEPLATE, SERIAL NUMBER - DD67000 1 EA
28 362063-001 GASKET, THROAT, DD66000 2 EA 65 862-41210-08 SCREW, 6 X 1/2, PAN, PH, TYPE AB, BLK ZC, LCS 2 EA
29 362065-001 GASKET, PORT TUBE/TERMINAL, FLANGE, DD66000 1 EA 66 338166-001 GASKET, UHF, TOP, K2S9800 1 EA
30 362740-001 GASKET, CONTROL BOARD, CABNET, DD66000 2 EA 67 363469-001 PAD, DAMPING, HORN, EVEREST II DD66000 2 EA
31 339976-001 GASKET, UHF, K25800 1 EA 68 338536-001 GASKET, WASHER, .312 X .156", K2S9800 2 EA
32 338168-001 GASKET, FOOT, K2S9800 4 EA 69 190-0808-001 BEZEL - DD65000/DD67000 2 EA
33 362848-001 KNOB, 5/16-18, FEMALE, DD66000 2 EA
