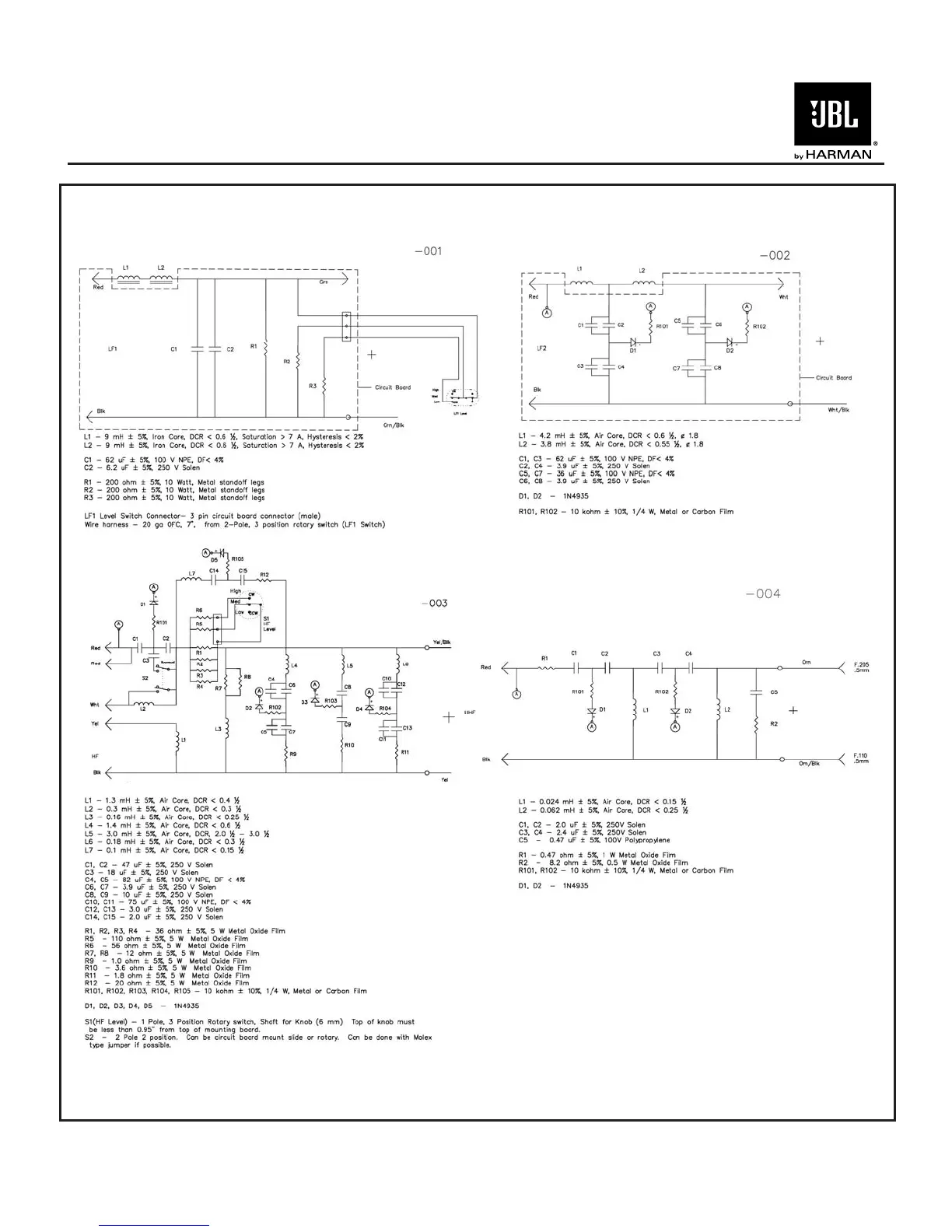

JBL DD67000 - Schematic Diagrams; LF1 Crossover Network (-001); LF2 Crossover Network (-002); HF;UHF Crossover Network (-003)

Technical Manual
DD67000
SCHEMATIC
