without applying pressure that might dislodge the
T-nuts. When the mounting screws have been removed,
gently lift the edge of the loudspeaker frame from the
baffle panel, disconnect the wires at the tab connectors
on the loudspeaker frame and remove the unit from the
enclosure. The sealing gasket should be reused when
the unit is replaced.
MIDRANGE AND HIGH FREQUENCY-The midrange
and high frequency units are each held in place by
four self-tapping screws at each corner of the frame.
Carefully remove the screws, lift the unit from the
enclosure and disconnect the wires at the tab connectors.
The fiber gasket beneath the high frequency direct
radiator should be reused when the unit is replaced.
• DIVIDING NETWORK -The dividing network is
installed behind the baffle panel and is held in place by
four machine screws. To gain access to the network,
remove the transducers as previously described,
carefully pull the wire leads from the midrange
sub-chamber, disconnect the input leads from the tab
connectors at the back of the enclosure, remove the four
mounting screws and lift the network out through the
low frequency loudspeaker opening.

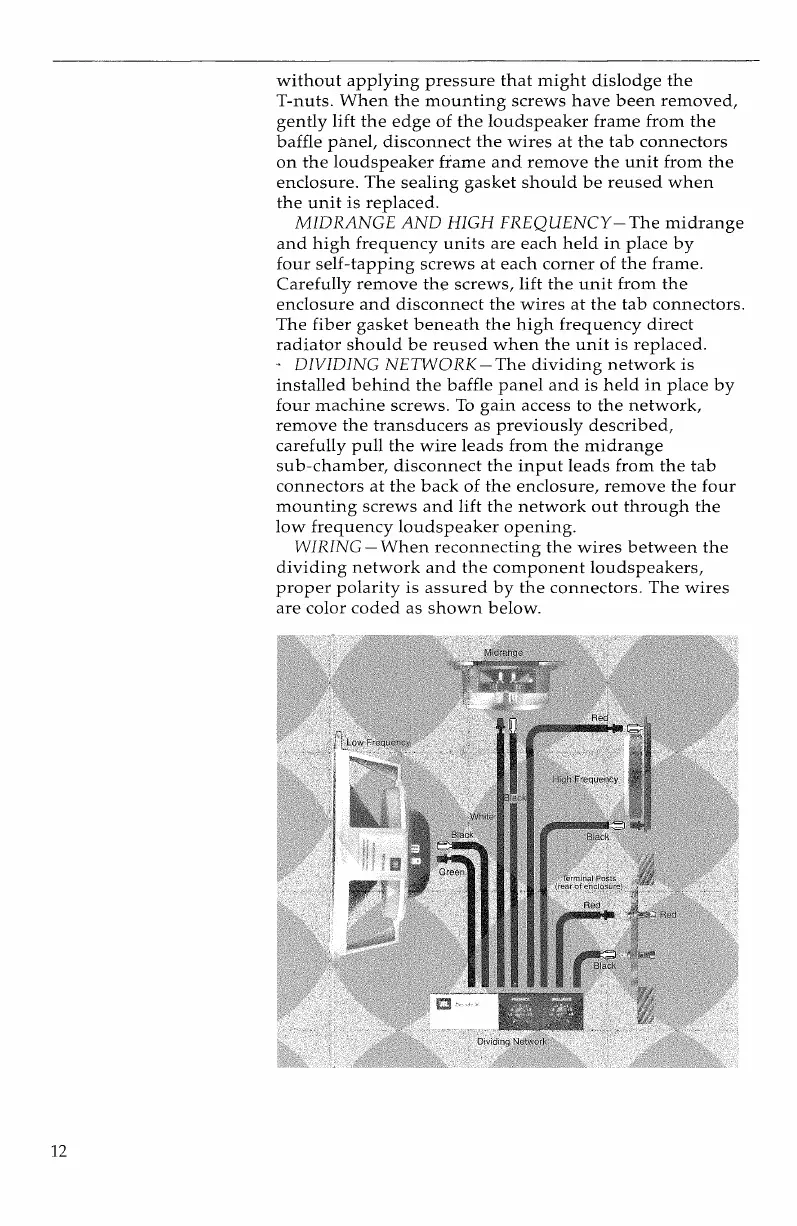

WIRING — When reconnecting the wires between the
dividing network and the component loudspeakers,
proper polarity is assured by the connectors. The wires
are color coded as shown below.
