APPLICATIONS – GTO301.1, GTO601.1 AND GTO1201.1
The GTO subwoofer amplifiers are
single-channel amplifiers. There are
two sets of terminals to make it easy
to connect multiple woofers. Either
set of (+/–) terminals may be used when
connecting woofers.
To the right are two application
diagrams to help plan your subwoofer
system installation. Figures 2 and 3
show how to configure the GTO
subwoofer amplifiers (models GTO301.1,
GTO601.1 and GTO1201.1).
NOTE: For simplicity, Figures 2 and 3
do not show power, remote and input
connections.
NOTE: Minimum speaker load is
2 ohms.
3
GTO Amplifier
(partial end panel)
Subwoofer
–
+
FREQ
MODE
HP LP FLAT
GTO75.2
(partial end panel)
+
–
GTO Amplifier
(partial end panel)
Subwoofer Subwoofer
+
–
–
+

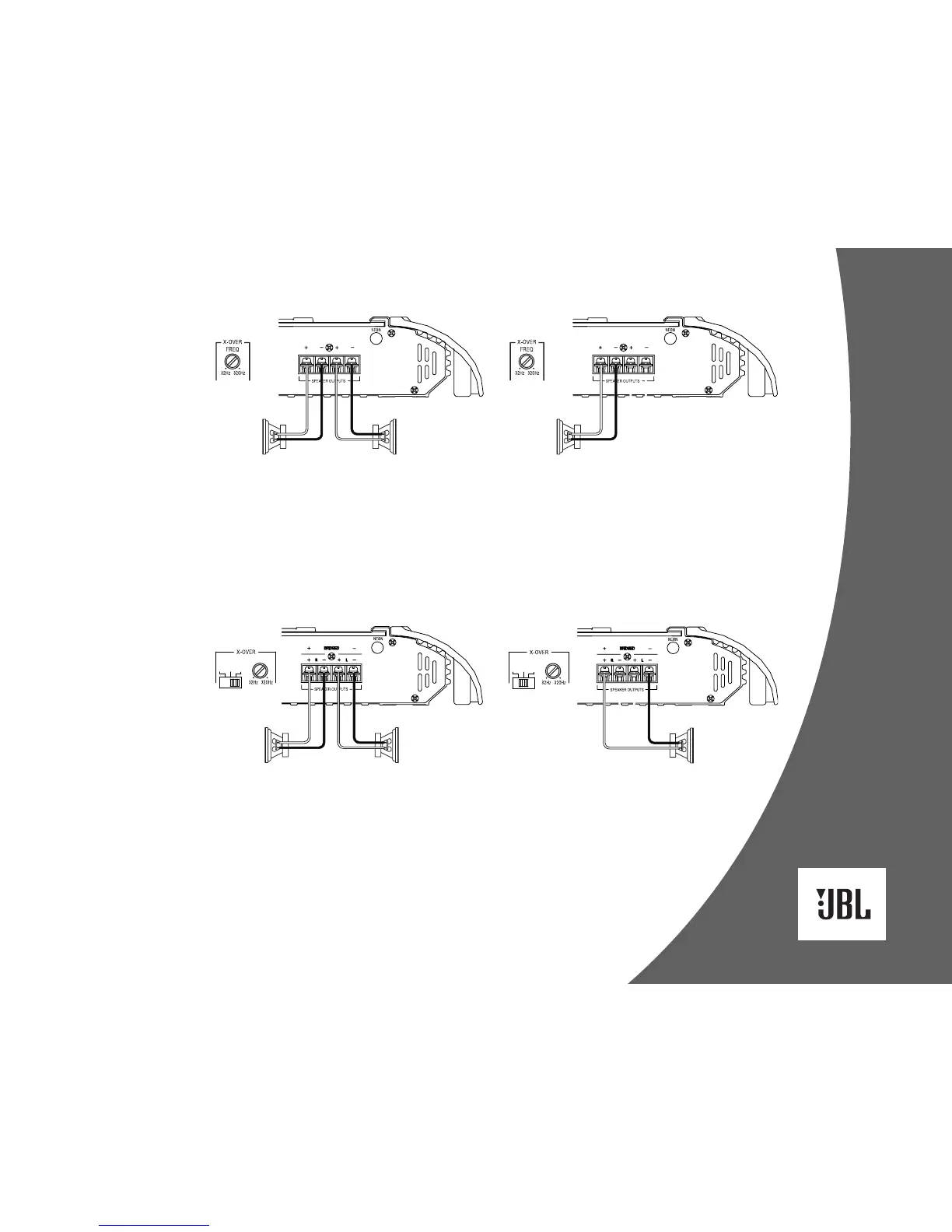

Figure 2. GTO subwoofer amplifier with two woofer connections.
Figure 3. GTO subwoofer amplifier with one woofer connection.
Figure 4. GTO75.2 amplifier set up for stereo operation.
Figure 5. GTO75.2 amplifier set up for bridged-
mono operation.
APPLICATIONS – GTO75.2
The JBL GTO75.2 amplifier can be
set up for stereo or bridged-mono oper-
ation, as shown in Figures 4 and 5.
NOTE: For simplicity, Figures 4 and 5
do not show power, remote and input
connections.
NOTE: Minimum speaker impedance for
stereo operation is 2 ohms. Minimum
speaker impedance for bridged opera-
tion is 4 ohms.
GTO75.2
(partial end panel)
FREQ
MODE
HP LP FLAT
+
–
–
+
