APPLICATIONS – GTO755.6
The GTO755.6 can be configured for
6-channel, 5-channel or 3-channel oper-
ation, as shown in Figures 9 through 11.
NOTE: For simplicity, Figures 9 through
11 do not show power, remote and input
connections.
NOTE: Minimum speaker impedance for
stereo operation is 2 ohms.
Minimum speaker impedance for
bridged operation is 4 ohms.
Subwoofer Rear Front
Subwoofer Rear Front
–
+
–
+
+
–
+
–
+
–
+
–

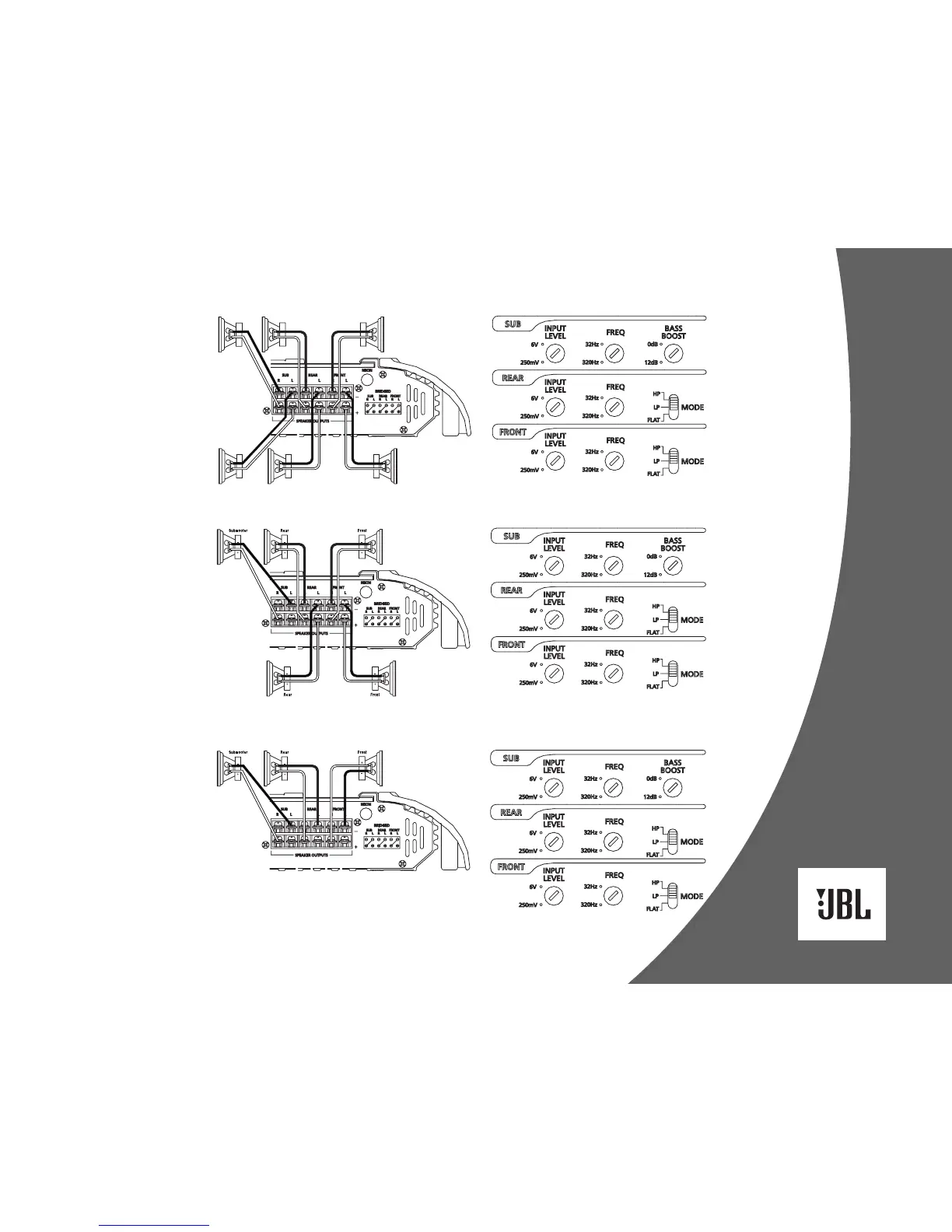

Figure 9. 6-Channel operation: GTO755.6 amplifier driving full-range front and rear speakers and a pair of subwoofers.
Figure 10. 5-Channel operation: The same as Figure 9, with the subwoofer output bridged to drive a single 4-ohm subwoofer,
providing the speaker with more power.
Figure 11. 3-Channel operation: GTO755.6 amplifier configured for 3-channel operation, where all of the channels are
bridged for a subwoofer and a pair of component speakers.
