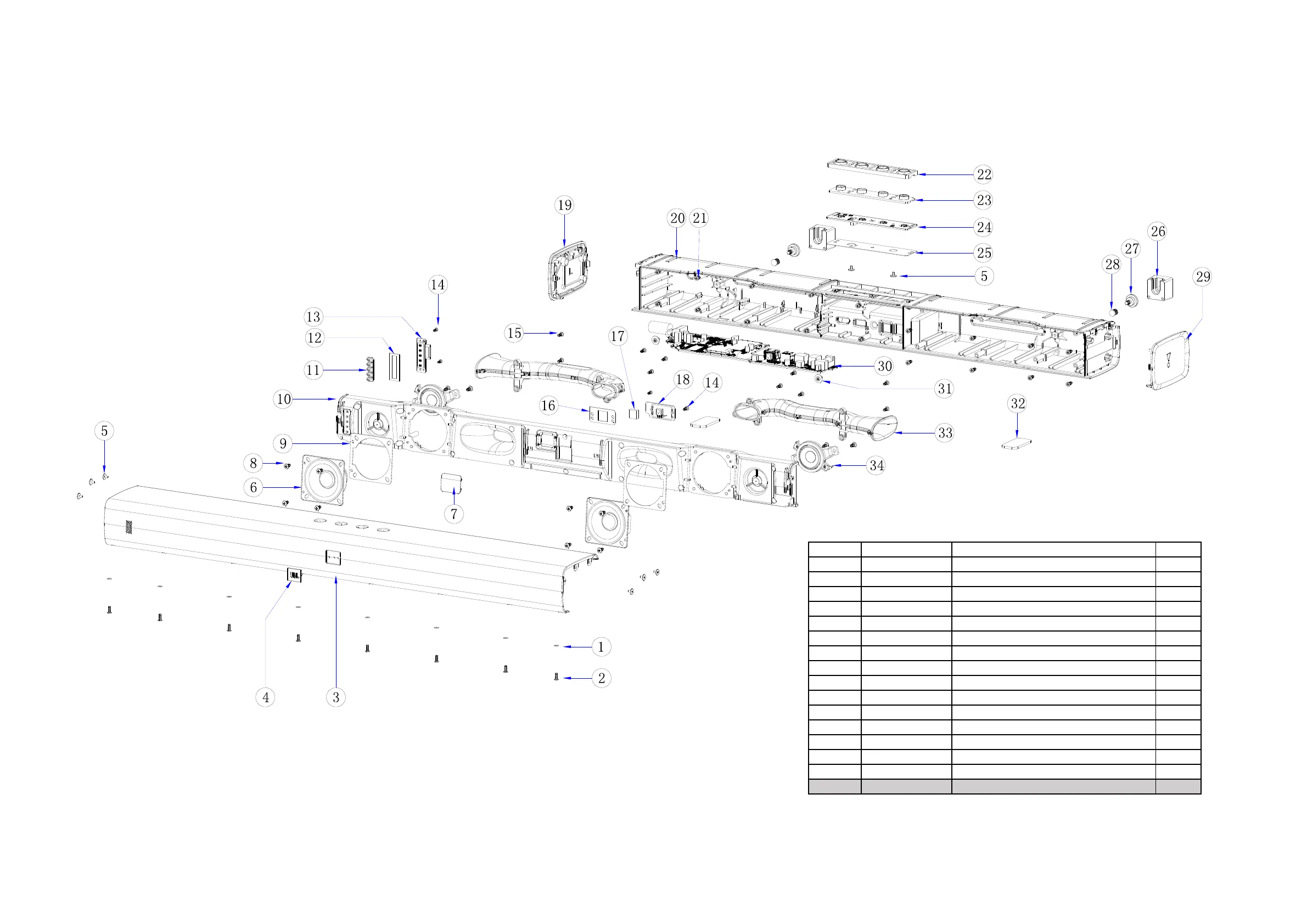

JBL JBLBARSBLKAM - Mechanical Exploded View

34 20480150030001 TWEETER BAR STUDIO 2
33 341105360109 PORT TUBE BAR STUDIO 2
30
993105360129
MAIN PCBA BAR STUDIO 1
29 25105360301049 RIGHT COVER BAR STUDIO 1
26 24105360601089 WALL BRACKET BAR STUDIO 2
24
993105360329
KEY PCBA BAR STUDIO 1
23 420203250109 RUBBER BUTTON BAR STUDIO 2
22 24105360501049 BUTTON bracket BAR STUDIO 1
27
443915014009 MOUNT SCREW BAR STUDIO 2
20 341105200209 REAR HOUSING BAR STUDIO 1
19 25105360201049 LEFT COVER BAR STUDIO 1
18
993105360429
IR PCBA BAR STUDIO 1
13
993105360229
LED PCBA BAR STUDIO 1
10 341105200109 FRONT HOUSING BAR STUDIO 1
6 20240200150001 WOOFER BAR STUDIO 2
3+4 341105200309 GRILLE ASSY W/LOGO BAR STUDIO 1
YTQ noitpircseDN/P.oN .soP
MECHANICAL EXPLODED VIEW
