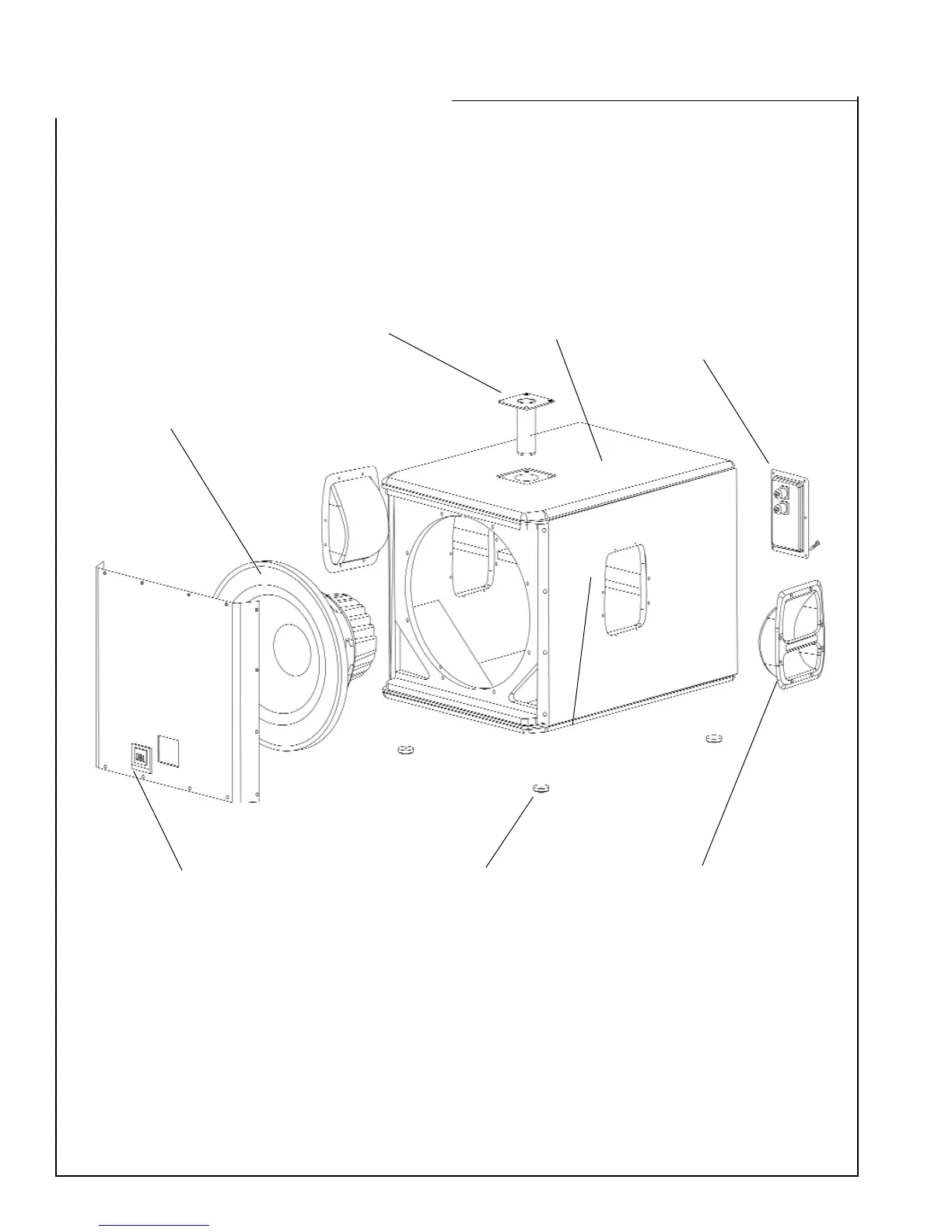

COMPONENT EXPLODED VIEW
Handle Assy (2)
362328-001
Screw (8)
884-11110-12
10 x 3/4, FLT, PH,
PB, BLK ZINC, LCS
Gasket (2)
363125-001
Screw (8)
804-11110-16
10-32 x 1, FLT, PH,
PB, BLK OXIDE, LCS
Input, Cup Assy
362238-001
Screw (6)
882-41110-10
6 x 5/8, PAN,PH,
PB, BLK ZINC, LCS
Cabinet Assy
(Not for Sale)
Nameplate
362051-001
Grtille Assy w/ Screen
362525-001
Screw (16)
882-51110-12
6 x 3/4, OV, PH, PTCL
BLK ZINC, LCS
Driver, Low Freq
2044G
(352938-005X)
Cone Repl
C4R2044
Gasket, Rear (4)
60578
Screw (8)
804-011110-16
10-32 x 1, FIL, PH,
BLK ZINC, LCS
Pole, Mount
336965-001
Gasket, Stand Cup
337181-001
Screw (4)
806-11010-20
1/4-20 x 1 1/4, FLT, PH,
UNC, BLK ZINC, LCS
Foot (4)
353445-001
Screw (4)
884-41110-12
10 x 3/4, PAN, PH,
PB, BLK ZINC, LCS
