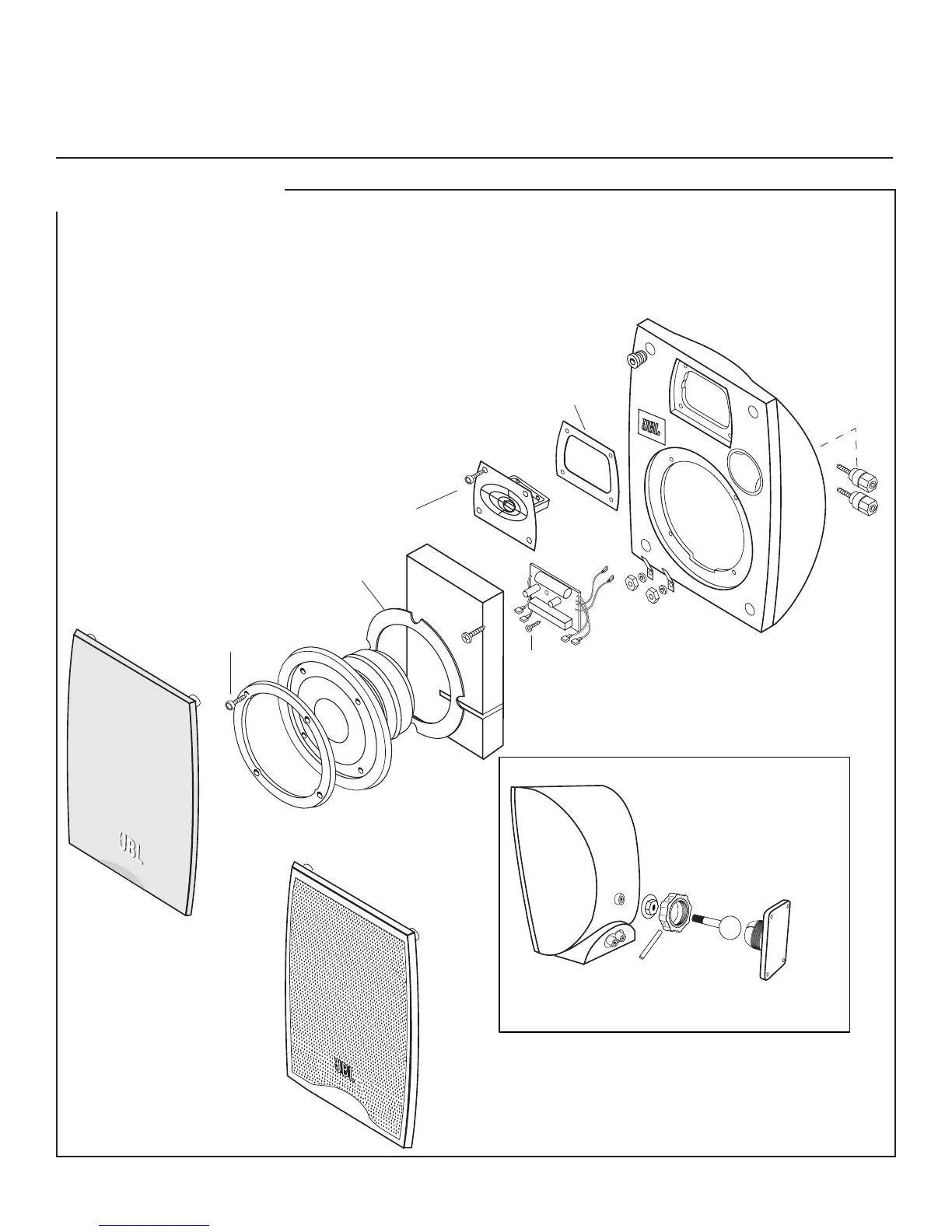

JBL N24II - Exploded View and Part Identification; Exploded View Diagram; Component Part Numbers

JBL Consumer Products, 250 Crossways Park Dr., Woodbury, New York 11797
Red and Black
Binding Posts
N24
II – T761
N24AW
II – T761-1
Network
XR0183
Grille
N24
II (gray) –
X04085-01
Woofer
N24
II – NS-W4SSII
N24AW
II – NS-W4SS-03II
Wall-Bracket Kit WI0668 (black), WI0668-W (white)
(1) Plastic Wrench (for binding-post nut)
(2) Metal Nut Wrench (WI0653) (metal rod)
(3) Ball and Nut (WI0650)
Tweeter
N24
II/N24AWII
A73C20DM-03DT
Screw (1)
5/32" x 7/32" PPH
A06-M40603
Screws (4)
#8 x 5/8" Allen Head
A06-T41611
Screws (4)
#8 x 5/8" Allen Head
A06-T41611
Woofer Trim Ring
P04096-01
Grille Retainers N24
II Gray (4) – WI0406
N24AW
II White – (4) WI0406-W
Gasket, Woofer
P04095
Gasket, Tweeter
WI0085
Bracket Nut
N24
II – WI0651
N24AW
II – WI0651-W
Nut Wrench
WI0653
Wall Bracket
N24
II – WI0652
N24AW
II – WI0652-W
Ball and Nut
WI0650
Grille (outdoors)
N24AW
II (off-white) –
X04086-01
N24II/N24AWII
Northridge
™
Series
N24II/N24AWII Northridge
™
Series
6/04
EXPLODED VIEW
