JBL Performance Series - Page 2

GRILLE
CLOTH
BACK VIEW FRONT VIEW
TWEETER
BAFFLE
DOG
CROSSOVER
NETWORK
WOOFER
2
6
12
12
1
REF
20.0mm
GREEN WIRE
CONNECTS TO
+ TERMINAL
BLACK WIRE
CONNECTS TO
– TERMINAL
2
3
4
5
(4)
7
ITEM NO. PART NO. DESCRIPTION
1 590-0194 BAFFLE IS8
2 590-0267 GRILLE ASS’Y
3 590-0282 8" WOOFER
4 590-0283 CROSSOVER NETWORK
5 590-0284 1" TWEETER
6 GRILLE CLOTH not sold alone – see 590-0267
ITEM NO. PART NO. DESCRIPTION
7 590-0173 DOG EAR W/SCREW
8 220-0739 OUTER CARTON
9 220-0438 TEMPLATE
10 170-1034 OWNER’S MANUAL
11 N/A WARRANTY CARD
12 180-0030 JBL LOGO

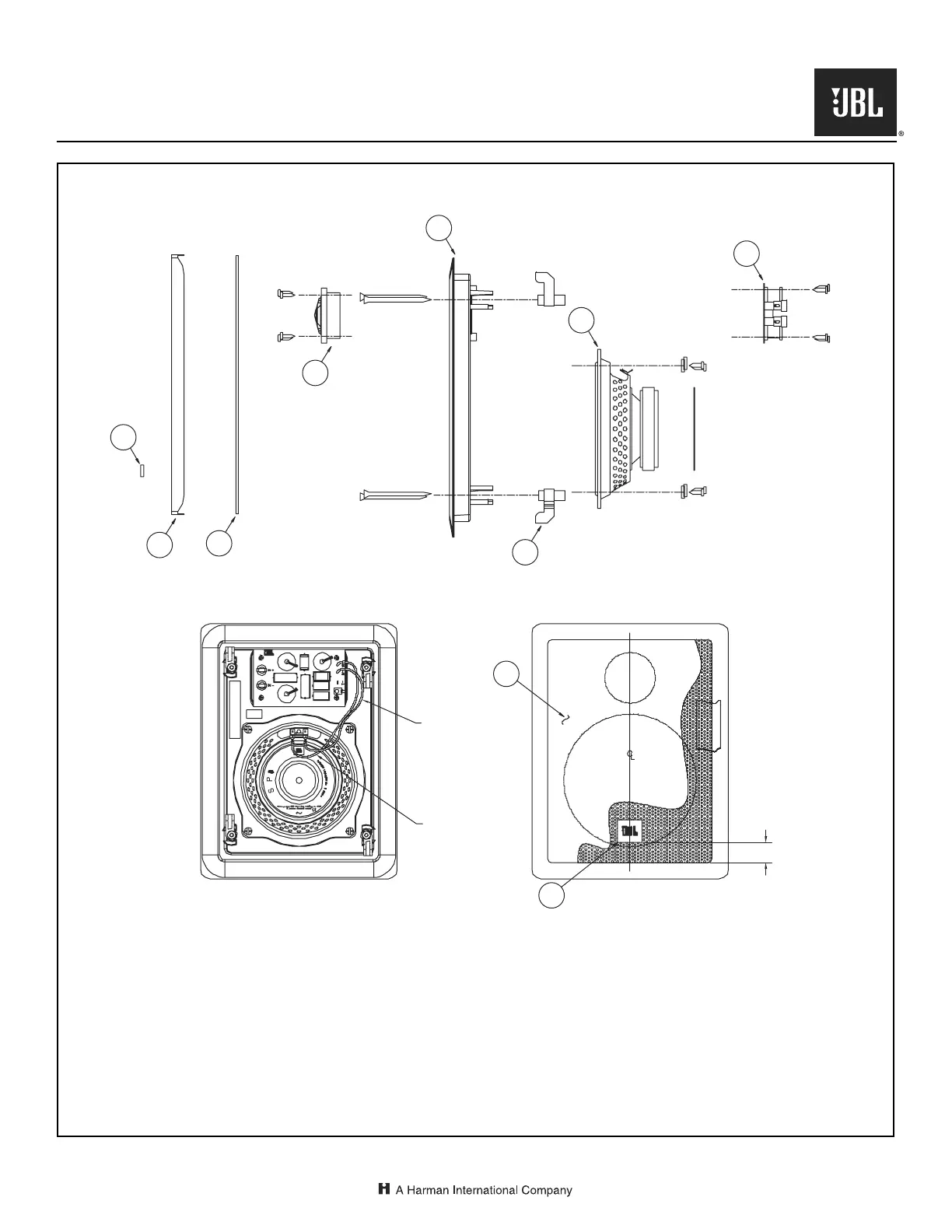

EXPLODED VIEW
IS8 ROUGH-IN FRAME part #RIF8
Technical Manual
IS8 Performance
™
Series
IS8 Performance
™
Series
1/07
Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797
