10 The JBL ProFlora pH control touch (u503, m2003 only) pH computer
The latest digital measurement and control technology regulates the pH level and CO
2
supply.
The latest digital measurement and control technology measures the pH value and temperature,
and fully automatically and reliably regulates the pH level and supply of CO
2
. This ensures
luxuriant plant growth and healthy sh. The JBL ProFlora pH control touch pH computer has a
modern colour touch display, as well as offering a whole range of useful features never before
incorporated in equipment of this class. A simple multi-lingual menu guides you safely through
all the functions. The complete equipment runs on 12 V extra-low voltage, providing the highest
possible safety.
(For more details, please refer to the instructions for use included separately with this product)
11 Installation

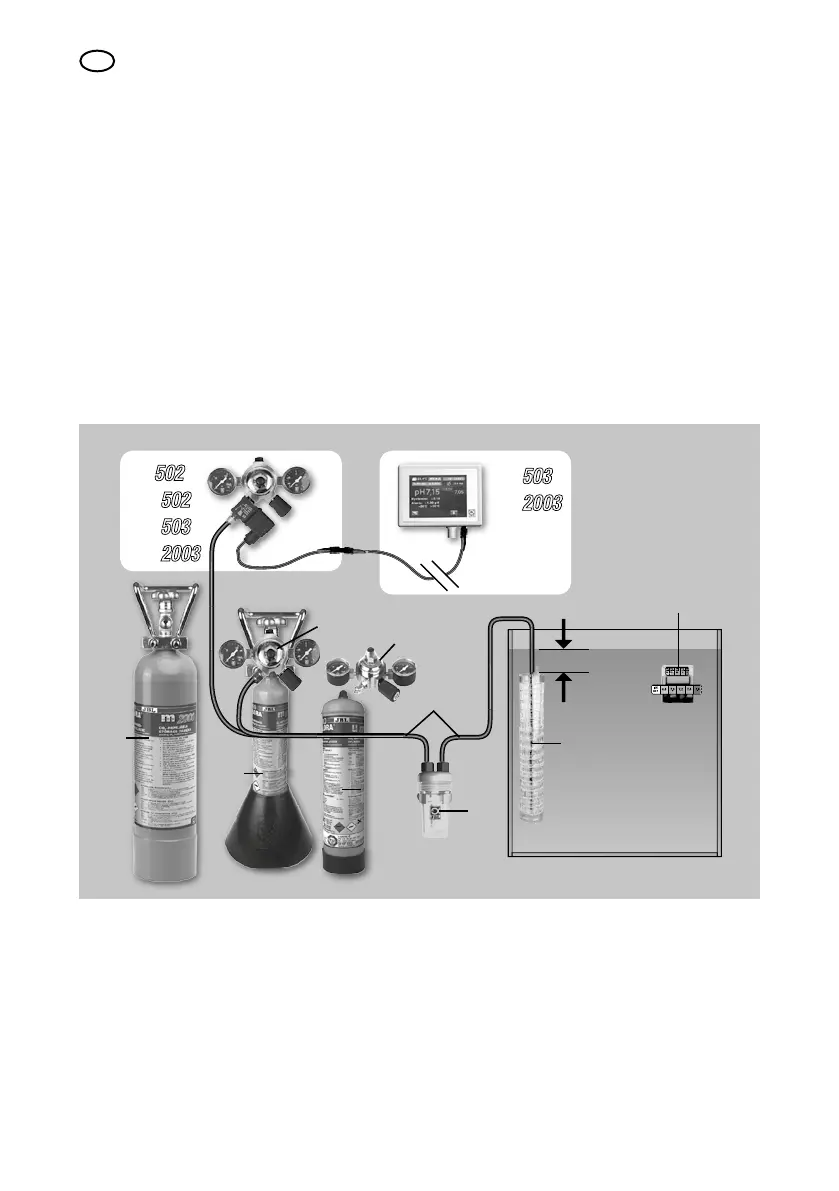

A schematic installation diagram shows the following items. For clarity, only the parts which
convey CO
2
are illustrated. The sensors and power supply units are not shown. Only the
connection cable from the pH control to the solenoid valve at conguration m503 and m2003
are also included in the illustration.
1 Rellable 500 g JBL ProFlora m500 CO
2
storage bottle with stand
2 Rellable 2 kg JBL ProFlora m2000 CO
2
storage bottle
3 Disposable 500 g JBL ProFlora u500 CO
2
storage bottle
4 JBL ProFlora m001 pressure regulator (conguration for rellable bottles)
5 JBL ProFlora u001 pressure regulator (conguration for disposable bottles)
6 JBL ProFlora v002 pressure regulator tted with solenoid valve (sets u502, m502, m503
und m2003)
7 JBL ProFlora pH control touch pH computer
8 JBL ProFlora Count safe bubble counter with integrated check valve
9 JBL ProFlora Taifun CO
2
passive reactor
m
503
m
2003
u
502
m
502
m
503
m
2003
min 2 cm











