JBL PRX ONE - Page 3

Connection Plate+Array Bracket
(4 pan head bolts)
PRX ONE-Install Adapter Bracket Kit Assembly & Bracket Installation Guide – Page 3
3) ORIENTING TOP & BOTTOM ARRAY

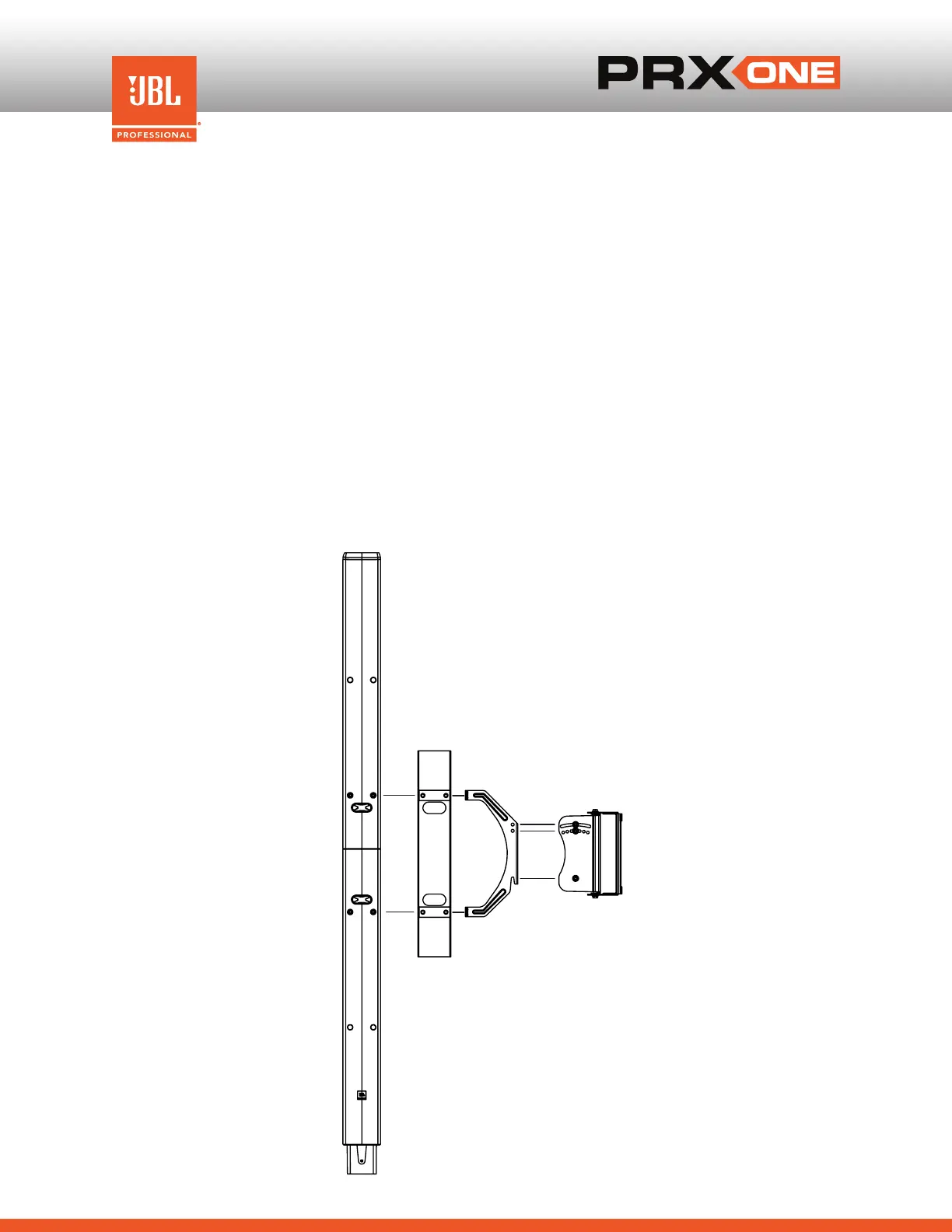

This drawing shows the proper orientation of the two speaker modules, where the connection plate
attaches and where the wall bracket attaches (onto the connection plate).
IMPORTANT: Note that the speaker will not work correctly if the TOP AND BOTTOM
ARRAY are not oriented as shown.
TOP ARRAY
BOTTOM ARRAY
Swivel/Tilt
Wall Bracket
