JBL PRX ONE - Page 5

M6
Nut Lock
Washer
Flat
Washer
Flat
Washer
Lock
Washer
M6L36
A
B
PRX ONE-Install Adapter Bracket Kit Assembly & Bracket Installation Guide – Page 5
PIVOT BOLT LOCATION

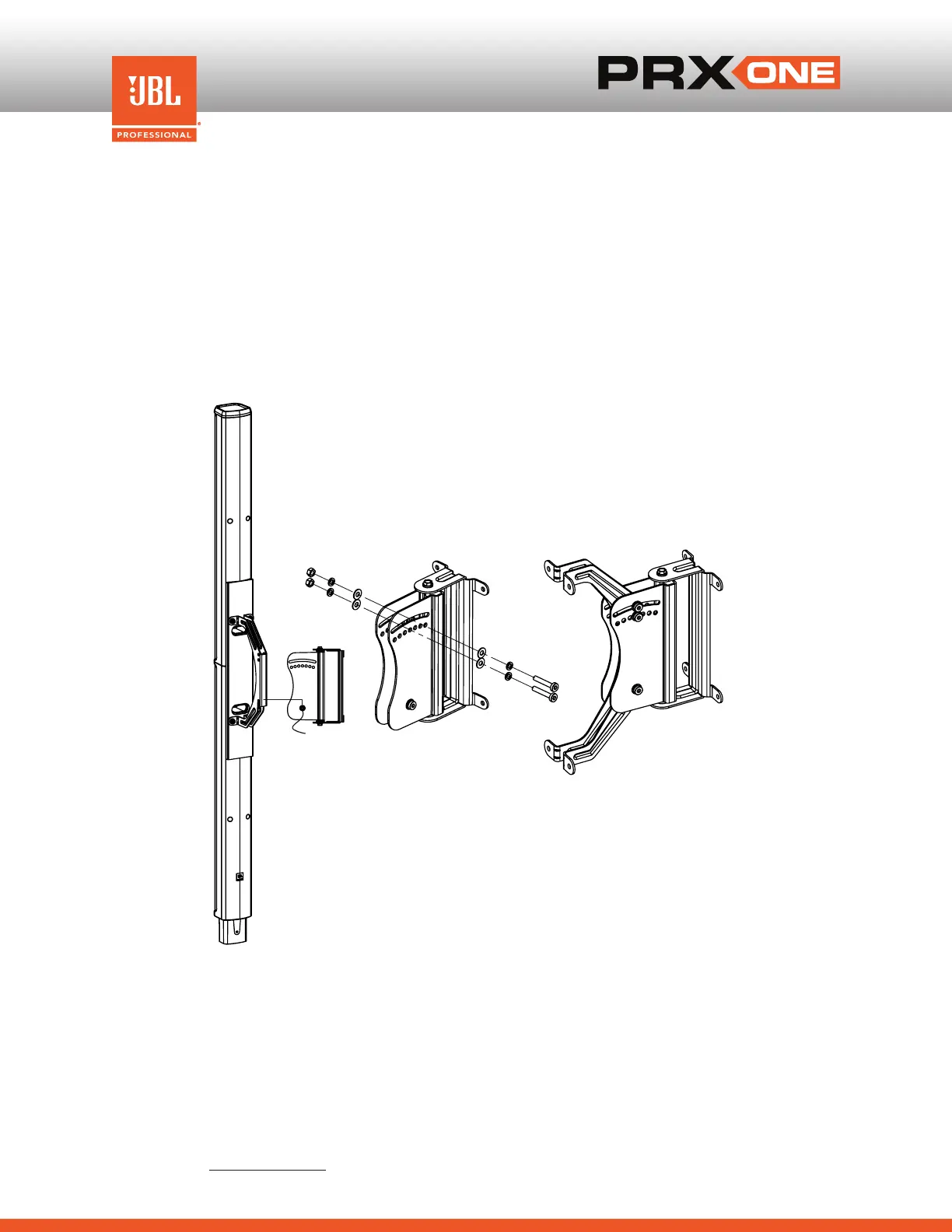

6) SLIDE ARRAY WITH ARRAY BRACKET ONTO WALL BRACKET
1
Once the wall mount has been attached to the wall and Array mount has been attached
to the Array, loosely install the M6-L36
PIVOT BOLT
(bolt, lock washer and flat washer on
one side and flat washer, lock washer & nut on the other side) of the
WALL BRACKET.
Then
slide the Array so that the
ARRAY BRACKET
engages into the
WALL BRACKET
,
dropping the hook slot of the
ARRAY BRACKET
onto the
PIVOT BOLT
as shown in Drawing
1
.
2
Insert the top tilt-angle bolt through the appropriate hole – first insert screw suit
A
through
the slot for continuous adjustment capability,then insert the screw suit
B
through one of the
preset angle holes (see next page for more information about tilt angles).
Install with M6-L36 bolt, lock washer and flat washer on one side and flat washer, lock washer &
nut on the other side, as shown in Drawing
2
. Make sure the bolt goes through holes in
WALL
BRACKET
and in
ARRAY BRACKET
.
3
Final
BRACKET ASSEMBLY
is shown in Drawing
3
.
TIGHTEN THE BOLTS.
1 2 3
