JBL S310 - Speaker Connections

4

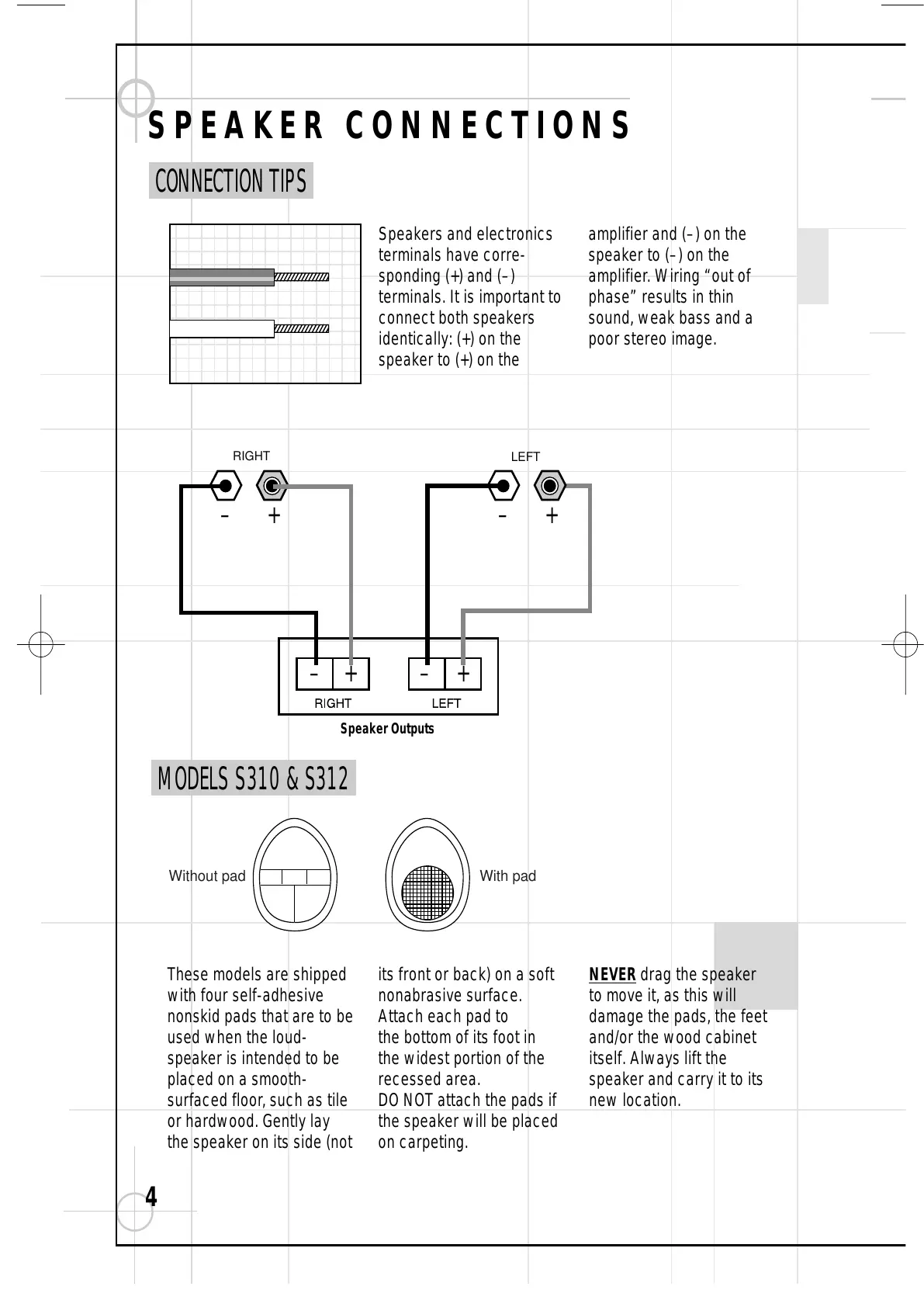

SPEAKER CONNECTIONS
Speakers and electronics
terminals have corre-
sponding (+) and (–)
terminals. It is important to
connect both speakers
identically: (+) on the
speaker to (+) on the
amplifier and (–) on the
speaker to (–) on the
amplifier. Wiring “out of
phase” results in thin
sound, weak bass and a
poor stereo image.
– +– +
– +
Speaker Outputs
LEFT
RIGHT
– +
CONNECTION TIPS
These models are shipped
with four self-adhesive
nonskid pads that are to be
used when the loud-
speaker is intended to be
placed on a smooth-
surfaced floor, such as tile
or hardwood. Gently lay
the speaker on its side (not
its front or back) on a soft
nonabrasive surface.
Attach each pad to
the bottom of its foot in
the widest portion of the
recessed area.
DO NOT attach the pads if
the speaker will be placed
on carpeting.
NEVER
drag the speaker
to move it, as this will
damage the pads, the feet
and/or the wood cabinet
itself. Always lift the
speaker and carry it to its
new location.
Without pad With pad
MODELS S310 & S312
