S26 S38
Description: 2-Way 6" bookshelf 3-Way 8" horizontal,
mirror-image bookshelf
Maximum Recommended
Amplifier Power*: 150W 175W
Nominal Impedance: 8 Ohms 8 Ohms
Sensitivity (2.83V/1m):
87dB 89dB
Frequency Response (–3dB):
48Hz – 20kHz 45Hz – 20kHz
Crossover Frequency: 2000Hz 800, 3200Hz
High-Frequency Transducer: 1" Pure-titanium dome, with 1" Pure-titanium dome, with
rubber surround, shielded; rubber surround, shielded;
Elliptical Oblate Spheroidal™ Elliptical Oblate Spheroidal™
(EOS) waveguide (EOS) waveguide
Midrange Transducer: NA 4" PolyPlas™ (polymer-coated
cellulose fiber) cone, rubber
surround, shielded; Linear Field
Proximity™ (LFP) bezel
Low-Frequency Transducer(s)
: 6" PolyPlas™ (polymer-coated 8" PolyPlas™ (polymer-coated
cellulose fiber) cone, rubber cellulose fiber) cone, rubber
surround, SFG
™
, magnetic surround, SFG
™
, magnetic
shorting rings, high-temp shorting rings, high-temp
oversized Kapton
®
voice oversized Kapton
®
voice coil,
coil, HeatScape™ motor HeatScape™ motor structure,
structure, cast-aluminum cast-aluminum baskets, shielded
baskets, shielded
Baffle: Low Diffraction, IsoPower™ Low Diffraction, IsoPower™
Port: FreeFlow™ flared FreeFlow™ flared
Network: Straight-Line Signal Path™ (SSP) Straight-Line Signal Path™ (SSP)
Terminals: All-metal, gold-plated, 5-way All-metal, gold-plated, 5-way
binding posts binding posts
Dimensions (H x W x D): 17" x 10" x 10" 11-1/2" x 17-1/2" x 12-7/8"
432mm x 254mm x 254mm 292mm x 445mm x 327mm
Weight per Speaker: 22lbs, 10kgs 28lbs, 12.7kgs

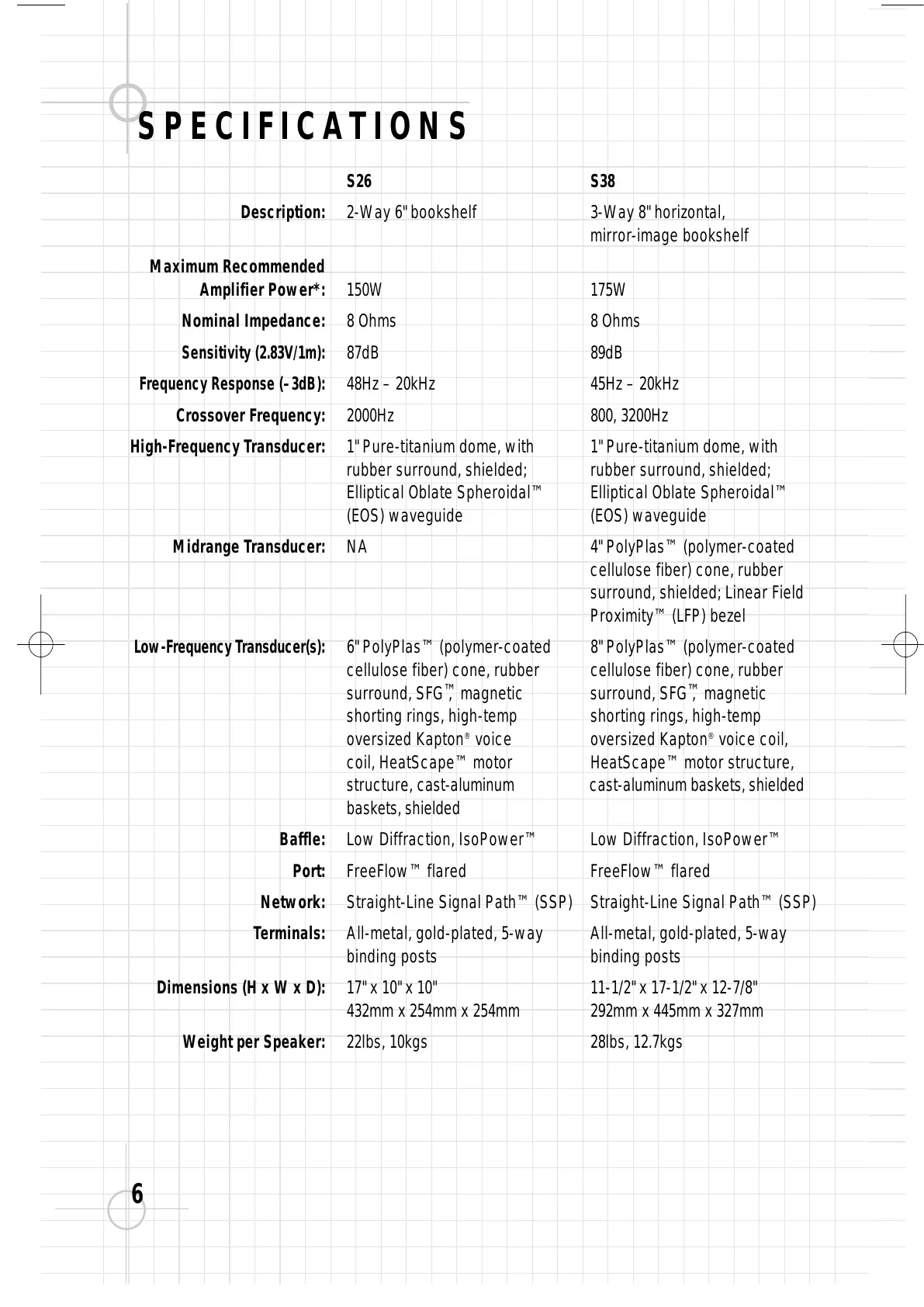

SPECIFICATIONS
6
