In Band III transmission areas (such as the UK), use a multi-
element Yagi aerial with the elements mounted vertically,
as the transmissions are vertically polarised. If you are close
to more than one transmitter, use an omnidirectional or
folded dipole aerial.
If the DAB services in your area are transmitted on L-band,
then ask your dealer for advice for the best aerial to use.
Wi-Fi/Bluetooth
BLUETOOTHWI-FI
TRIG Z1 Z1 IR
Z2 IRTRIG Z2
OUTAVSTBCDBD
SAT PVR
HDMI
FM/DAB
CD
PVR
BD
AV
GAME
STB
LINE OUT
ANALOGUE AUDIO
Z2 OUTHEIGHT1HEIGHT2
L
R
CH15/16CH13/14
SUB2
L
R
ETHERNET
USB 5V/0.5A
FL
FR
SL
SR
C
SUB1
SBL
SBR
PREAMP OUT
PREAMP OUT
ZONE2 R
HEIGHT1 R
SBR
SBR
HEIGHT1 R
ZONE2 R
ZONE2 L
HEIGHT1 L
SBL
SBL
HEIGHT1 L
ZONE2 L
SR
SR
FR
FR
C
C
FL
FL
SL
SL
CAMBRIDGE, CB25 9PB, UK
DESIGNED IN THE UK
MADE IN VIETNAM
CLASS 2 WIRING
8Ω LOAD IMPEDANCE RECOMMENDED
SPEAKER OUTPUTS
WI-FI
STBGAMEAVSATBDUHDPVR
ZONE2
OUT
OUTPUT1
eARC
OUTPUT2
If using the Wi-Fi or Bluetooth features of the Receiver,
please attach the single antenna for the Bluetooth and the
two antennas for the Wi-Fi.

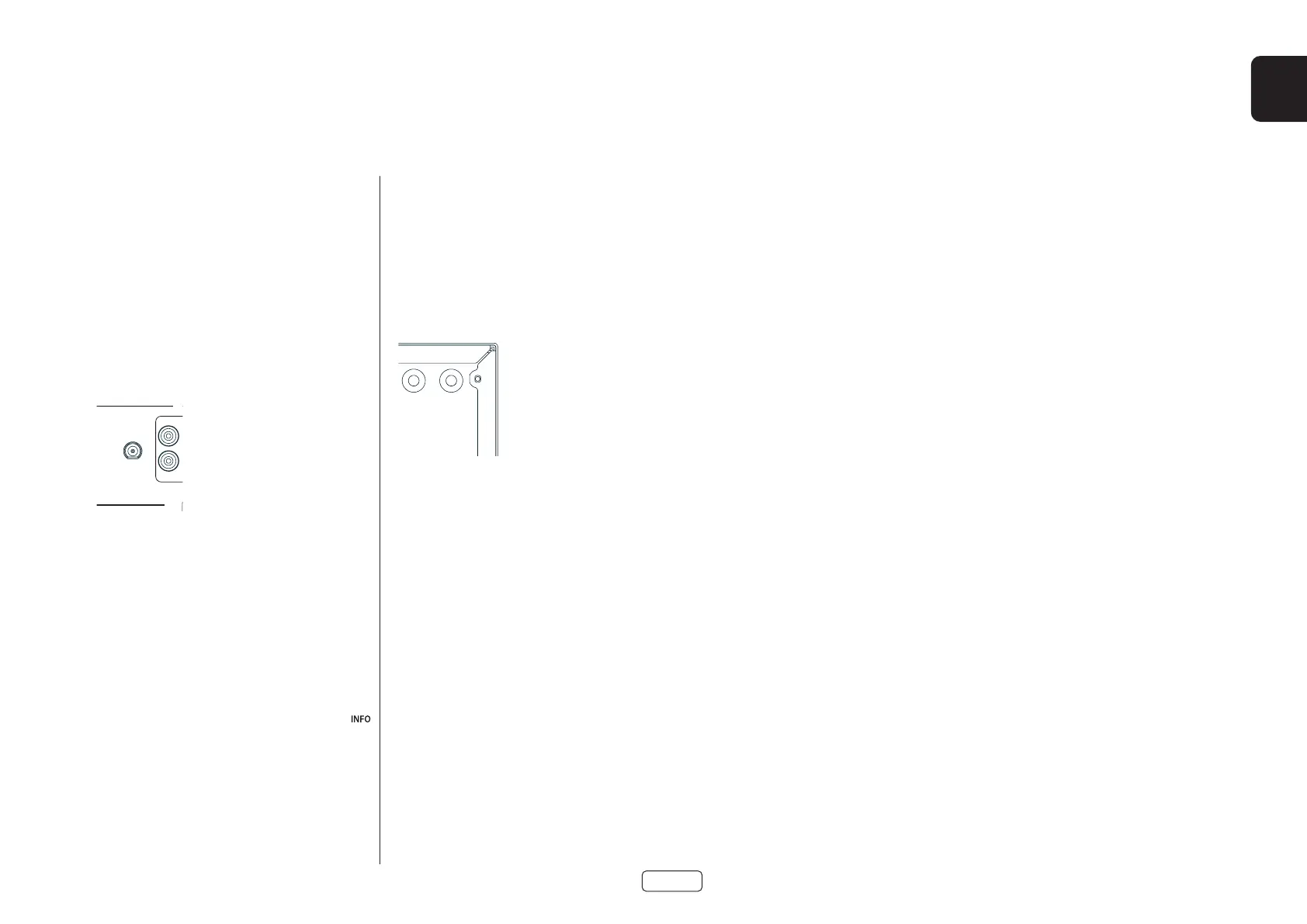

DAB/FM connector
The Receiver is fitted with an FM and a DAB/DAB+ receiver
module. The type of aerial you need depends on your
listening preferences and the local conditions.
Your Receiver is capable of superb radio reception, but only if
it is receiving a good quality transmission signal.
Try the antennas supplied with your unit. If you are in a
medium to strong signal area, these should be adequate for
good reception. In areas with poor signal strength, you may
require a roof or loft mounted aerial.
Contact your local JBL Synthesis dealer or aerial installation
experts for advice about local reception conditions.
DIGITAL AUDIO
RS232
BLUETOOTHWI-FI
TRIG Z1 Z1 IR
Z2 IRTRIG Z2
OUTAVSTBCD
BD
SAT
FM/DAB
CD
PVR
BD
AV
GAME
STB
LINE OUT
ANALOGUE AUDIO
Z2 OUTHEIGHT1HEIGHT2
L
R
CH15/16CH13/14
SUB2
L
R
ETHERNET
USB 5V/0.5A
FL
FR
SL
SR
C
SUB1
SBL
SBR
PREAMP OUT
PREAMP OUT
ZONE2 R
HEIGHT1 R
SBR
SBR
HEIGHT1 R
ZONE2 R
ZONE2 L
HEIGHT1 L
SBL
SBL
HEIGHT1 L
ZONE2 L
SR
SR
FR
FR
C
C
FL
FL
SL
SL
CAMBRIDGE, CB25 9PB, UK
DESIGNED IN THE UK
MADE IN VIETNAM
CLASS 2 WIRING
8Ω LOAD IMPEDANCE RECOMMENDED
SPEAKER OUTPUTS
WI-FI
STBGAMEAVSATBDUHDPVR
ZONE2
OUT
OUTPUT1
eARC
OUTPUT2
In strong signal areas, the DAB/FM ‘T’ wire antenna supplied
can be used with reasonable results. Mount the antenna as
high up as possible on a wall.
In the UK the ‘T’-elements need to be positioned vertically
for DAB reception since broadcasts are vertically polarised.
In other localities, check with your JBL Synthesis dealer or try
both horizontal and vertical positions for best reception.
Try each usable wall of the room to see which gives best
reception and use tacks or adhesive tape to secure the
aerial in a ‘T’ shape, but note that no tacks should come into
contact with the internal wire of the aerial.
When installed and receiving DAB/FM, check the signal
strength by pressing the front panel or remote control’s
button until the signal quality indicator is displayed.
In weak signal areas, a high-gain, externally-mounted or roof-
mounted antenna is desirable in order to receive the highest
number of services.
Radio & Wireless Audio Connectors
