JBL SOURCE User Manual

9
Dolby Pro-Logic
Ò
Surround Processor/CD Player/Tuner SOURCE
LCD DISPLAY FLICKERS &
CD TRACKS ADVANCE BY
THEM SELVES

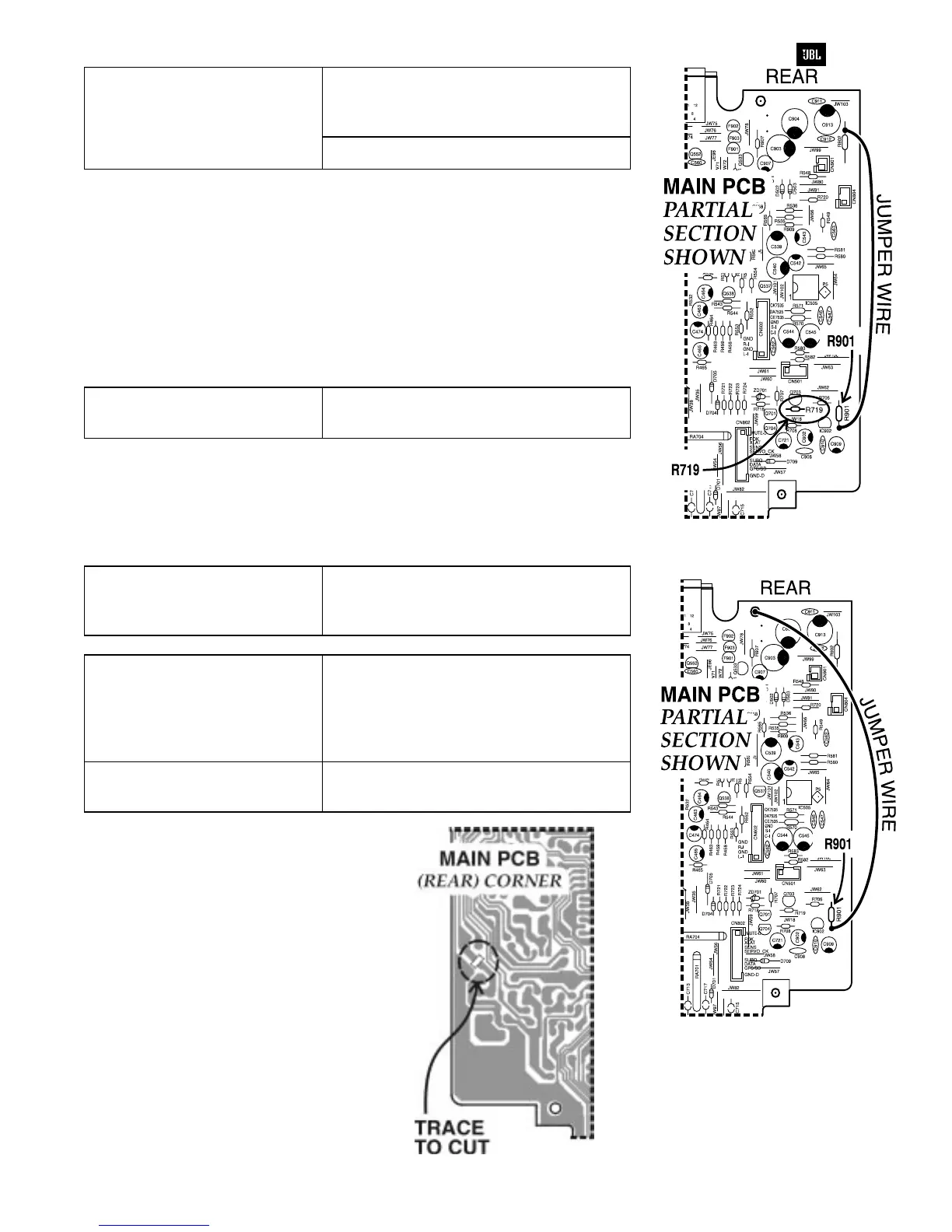

(1) On the MAIN PCB, add insulated
jumper from R901 (nearest C909)(+) to
R902 (nearest jumper J103).
(2) Cut out R901 (1 ohm resistor)
DISPLAY STAYS ON WHEN
POWER OFF
On the MAIN PCB, change R719 (10k
ohm resistor) to 1k ohm (QAF0650-102)
CD FUNCTION (PLAY,
TRACK UP) CHANGES TO
TV BY ITSELF
On the MAIN PCB, short pins 60 & 61
on IC701 together by solder or jumper
wire.
GOES TO STANDBY MODE
BY ITSELF WHEN PLAYING
CD’s
(1) On the MAIN PCB, add insulated
jumper from R901 (nearest C909)(+) to
upper hole in PCB (near C912 and
nearest plastic rivet) PCB will have to
be removed and soldered at the rear.
(2) Cut copper trace joining JW100 and
CN804 at rear of PCB (see illustration)

JBL SOURCE Specifications

General

Brand	JBL
Model	SOURCE
Category	Processor
Language	English
