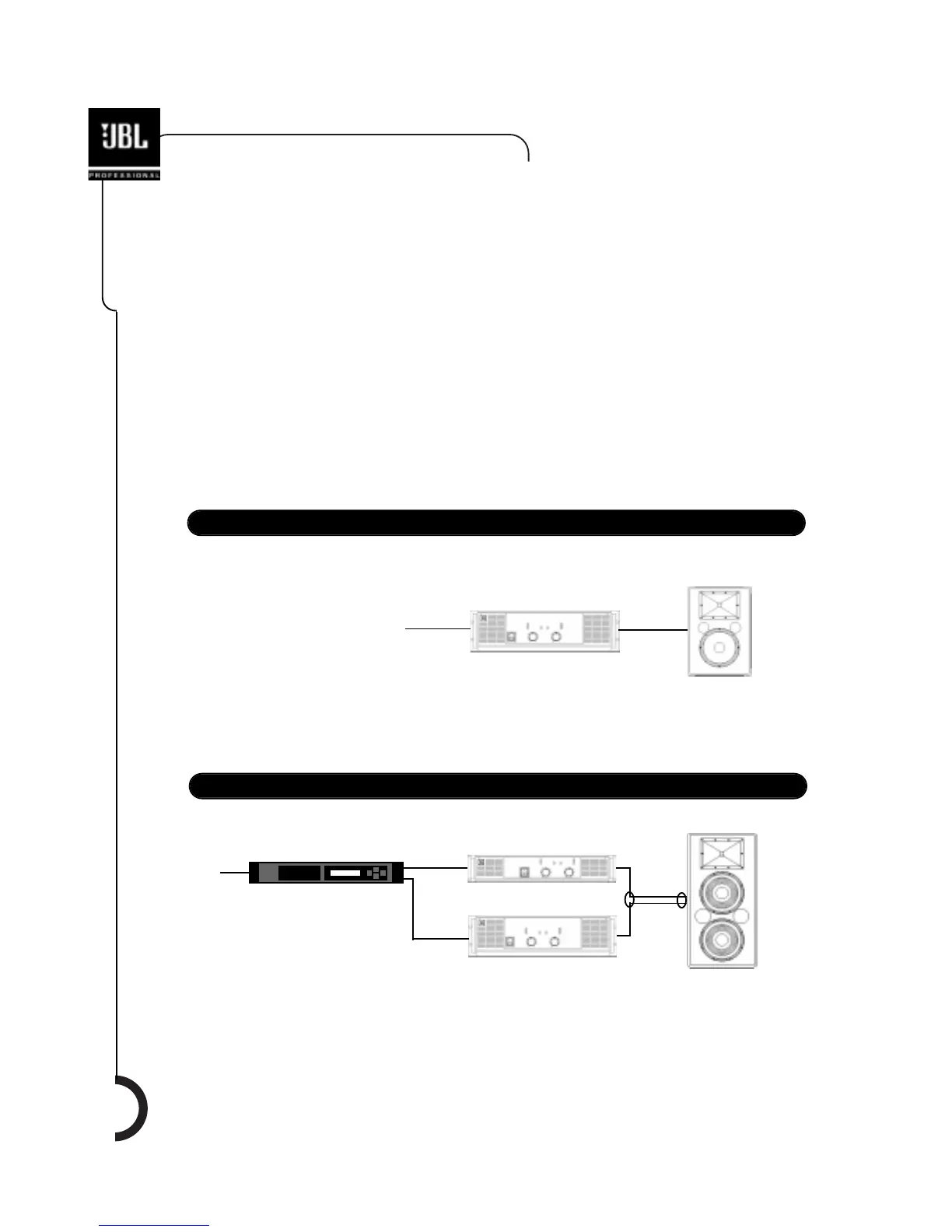

System Configurations
12
Full-range 2-Way
Bi-Amplified 2-Way
There are many different possible configurations of systems within the JBL SR-X Series. This section shows a
selection of key system configurations that will provide a basis for setting up any system, it includes: DSC
controllers, amplifiers and wiring connections. It is very important that you are familiar with the previous
sections of this User’s Guide and also the DSC260 system controller. Settings are available for the DSC260 for
bi-amplified, and bi-amplified plus subwoofer, operation of the SR-X systems. Please note that when using
the LF reinforcement systems, a suitable adjustment may be required in the DSC260 for accurate operation in
the system. This is a straight forward procedure which is clearly outlined in the DSC260 User’s Guide.
Note: Each line in the diagrams below represents a pair of wires. (E.g. both +1 and -1 connecting wire.)
Amplifier
Full Range
±1
LF ± 1
Input B
Output 6
HF ± 2
Output 4
DSC260
See “Crossovers and Controllers” for important information.
Amplifier
Amplifier
12
