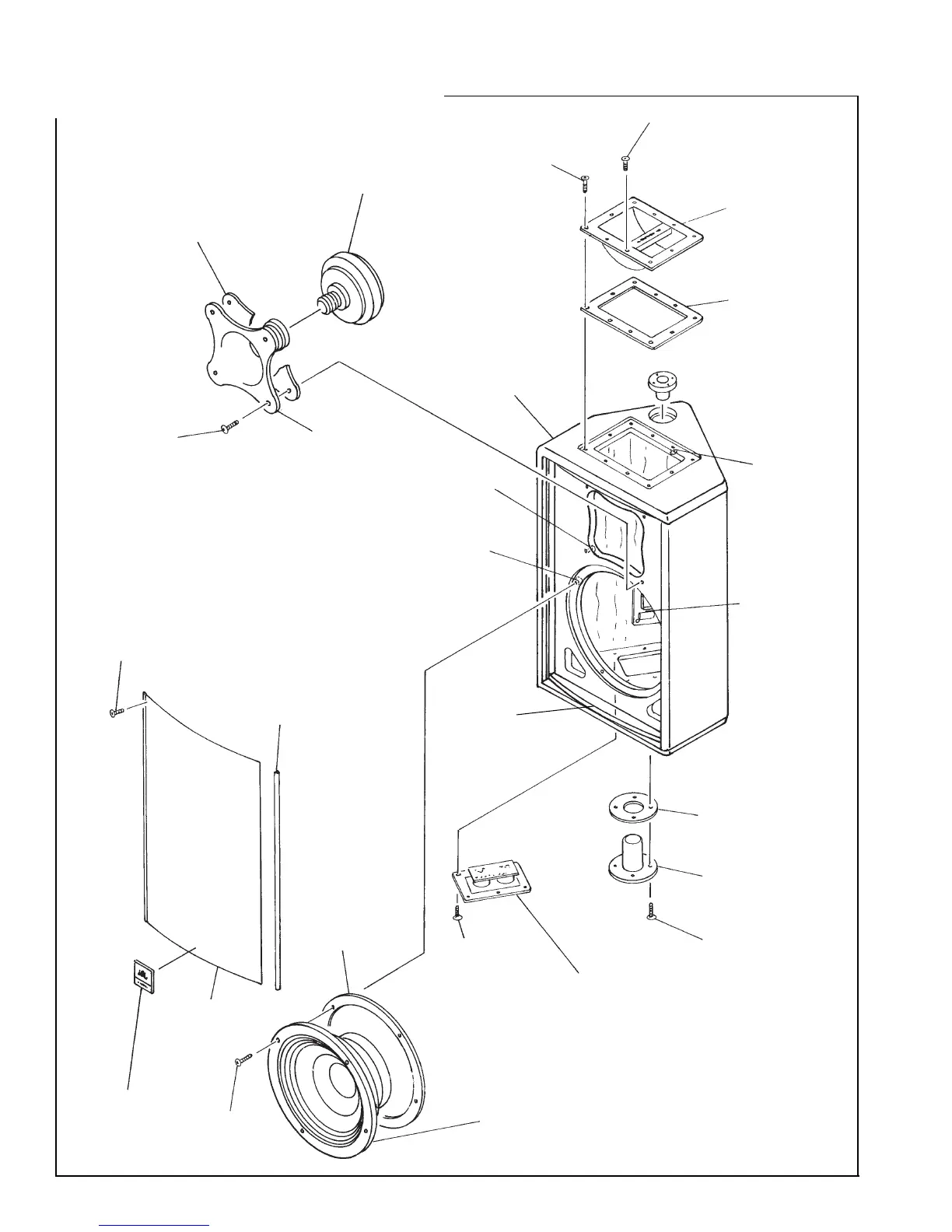

COMPONENT EXPLODED VIEW
Screw (10)
882-51110-12
6 x 3/4
OV PH
Screw (6)
882-51110-12
6 x 3/4
OV PH
Screw (4)
882-51110-12
6 x 3/4
OV PH
Grille
Support (2)
389-0033-00
Screw (4)
804-01110-16
10-32 x 1
FIL,PH, BLK,
ZINC
Gasket
359-00110-03
Screw (4)
804-41110-12
10-32 x 3/4
PAN, PH,
BLK,ZINC,LCS
Screw (6)
884-41110-12
No. 10 x 3/4
PNHD PH PB THD
Speaker, Low Freq
2206HPL
Cone Repl
C8R2206
Screw (4)
803-11010-16
8-32 x 1
FLT, PH, BLK
ZINC, LCS
Screw (4)
73709
Speaker, High Freq
2425HS
(66923X)
Diaph Repl
D8R2425
Network
129-20056-00
Network
129-20056-00
Pole Mount
339268-001
T-Nut (4)
61861
No. 10-32
T-Nut (4)
61861
No. 10-32
T-Nut (4)
61860
No. 8-32 x 3/8
Horn
126-00013-00
Grille
128-00397-00
Grille Trim (2)
382-00336-00
Name Plate
950-00037-00
Cabinet
SR4702X
(Not For Sale)
Gasket,
Handle
382-00337-00
Gasket
63284
Gasket
359-00212-00
Handle (2)
923-00022-00
NOTE:DURAFLEX REPAIR KIT
16677
Screw (4)
882-51110-12
6 x 3/4
OV PH
