JBL SR4726X/F
JBL SR4726X/F

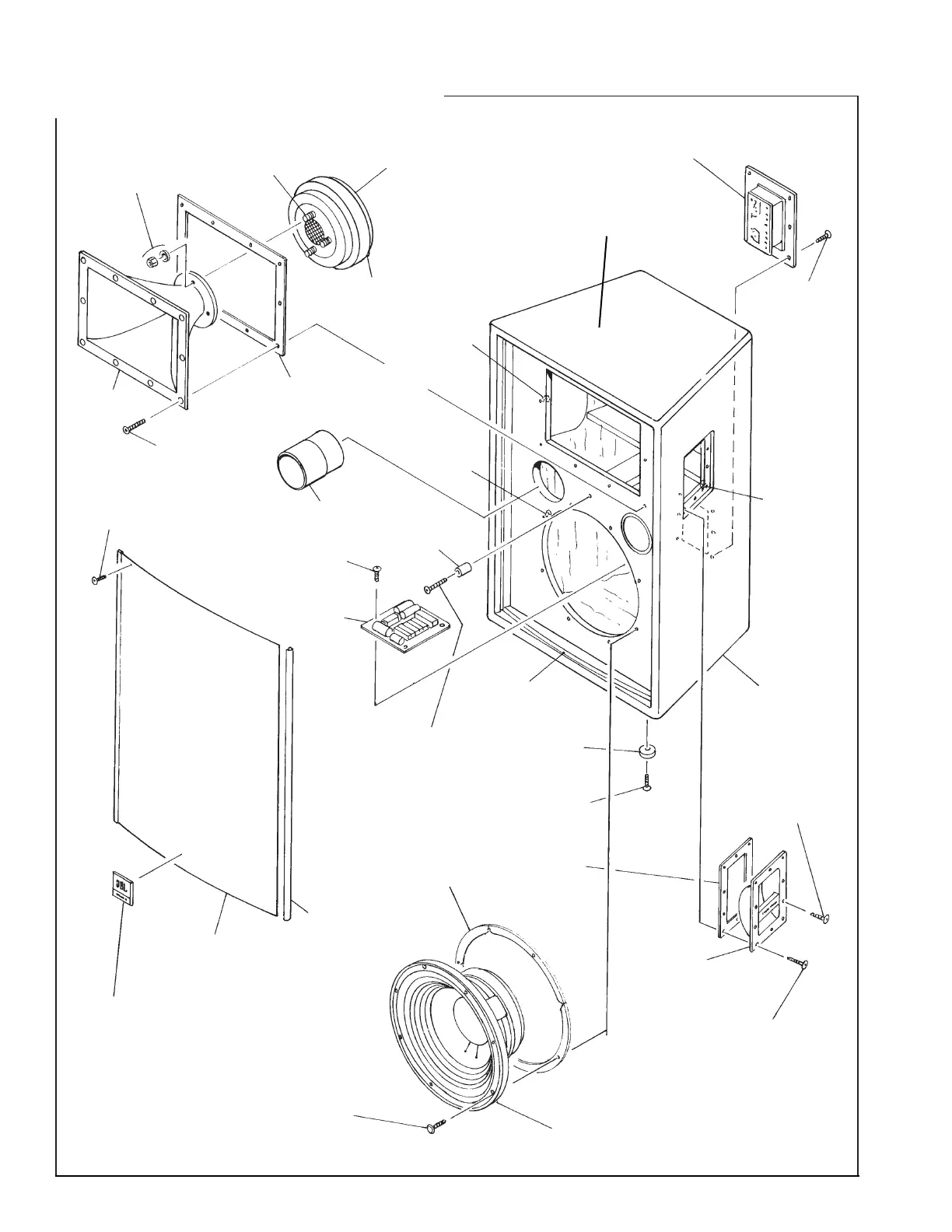

COMPONENT EXPLODED VIEW
Screw (10)
882-51110-12
6 x 3/4
OV PH
Screw (4)
882-51110-12
6 x 3/4
OV PH
Screw
883-31110-40
No. 8 x 2 1/2
TR HD PH PD
Grille
Support (2)
389-0032-00
Screw (8)
804-01110-16
10-32 x 1
FIL, PH, BLK,
ZINC
Gasket
75710
Screw (8)
804-41110-12
10-32 x 3/4
PAN,PH,BLK,
ZINC,LCS
Screw (12)
884-41110-12
No. 10 x 3/4
PNHD PH PB THD
Speaker, Low Freq
2226HPL
Cone Repl
C8R2226
Screw (10)
806-31010-16
1/4-20 x 1
TRUSS PH BLK
ZINC
Screw (4)
64586
No. 10 x 1
RD HD
Screw (6)
61867
No. 6 x 3/4
OV HD PH
Speaker, High Freq
2447J
Diaph Repl
D16R2450
Network
129-20062-00
Network
129-20062-00
Binding Post
RED 33750
BLK 33751
Stud (4)
75815
1/4-20
Foot (4)
924-00013-00
Stand-Off
819-00000-00
T-Nut (8)
61861
No. 10-32
T-Nut (8)
61861
No. 10-32
T-Nut (10)
834-44011-
00
1/4-20 BLK
Port Tube (2)
47909-08
(Not For Sale)
Horn
2381
126-00000-00
Hardware
Kit
76149
Grille
128-00395-00
Trim, Grille (2)
382-00336-02
Name Plate
950-00037-00
Cabinet
SR4726X
(Not For Sale)
Gasket,
Handle (2)
382-00337-00
Gasket (4)
71129-01
Handle (2)
923-00022-00
NOTE: BLACK DURAFLEX
REPAIR KIT 30052
Screw (16)
818-73714-35
M10 x 35MM
SCKT, HEX, BLK, ZINC
Washer (4)
845-00110-08
5/16 Flat
