9
www.jbl.com
English

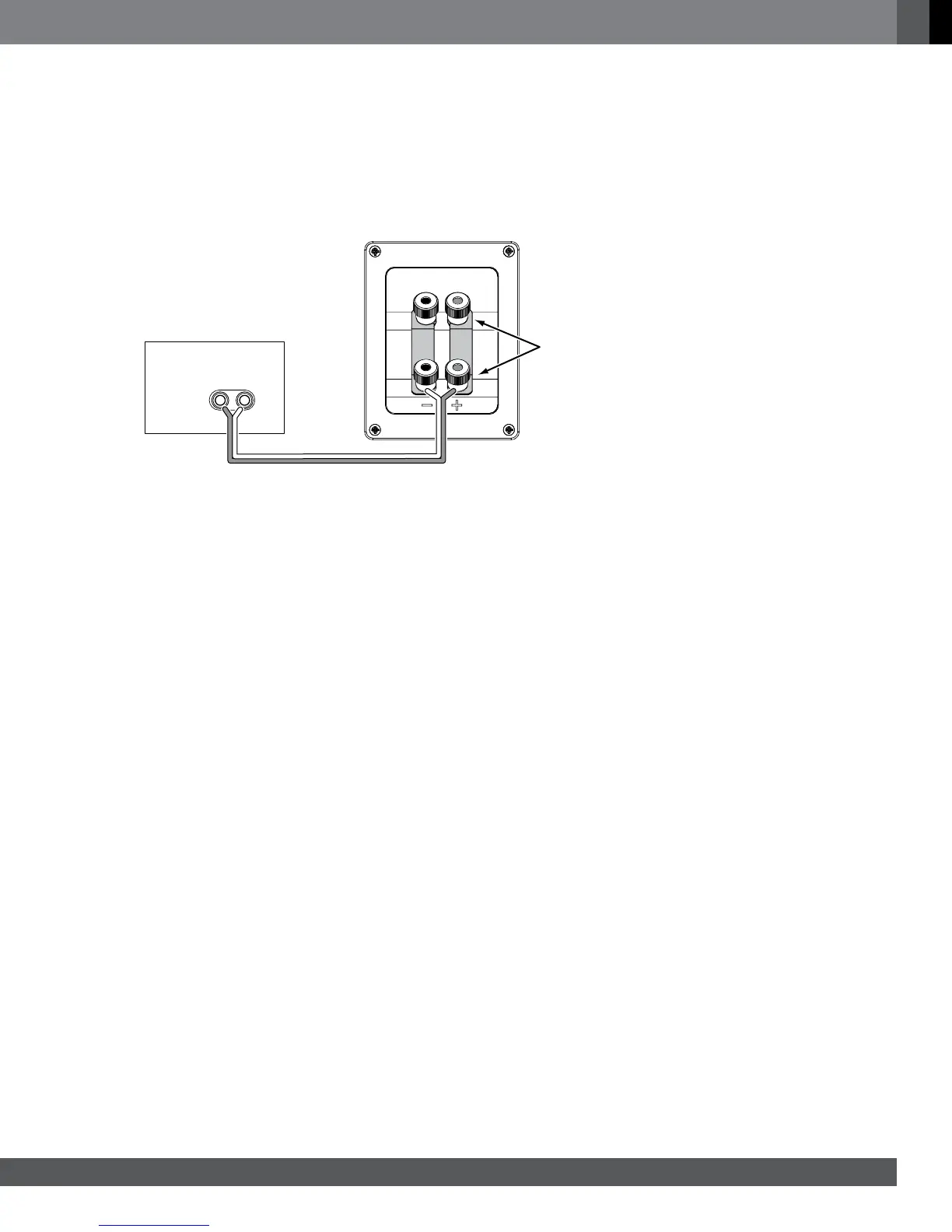

BASIC SINGLE-WIRE CONNECTION
To connect the speakers using a single wire, connect the amplifier to each speaker as shown in the illustration below.
You can use either set of connectors on the connector panel.
IMPORTANT: Do not remove the metal jumper bars from between the two sets of connectors when
connecting the speaker wires.
+ –
Use Either Set
of Connectors
Do Not Remove
Jumper Bars
Receiver or Amplifier
(One Channel Shown)
Speaker
Connector Panel
To Next Page
