15 - Service Point Locations
Introduction
The following illustrations identify the service points
for the operator to perform the daily and weekly
maintenance tasks.

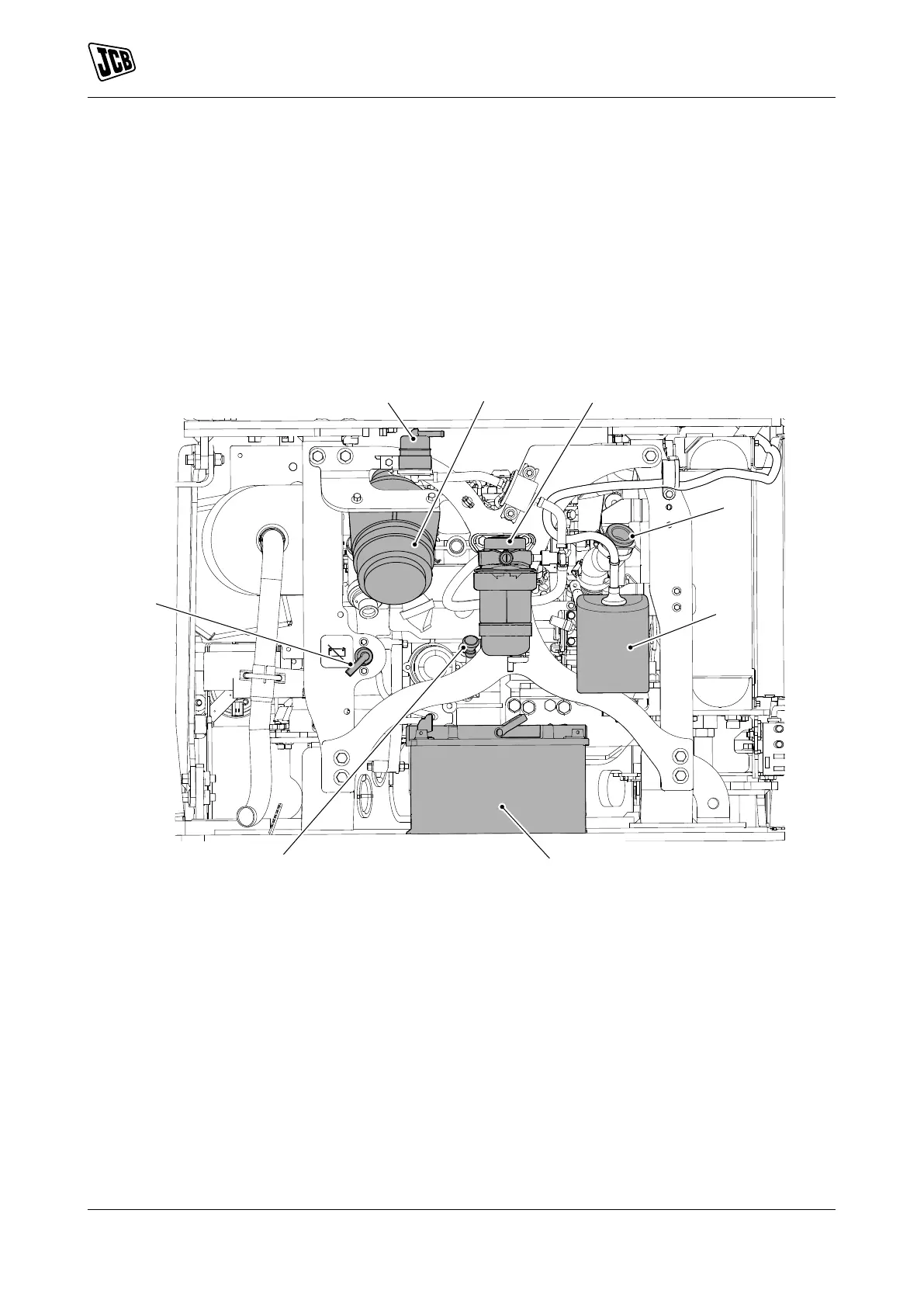

Engine Compartment
Figure 5.
C
H
A
B
D
E
G
F
A Air filter B Water separator
C Oil filler cap D Coolant expansion bottle
E Battery F Engine oil dipstick
G Battery isolator H Fuel pre filter
