01 - Machine
03 - Safety
27 - Maintenance Positions
01 - 16 9813/6750-1 01 - 16
not push on the front glass if installed. The glass
could break.
4. Install the two rear mounting nuts and
compression plates to secure the cab/canopy.
Torque tighten to
Torque: 205N·m
The compression plate is critical for ROPS (Roll-Over
Protective Structure) integrity. Only replace with the
correct JCB approved part.
Never operate the machine with the cab/canopy in
the raised position. Always secure the cab/canopy
using the rear mounting nuts and compression
plates tightened to the correct torque. If they
are not installed the cab/canopy could tip forward
unexpectedly.

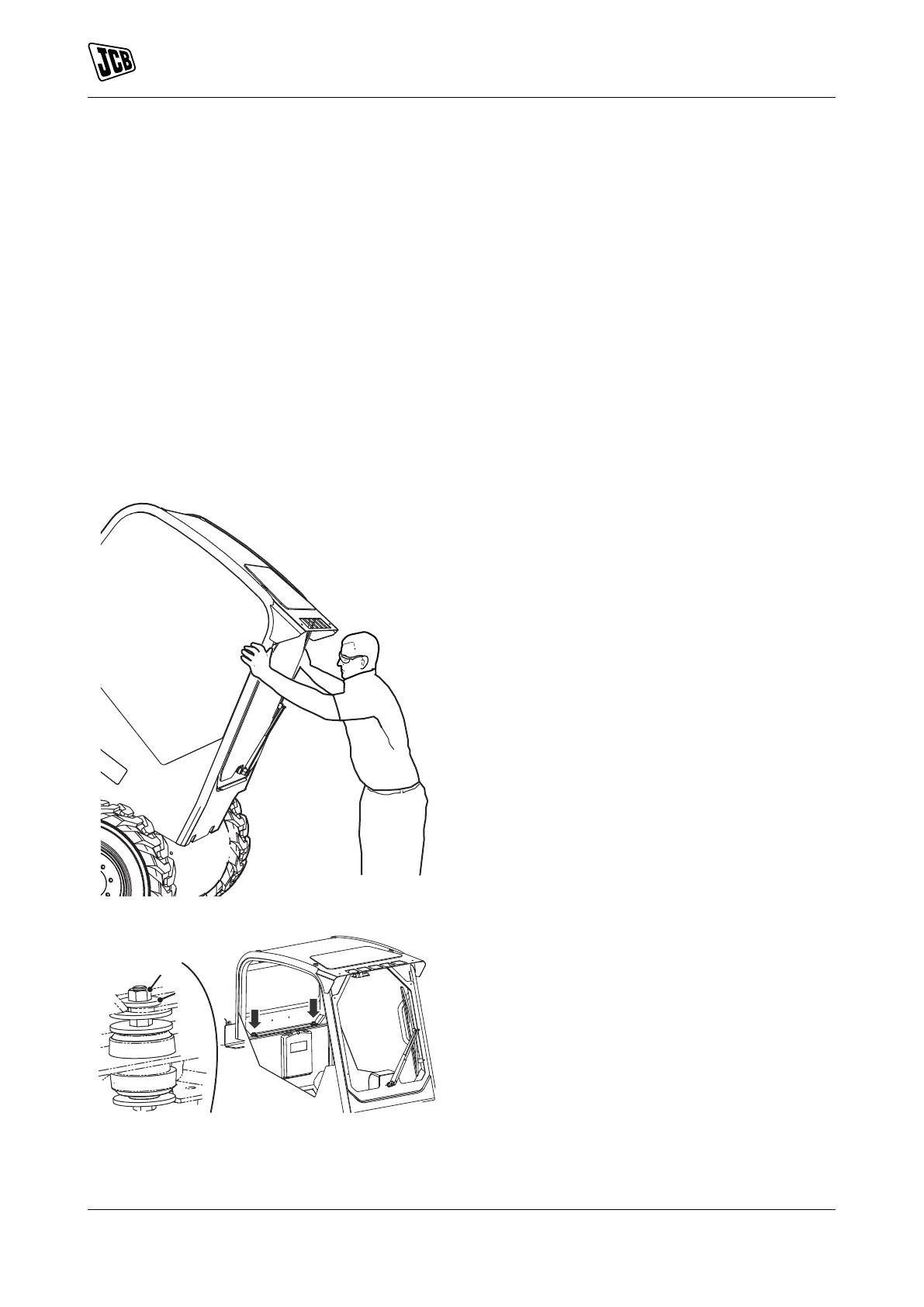

Figure 13.
Figure 14.
A Mounting nut
C Compression plate
