03 - Attachments and Options
09 - Lift Arm Quickhitch
03 - Mechanical Quickhitch
03 - 10 9813/6750-1 03 - 10
Disconnect
1. Stop and park the machine on level ground.
Refer to (PIL 01-03).
2. Lower the shovel/attachment to the ground.
3. Raise the safety control locks and dismount from
the machine.
4. Stop the engine and discharge the hydraulic
pressure. Refer to (PIL 30-00).
5. If appropriate disconnect the attachment
hydraulic hoses lift arm pipework.
6. Pull the levers (one each side of quickhitch plate)
fully out, as at position, to retract the quickhitch
locking pins.
7. Return to the cab seat, lower the control locks
and start the engine.
8. Operate the lift control lever as if to roll forward
the shovel/attachment. When the quickhitch
plate has disengaged from the lips on the shovel/
attachment, reverse the machine clear.
9. Push the levers fully in.

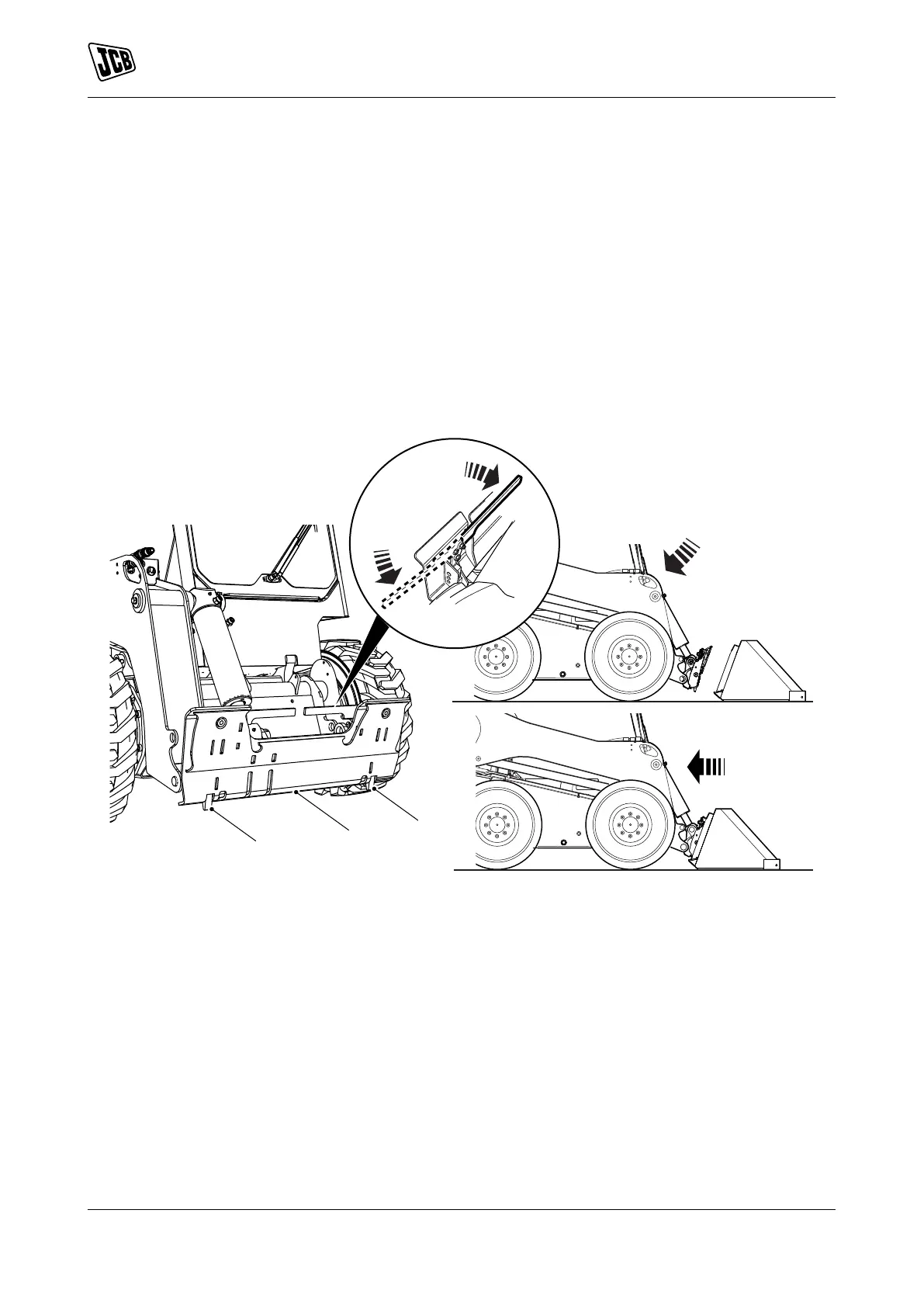

Figure 20.
A Quickhitch plate B Levers out
C Levers in D Quickhitch locking pins
