jcb 210 Series User Manual

210X 220X 19
Standard attachments
Start unlock process
Specialised attachments
Remove attachment
Confirm process
Change attachment
Indicator
Lock quickhitch
To start quick hitch unlock
process ensure hydraulics
are live then press quick hitch
sequence button (A).
To disengage the
quickhitch jaws,
crowd the
attachment for
3 seconds.
The attachment
can now be
removed.
Operate the machine to engage
the jaw (D) with the attachment (E)
and then full crowd the attachment
to align latch.
To engage the lock on the
quickhitch press the following
button (B) and visually check
hitch is locked.
When the sequence is
confirmed the confirmation
button will flash and a bucket
crowd symbol will show on the
display (B).
Switch (B) will flash and the
buzzer will sound constantly for
5 seconds indicating confirmation
is required. Press quickhitch
confirm button (B). If not pressed
within 5 seconds the process will
need to be
restarted.
1
4
2
5
3
6
A
B
C
A
B
C
A
B
C

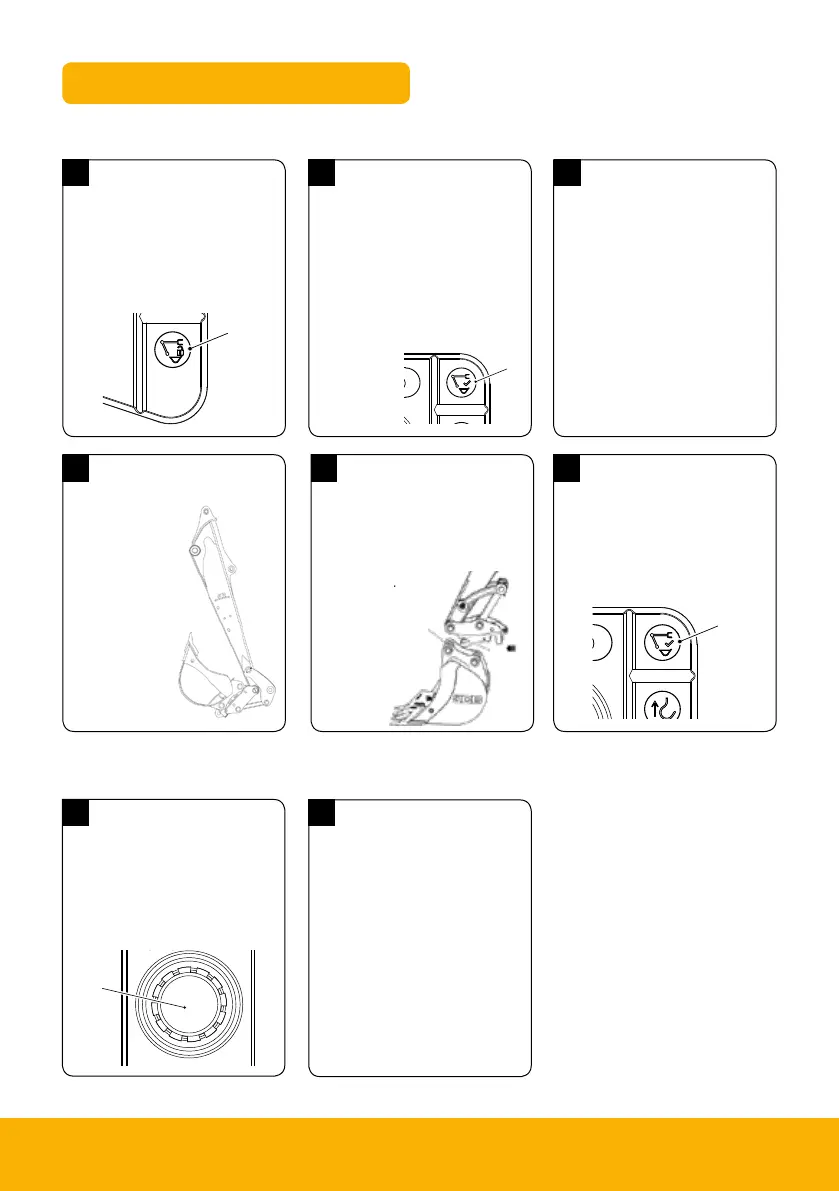

Hydraulic quick hitch
4a 4b
Crowd override Remove attachment
For large attachments where
bucket crowding is not possible
follow steps 1 to 3, and then hold
rotary dial (C) for 10 seconds.
An audible buzzer will sound
after 10 seconds to indicate that
the jaws of the quickhitch are
open. The attachment can now
be removed.
Specialised attachments are any
attachment that when crowded
fully could foul the boom/dipper.
A
B
C
D
E
A
B
