01 - Machine
09 - Description
15 - Service Point Locations
01 - 22 9813/9600-2 01 - 22
15 - Service Point Locations
Introduction
Service Points - Hydraulics

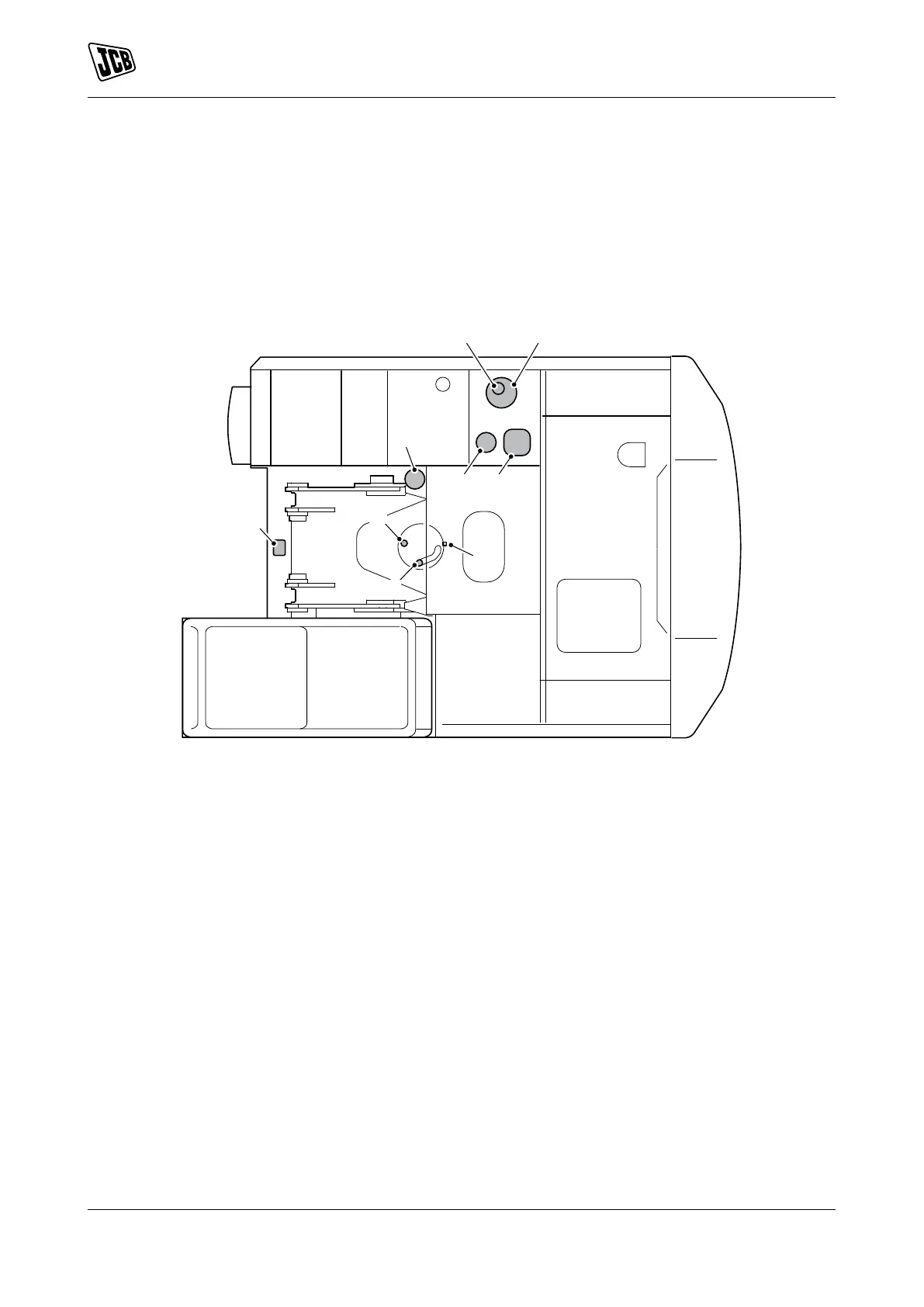

Figure 4. Upper structure
A Breather - hydraulic tank B Cover - suction strainer
C Cover - drain line filter D Cover - main filter
E Oil drain plug - slew motor gearbox (access
from below the machine)
F Oil filler port - slew motor gearbox (if applicable)
G Oil level dipstick - slew motor gearbox H Grease port - slew ring gear
J Filter - rockbreaker / auxiliary return line
