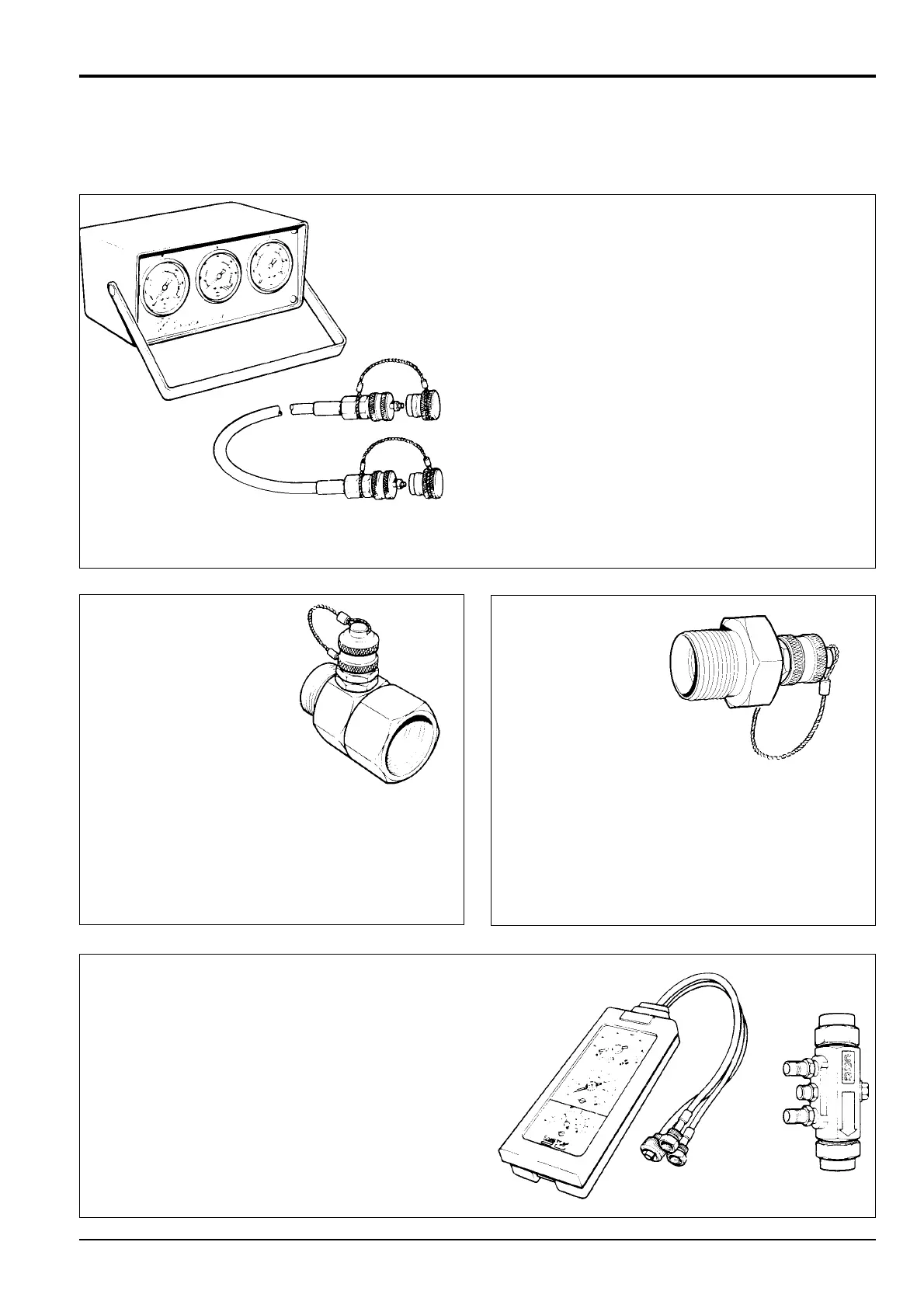

Pressure Test Adapters
892/00255 1/4 in BSP x Test Point
892/00256 3/8 in BSP x Test Point
892/00257 1/2 in BSP x Test Point
892/00258 5/8 in BSP x Test Point
816/15118 3/4 in BSP x Test Point
892/00259 1 in BSP x Test Point
892/00260 1.1/4 in BSP x Test Point
892/00261 5/8 in UNF x Test Point
Pressure Test 'T' Adapters
892/00262 1/4 in M BSP x 1/4 in F BSP x Test Point
816/55038 3/8 in M BSP x 3/8 in F BSP x Test Point
816/55040 1/2 in M BSP x 1/2 in F BSP x Test Point
892/00263 5/8 in M BSP x 5/8 in F BSP x Test Point
892/00264 3/4 in M BSP x 3/4 in F BSP x Test Point
892/00265 1 in M BSP x 1 in F BSP x Test Point
Hydraulic Circuit Pressure Test Kit
892/00253 Pressure Test Kit
892/00201 Replacement Gauge 0-20 bar (0-300 lbf/in
2
)
892/00202 Replacement Gauge 0-40 bar (0-600 lbf/in
2
)
892/00203 Replacement Gauge 0-400 bar (0-6000 lbf/in
2
)
892/00254 Replacement Hose
892/00347 Gauge Connector
4 - 4
Section 1 General Information
9803/7110
Section 1
4 - 4
Issue 2
S188130
S188120
S200140
Service Tools(cont'd)
Section E - Hydraulics
Flow Test Equipment
892/00268 Flow Monitoring Unit
892/00269 Sensor Head 0 - 100 l/min (0 - 22 UK gal/min)
892/00270 Load Valve
1406/0021 Bonded Washer
1604/0006 Adapter 3/4 in M x 3/4 in M BSP
1612/0006 Adapter 3/4 in F x 3/4 in M BSP
892/00271 Adapter 3/4 in F x 5/8 in M BSP
892/00272 Adapter 5/8 in F x 3/4 in M BSP
816/20008 Adapter 3/4 in F x 1/2 in M BSP
892/00275 Adapter 1/2 in F x 3/4 in M BSP
892/00276 Adapter 3/4 in F x 3/8 in M BSP
892/00277 Adapter 3/8 in F x 3/4 in M BSP
