jcb 2DX Service Manual

Hand Pump Equipment
892/00223 Hand Pump
892/00137 Micro-bore Hose 1/4 in BSP x 5 metres
892/00274 Adapter 1/4 in M BSP x 3/8 in M BSP
Taper
892/00262 1/4 in M BSP x 1/4 in F BSP x Test Point
892/00706 Test Probe
892/00278 Gauge 0 - 40 bar (0 -
600 lbf/in
2
)
892/00279
Gauge 0 - 400 bar (0 -
6000 lbf/in
2
)
892/00252 Test Block for A.R.V.
Tool Components for Hamworthy A.R.V. testing

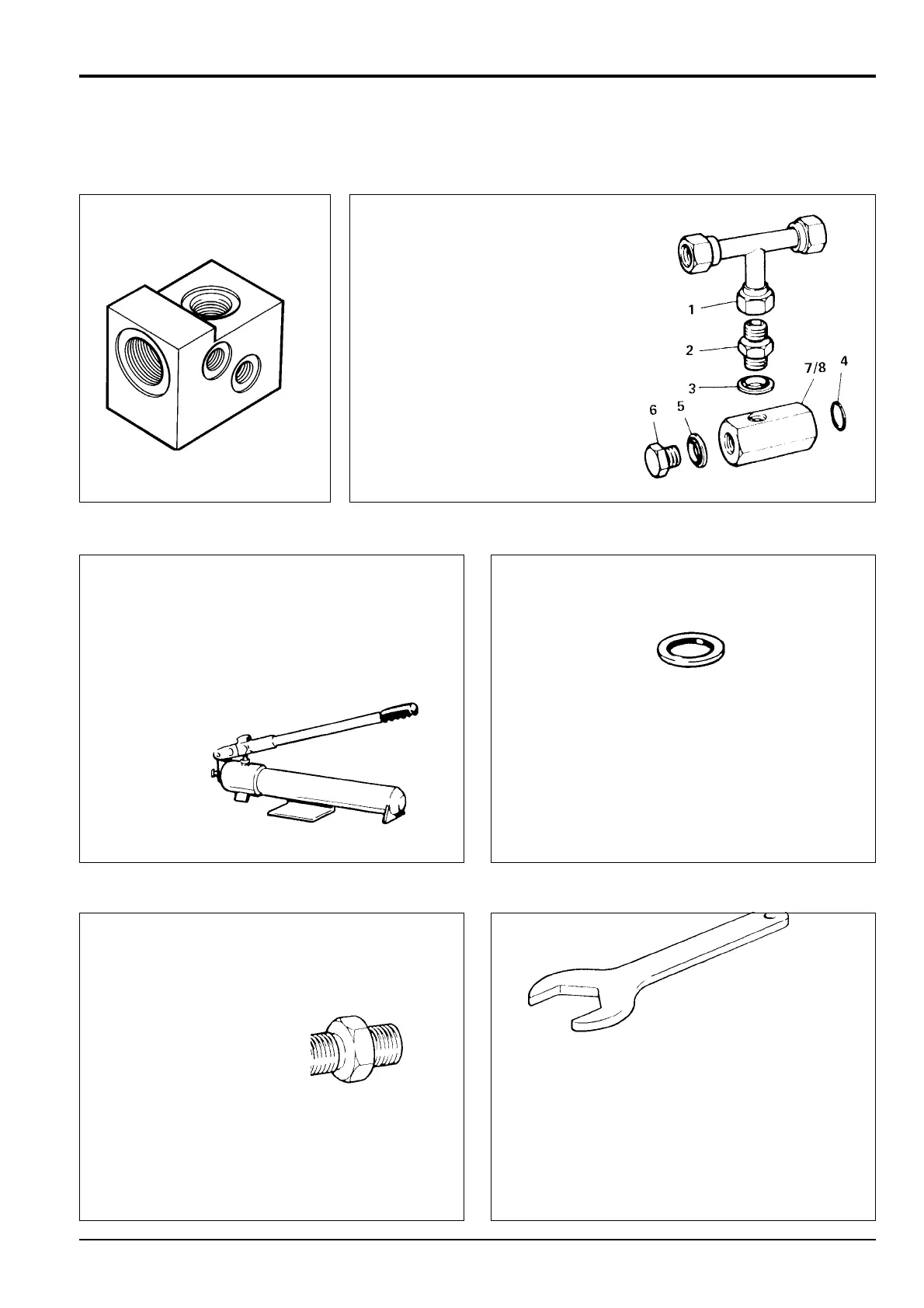

1 992/02400 Tee-piece
2 1606/0003 Adapter 3/8 in. x 1/4 in. BSP
3 1406/0011 Bonded Washer
4 2401/0103 ‘O’ Ring
5 1406/0018 Bonded Washer
6 992/01003 Plug
7 992/10200 Body for Hamworthy A.R.V.
8 892/00153 Test Block Excavator A.R.V.
4 - 5
Section 1 General Information
9803/7110
Section 1
4 - 5
Issue 4*
S193850
S220840
S230730
S188140
Service Tools
(cont'd)
Section E - Hydraulics
Hexagon Spanners for Ram Pistons and End Caps
992/10800 50 mm A/F
992/09300 55 mm A/F
992/09400 65 mm A/F
Male Adapters - BSP x BSP
1606/0003 3/8 in x 1/4 in
1604/0003 3/8 in x 3/8 in
1606/0004 1/2 in x 1/4 in
1606/0007 1/2 in x 3/8 in
1604/0004 1/2 in x 1/2 in
1606/0008 3/4 in x 3/8 in
1606/0009 3/4 in x 1/2 in
1604/0006 3/4 in x 3/4 in
Bonded Washers
1406/0011 1/4 in BSP
1406/0018 1/2 in BSP
1406/0021 3/4 in BSP
1406/0029 1.1/4 in BSP
S193860
S193930
*
