03 - Attachments, Couplings and Load Handling
27 - Bucket
00 - General
03 - 13 9813/6400-2 03 - 13

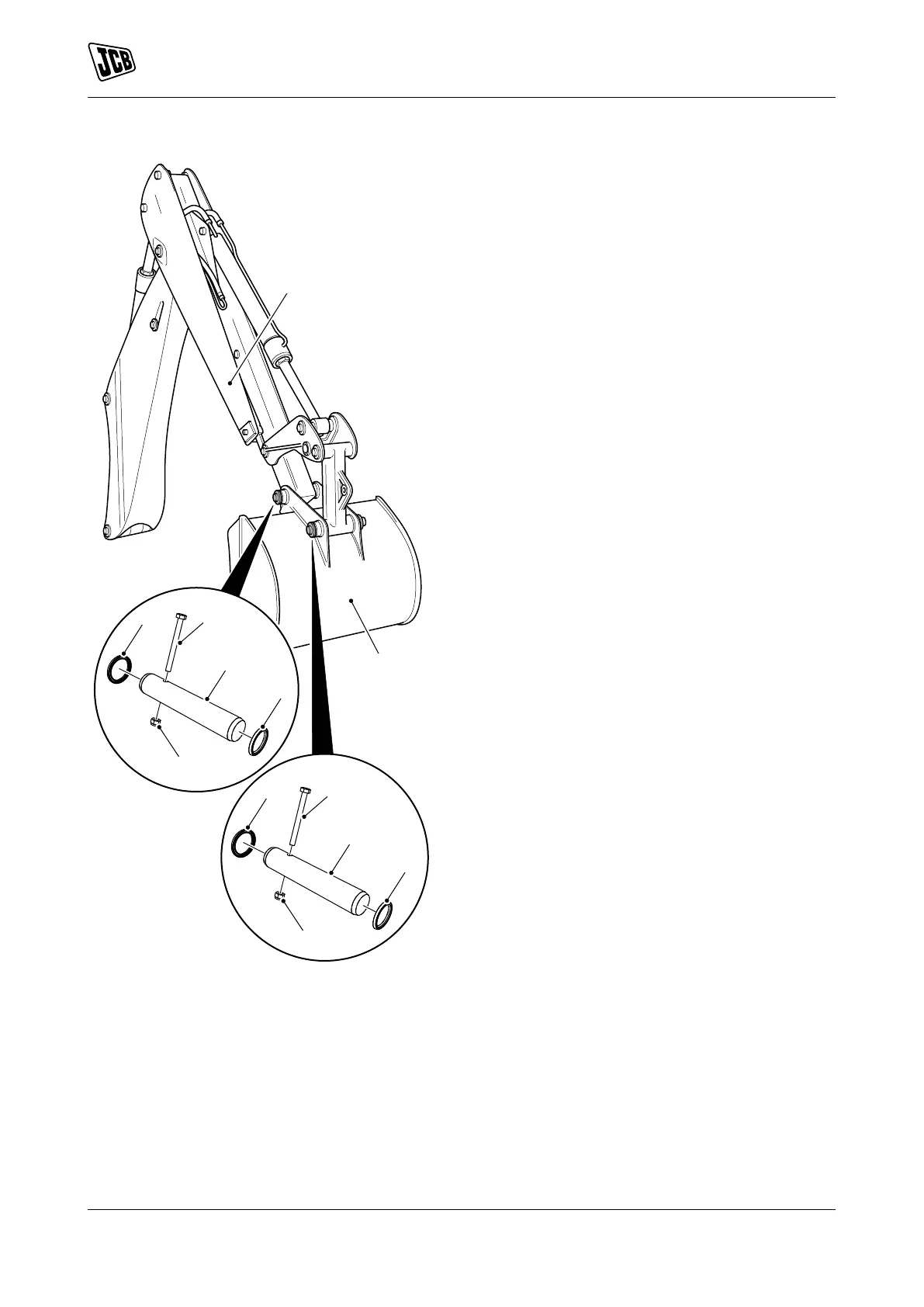

Figure 8.
A Tipping lever lynch pin
B Spacer
C Pivot pin
D Dipper pivot lynch pin
E Spacer
F Pivot pin
G Bucket
H Dipper
Install
1. Use a suitable lifting device to position the bucket
flat on level ground.
2. Reverse the machine while aligning the dipper
end with the bucket tipping lever.
3. Carefully operate the excavator controls to line
up the holes in the dipper and tipping link with the
holes in the bucket.
4. Install the pivot pin. Install the spacer and the
lynch pin.
5. After the dipper pivot pin has been locked in,
install the tipping link pivot pin, spacer and lynch
pin.
