15 - Engine
00 - General
00 - General
15 - 4 9806/6900-3 15 - 4

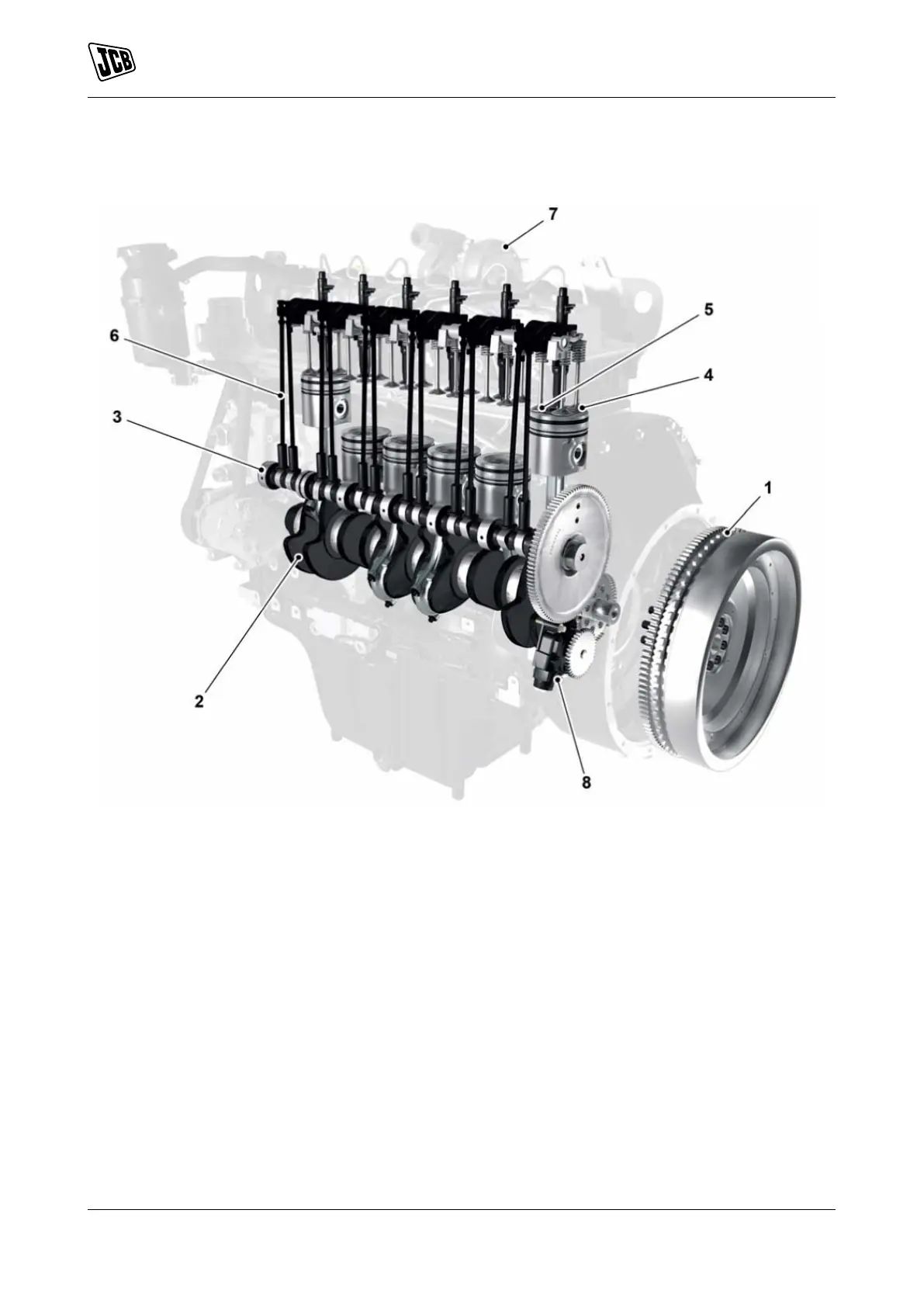

Figure 3.
1 Flywheel 2 Crankshaft
3 Camshaft 4 Inlet valves (12 off)
5 Exhaust valves (12 off) 6 Push rods (12 off)
7 Turbocharger 8 Lubrication oil pump
