Component Identification
6 Cylinder Mechanical Engine
The following identifies the main components of a
typical engine assembly visible from the exterior.
Some variants may differ in detail.

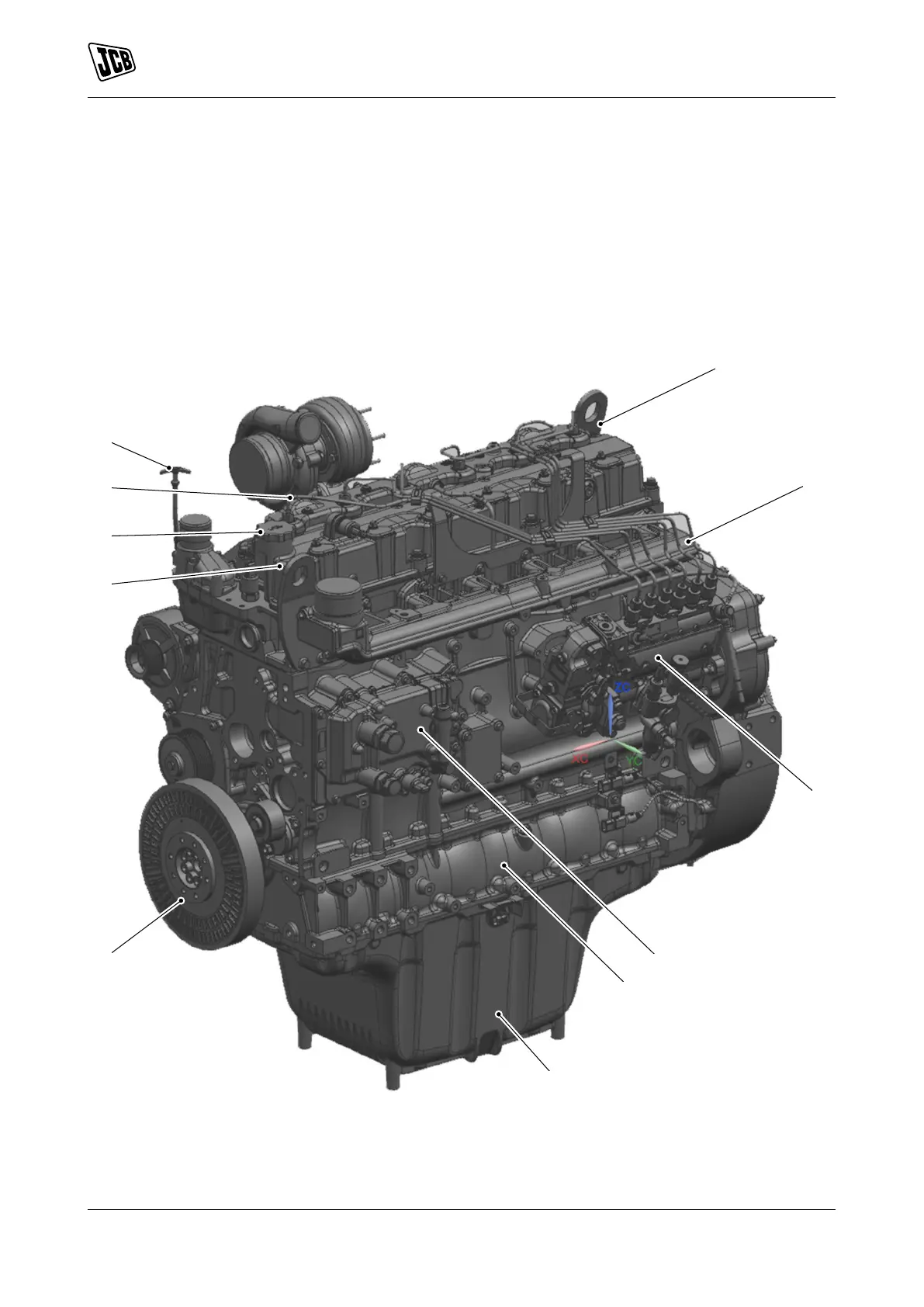

Figure 6. Left hand Side
A
B
C
D
E
F
G
H
J
K
L
A Lubrication oil dipstick B Fuel injectors and high pressure fuel pipes
C Lubrication oil filler cap D Rocker cover
E Torsional vibration damper F Lubrication oil sump
G Bedplate housing H Oil cooler housing with ports for remote oil filter
