15 - Engine
00 - General
00 - General
15 - 6 9806/6900-3 15 - 6
6a Piston ring - top compression (6 off) 6b Piston ring - 2nd compression (6 off)
6c Piston ring - oil control (6 off) 6d Gudgeon pin (6 off)
6d Gudgeon pin circlip (12 off)
As viewed on the rear left side. Refer to Figure 5.

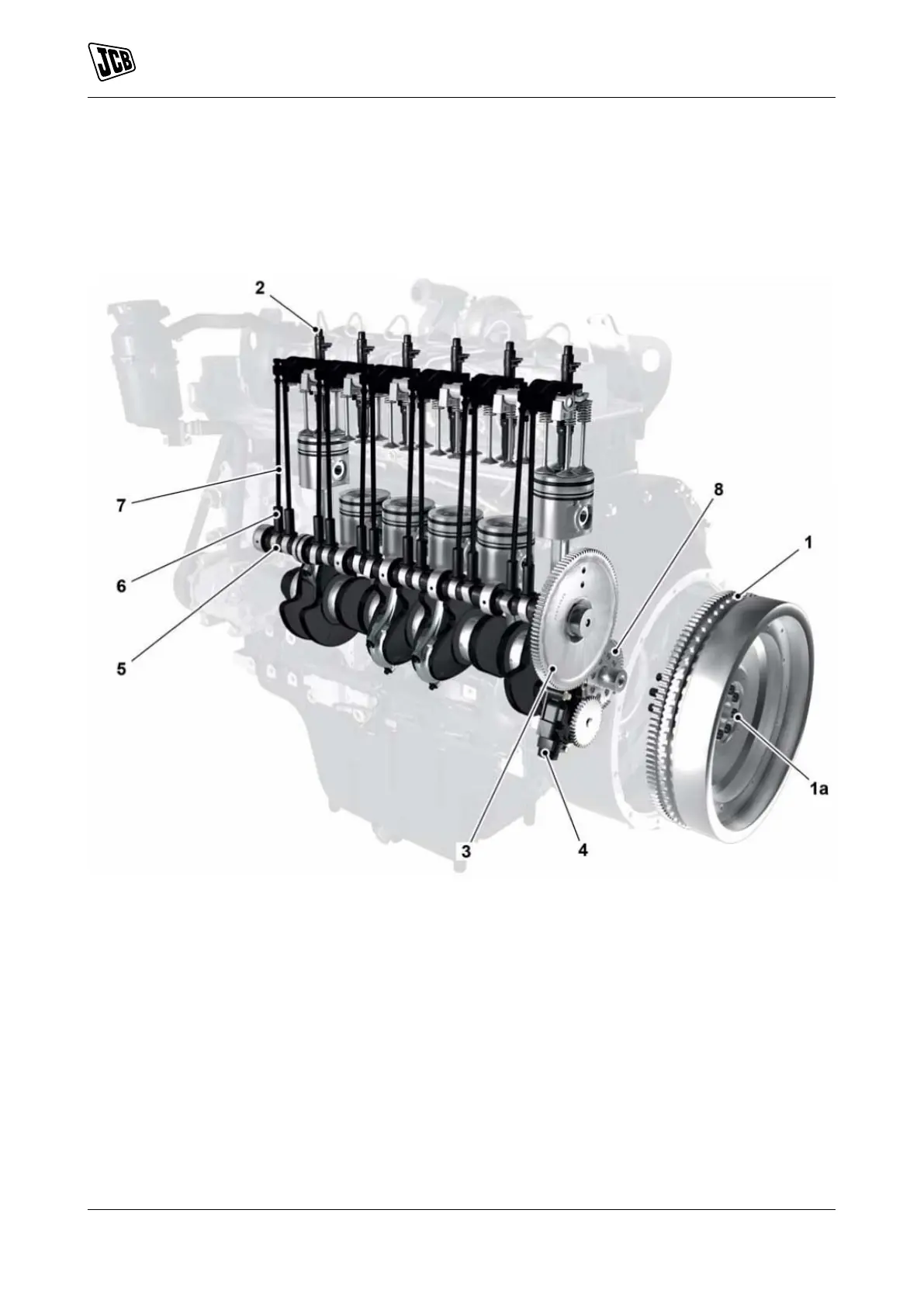

Figure 5.
1 Flywheel 1a Flywheel - crankshaft fixing bolts (8 off)
2 Fuel injector (atomiser) (6 off) 3 Camshaft drive gear
4 Lubrication oil pump 5 Camshaft
6 Tappet (12 off) 7 Push rod (12 off)
8 Flywheel hub
