01 - Machine
03 - Safety
27 - Maintenance Positions
01 - 13 9813/5300-1 01 - 13

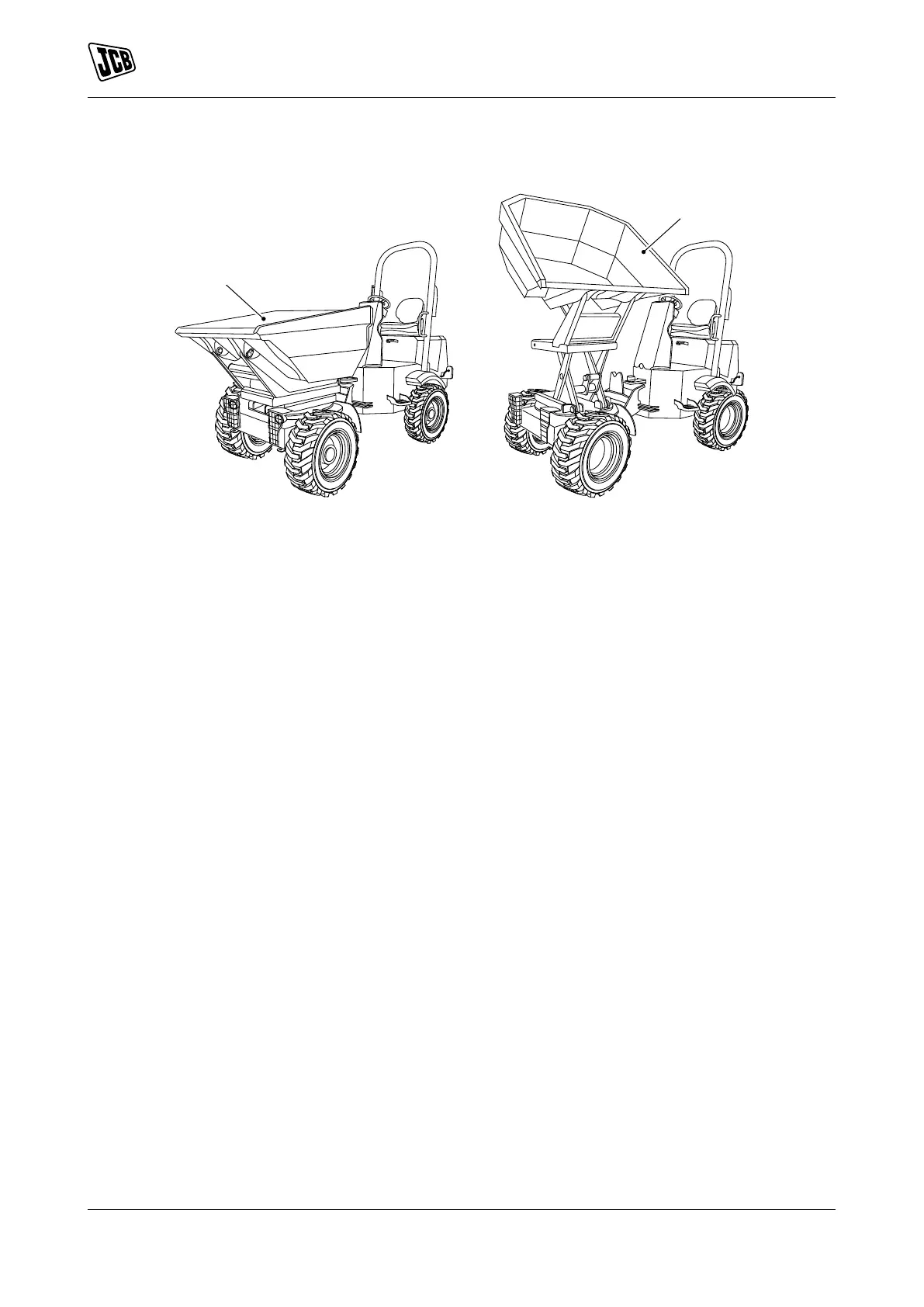

Figure 3.
A Dumper body lowered B Dumper body raised
Dumper Body Lowered
1. Park the machine on level solid ground.
2. Lower the dumper body.
3. Stop the engine and remove the ignition key.
4. Disconnect the battery to prevent accidental
operation of the engine. Refer to (PIL 33-03).
5. If necessary, put blocks against the two sides of
the wheels before you get below the machine.
Dumper Body Raised
1. If you raise the dumper body to get access for
maintenance, you must install the maintenance
strut to support the dumper body. Refer to (PIL
06-69).
