jcb 6TFT User Manual

06 - Body and Framework
06 - Access Cover
06 - Engine Compartment
06 - 15 9813/5300-1 06 - 15
Remove and Install
Remove
1. Make the machine safe. Refer to (PIL 01-03).
2. Isolate the battery. Refer to (PIL 33-03).
3. Remove the ECM (Engine Control Module).
Refer to (PIL 33-45).
4. Remove the rear road light wiring harness.
5. Open the engine compartment cover. Refer to
(PIL 06-06).
6. Loosen the clamp 1.
7. Disconnect the air filter intake pipe from the
engine compartment cover.

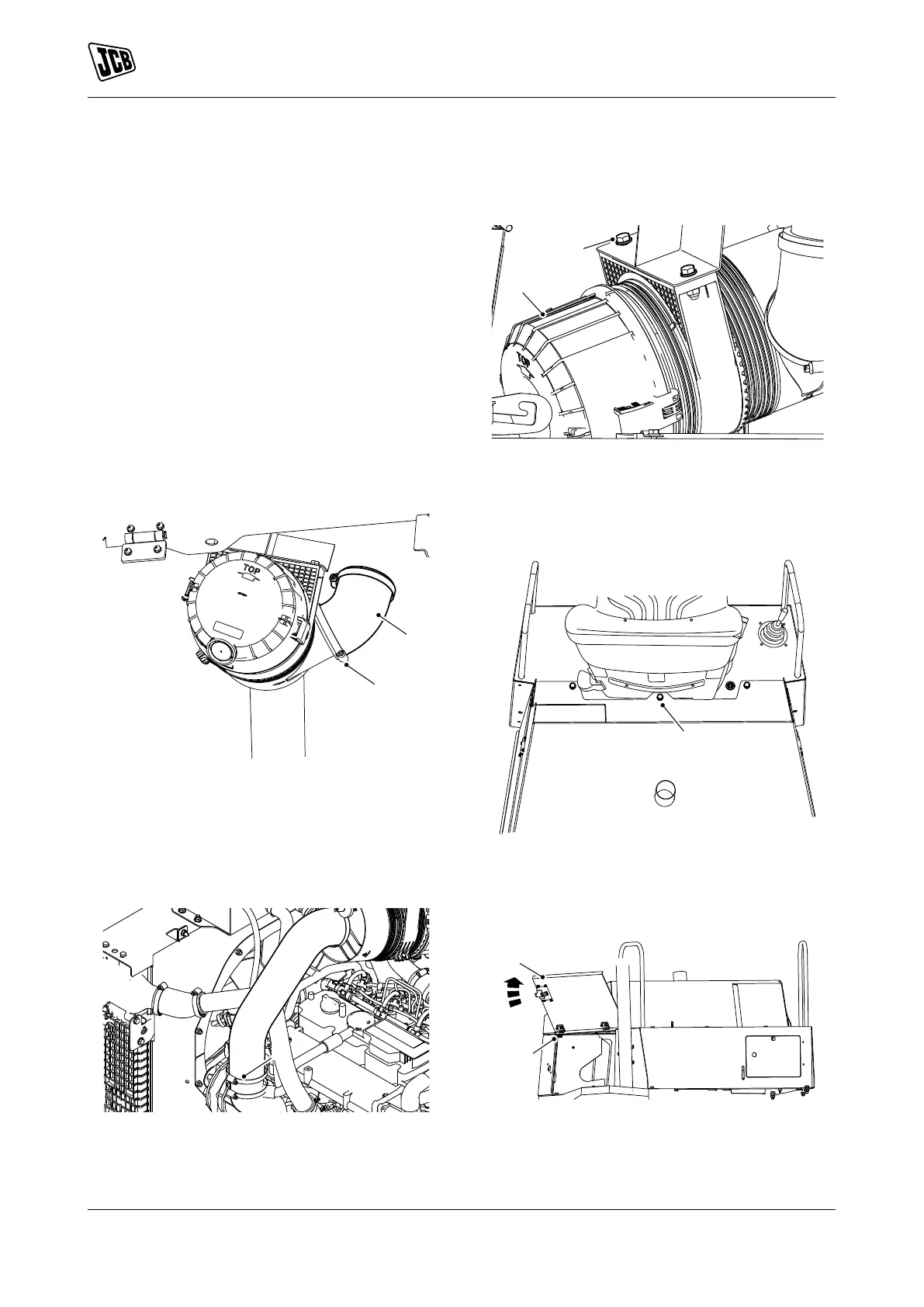

Figure 9.
C
D
C Clamp 1
D Air filter intake pipe
8. Loosen the clamp 2.
9. Disconnect the air cleaner from the engine
turbocharger (if installed).
Figure 10.
E
E Clamp 2
10. Disconnect the electrical wires from the air
pressure sensor.
11. Remove the bolts 1.
12. Remove the air filter assembly.
Figure 11.
F
G
F Bolts 1
G Air filter assembly
13. Remove the front bolts 2 from the engine
compartment cover.
Figure 12.
A
A Bolts 2
14. Remove the rear bolts 3 from the engine
compartment cover.
Figure 13.
B
H
B Engine compartment cover
H Bolts 3
15. Remove the engine compartment cover from the
machine with suitable lifting equipment.
