Control panel – DSE 8610
Fig 9
This button places the module into its STOP/RESET mode. This will clear any alarm
conditions for which the triggering criteria have been removed. If the engine is running
and the module is put into STOP/RESET mode, the module will automatically instruct the
generator to unload (‘Close Generator output’ becomes inactive. In STOP/RESET mode
the generator remains at rest.
This button places the module into its MANUAL mode. Once in MANUAL mode, the
module responds to the start button to start the generator and run it off load. To place
the generator on load, use the ‘Transfer to Generator‘ button. The module automatically
instructs the generator to synchronise and once in sync, to be place the generator on
load (‘Close Generator Output’ becomes active). To place the generator off load, use the
‘Open Generator‘ button. The module automatically ramps the load off the generator and
then takes it off load (‘Close Generator Output’ becomes inactive). Additional digital inputs
are available to perform these functions. If the generator is running off-load in MANUAL
mode and on load signal becomes active, the module automatically instructs the generator
to synchronise and once in sync, to be place the generator on load (‘Close Generator
Output’ becomes active). Upon removal of the on load signal, the generator remains on
load until either selection of the ‘STOP/RESET’ mode or ‘AUTO’ mode.

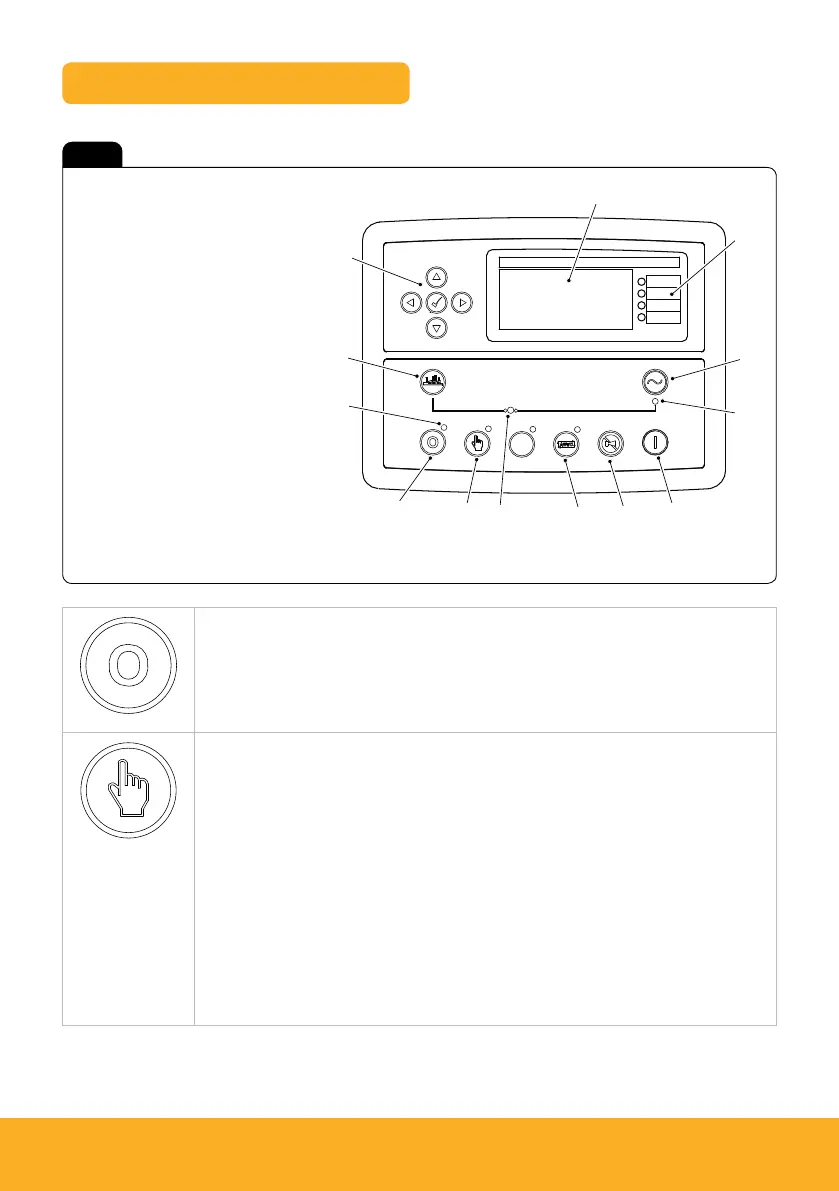

A Module display
B Four configurable status LED
C Close generator
D Generator available LED
E Start button
F Alarm mute and lamp test
G Auto mode
H Generator breaker LED
J Manual mode
K Stop/reset button
L Selected mode indication LED
M Open generator (manual mode
only)
N Module display Menu
navigation buttons
A
B
C
E
F
G
H
J
K
M
L
N
D
