Cross cut 90° and turntable 0° - 45° (Fig. 8)
The crosscut saw can be used to make
crosscuts of 0° -45° to the left and 0° -45° to
the right in relation to the stop rail.
Important. To make 90° crosscuts, the
adjustable extention block (16a) must be fixed
at the inner position.
• Open the set screw (16b) for the adjustable stop
rail and push the adjustable stop rail inwards.
• The extention block (16a) must be fixed
far enough in front of the innermost position
that the distance between the extention block
(16a) and the saw blade (6) amounts to a
maximum of 8 mm.
• Before making a cut, check that the extention
block (16a) and the saw blade (6) cannot
collide.
• Secure the set screw (16b) again.
• Loosen set screw (26).
• Use the handle (11) to adjust the turntable
(14) to the desired angle. The pointer (12)
on the rotary table must match the desired
angle on the scale (13) on the fixed saw
table (15).
• Re-tighten the set screw (26) in order to
secure the turntable (14).
• Cut as described under section “Cross cut
90° and turntable 0°”.
Precision adjustment of the stop for
mitre cut 45° (Fig. 1/9/10)
• No stop angle included.
• Lower the machine head (4) and secure
using the fastening bolt (23).
• Fix the turntable (14) in the 0° position.
• Loosen the locking screw(22) and use the handle
(1) to angle the machine head (4) 45° to the left.
• 45° - position angle stop between the saw
blade (6) and turntable (14).

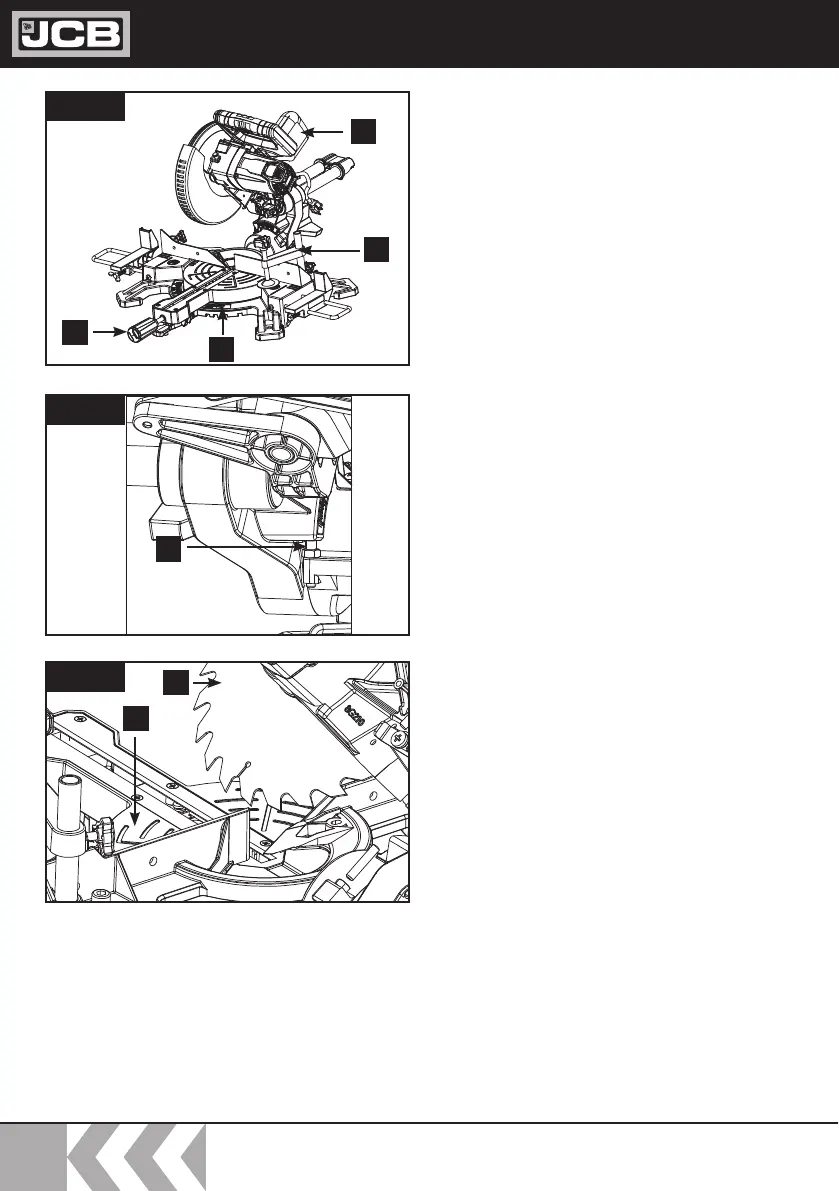

Fig.8
