Attachment and operation
For your own safety, only insert the mains
plug in an outlet when all assembly steps
have been completed and you have read
and understood the safety and operating
instructions.
Lift the saw out of the packaging and place
it on your work bench. (Positioning of the
saw on the work bench - see the next page
under „POSITIONING / WORK STATION“)
WARNING!

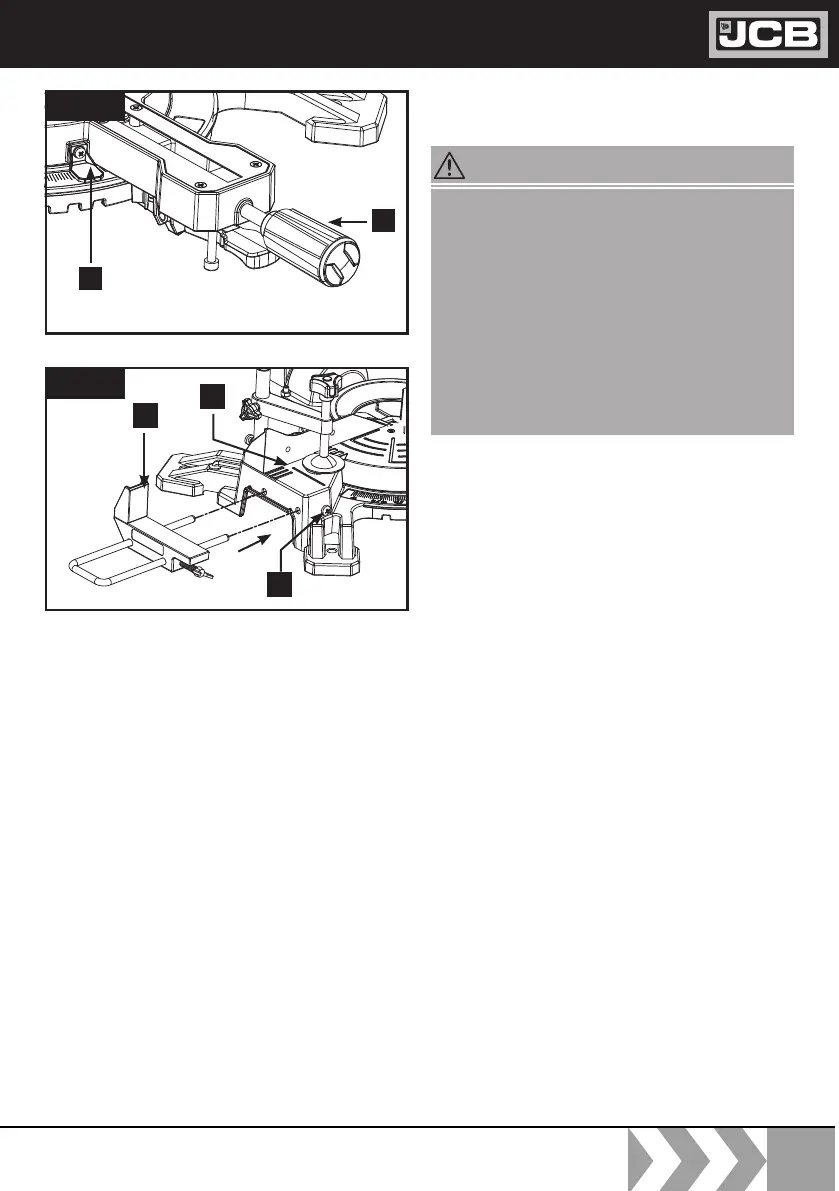

Attaching the saw (Fig1/2/3/4)
• In order to adjust the turntable (14)
loosen the set screw (26) approx. 2 turns.
• Turn the turn table (14) and pointer (12) to
the desired angle measurement on the scale
(13) and secure with the set screw (26).
• Pressing the machine head (4) lightly
downwards and removing the fastening
bolt (23) from the motor bracket at the
same time disengages the saw from the
lowest position.
• Swing the machine head (4) up until the
release button (3) latches into place.
• It is possible to secure the clamping device
(7) to the left or right on the fixed saw table
(15). Insert the clamping device (7) in the
hole on the rear side of the stop rail (16)
and secure it with the star grip screw (7a).
• Attach the workpiece supports (8) to the
fixed saw table (15) as shown in Figure 4
and fasten with the screw (9).
• It is possible to tilt the machine head (4) a
max. 45° to the left by loosening the
locking screw (22).
26
8
15
9
Fig.3
Fig.4
12
17
